FUEL COCK (GSX1100X / EX)

GSX1100E 1981 (X) GENERAL EXPORT (E01)

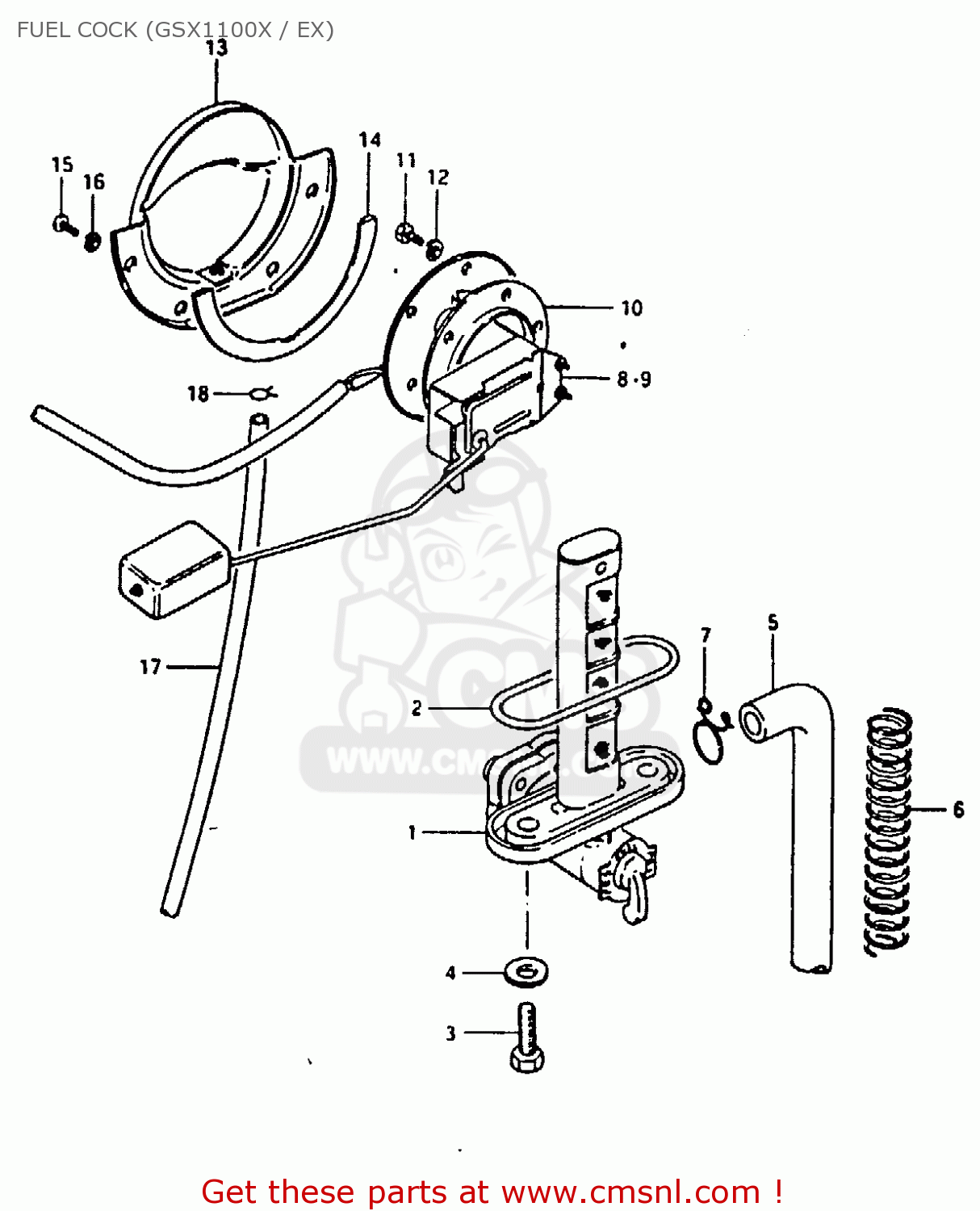

Fuel cock (gsx1100x / ex) diagram GSX1100E 1981 (X) GENERAL EXPORT (E01)

FUEL COCK (GSX1100X / EX) GSX1100E 1981 (X) GENERAL EXPORT (E01)
FUEL COCK (GSX1100X / EX) GSX1100E 1981 (X) GENERAL EXPORT (E01)
FUEL COCK (GSX1100X / EX) GSX1100E 1981 (X) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
4430034470
ref: 1
COCK ASSEMBLY,FUEL
€ 104.50
2
4434849170
ref: 2
O RING
4434849170
€ 3.50
3
0912806024
ref: 3
SCREW (6X25)
0912806024
€ 2.50
4
0916806010
ref: 4
GASKET
0916806010
€ 2.00
5
0934307091
ref: 5
HOSE
€ 17.50
6
0944013020
ref: 6
SPRING
€ 14.50
7
0940110403
ref: 7
CLIP
0940110403
€ 7.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
3481049211
ref: 9
GSX1100EX:E2, E4, E6
GAUGE, FUEL LEVEL (24L)
3481049211
€ 70.00
10
3482549001
ref: 10
GASKET,FUEL LEVEL GAUGE (NAS)
3482549001
€ 22.50
11
0110405108
ref: 11
BOLT
€ 1.50
12
0832121058
ref: 12
LOCK WASHER
0832121058
€ 2.00
13
3488549002
ref: 13
PLATE,FUEL DRAIN
€ 21.00
14
3488849000
ref: 14
GASKET,FUEL DRAIN PLATE (NAS)
3488849000
€ 15.00
15
0211205088
ref: 15
SCREW
0211205088
€ 2.00
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
17
0934205165
ref: 17
HOSE
€ 0.00
18
0940108402
ref: 18
CLIP
0940108402
€ 1.50
