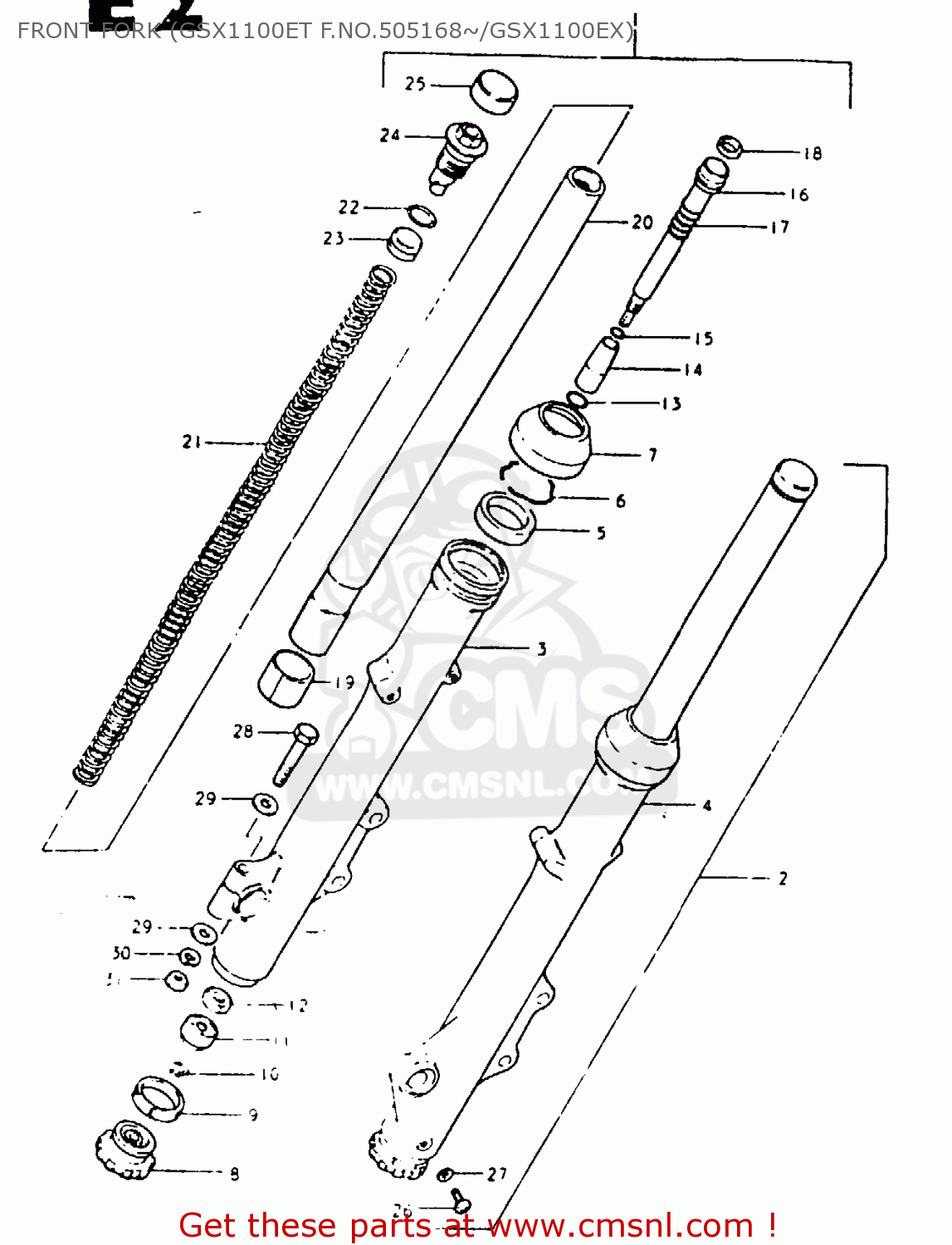

FRONT FORK (GSX1100ET F.NO.505168~/GSX1100EX)

ref

part #

description

quantity

1

5110349211
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110449211
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113049200
ref: 3

OUTER TUBE, RH

€ 204.00

4

5114049200
ref: 4

OUTER TUBE, LH

€ 179.00

5

5115349000
ref: 5

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5117349002
ref: 7

SEAL,DUST

€ 13.00

8

5128649200
ref: 8

HANDLE

€ 56.00

9

5128749200
ref: 9

RING

€ 12.50

10

5128549200
ref: 10

CIRCLIP

€ 2.00

11

5128449200
ref: 11

DETENT

€ 27.50

12

5114749200
ref: 12

NUT

€ 8.50

13

5114849200
ref: 13

O RING

€ 4.50

14

5119549200
ref: 14

PIECE, OIL LOCK

€ 16.50

15

5119949200
ref: 15

O RING

€ 2.50

16

5114649211
ref: 16

CYLINDER

€ 85.50

17

5117749200
ref: 17

SPRING,FORK REBOUND

€ 7.00

18

5119649000
ref: 18

RING,PISTON

€ 9.00

19

5112149200
ref: 19

PISTON

€ 18.00

20

5111049210
ref: 20

INNER TUBE

€ 245.00

21

5117149211
ref: 21

SPRING

€ 0.00

22

5111745110
ref: 22

O-RING

€ 4.00

23

5117245110
ref: 23

PISTON,FREE

€ 10.50

24

5135149200
ref: 24

CAP

€ 59.00

25

5118945110
ref: 25

CAP

€ 9.00

26

0211204088
ref: 26

SCREW

€ 1.50

27

5118303010
ref: 27

GASKET,DRAIN,PLUG (NAS)

€ 3.00

28

0110708508
ref: 28

BOLT 8X50

€ 3.00

29

0832221088
ref: 29

WASHER

€ 2.00

30

0832131088
ref: 30

WASHER,LOCK,8.

€ 2.00

31

0831012088
ref: 31

NUT

€ 2.00
