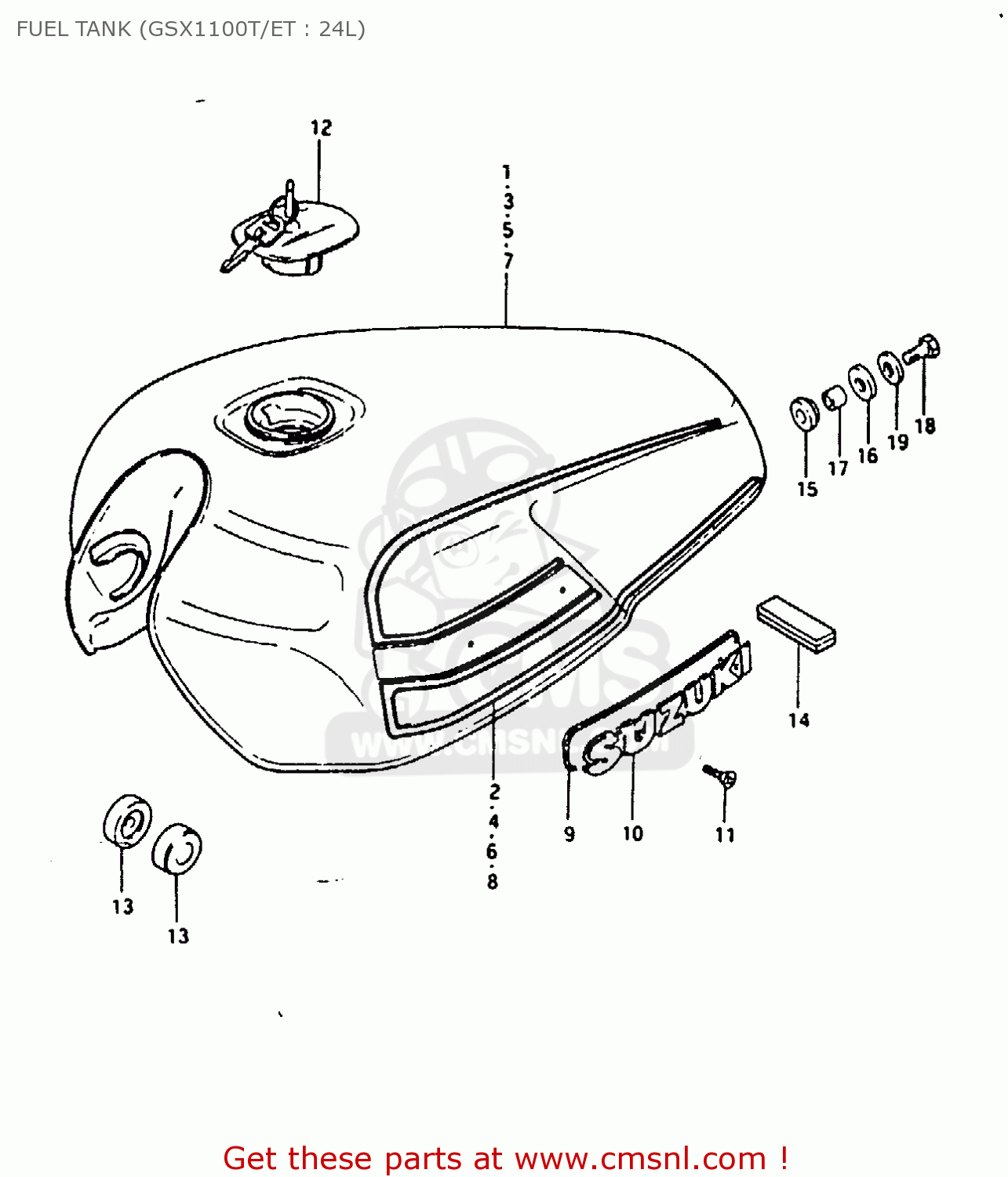

FUEL TANK (GSX1100T/ET : 24L)

GSX1100E 1981 (X) GENERAL EXPORT (E01)

Fuel tank (gsx1100t/et : 24l) diagram GSX1100E 1981 (X) GENERAL EXPORT (E01)

FUEL TANK (GSX1100T/ET : 24L) GSX1100E 1981 (X) GENERAL EXPORT (E01)

FUEL TANK (GSX1100T/ET : 24L) GSX1100E 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

441004922008E
ref: 1

TANK, FUEL (BLACK)

€ 655.50

2

681104922062F
ref: 2

TAPE SET

€ 54.50

3

4410049220737
ref: 3

TANK, FUEL (SILVER)

€ 655.50

4

681104922072A
ref: 4

TAPE SET

€ 0.00

5

441004922007P
ref: 5

TANK, FUEL (RED)

€ 655.50

6

6811049220998
ref: 6

TAPE SET

€ 70.00

7

441004922005H
ref: 7

TANK, FUEL (BLUE)

€ 655.50

8

6811049220998
ref: 8

TAPE SET

€ 70.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

6811145010
ref: 10

EMBLEM,FUEL TANK

€ 26.00

11

0213203065
ref: 11

SCREW 3X6

€ 2.00

12

4420049701
ref: 12

CAP SET,FUEL TANK

€ 121.00

13

0932910007
ref: 13

CUSHION

€ 3.00

14

0932901005
ref: 14

CUSHION

€ 11.50

15

0932012010
ref: 15

CUSHION

€ 3.00

16

0932012023
ref: 16

CUSHION

€ 2.50

17

0918008067
ref: 17

SPACER(8.5X12X19)

€ 2.50

18

0110708308
ref: 18

BOLT (8X30)

€ 2.50

19

0916008002
ref: 19

WASHER (8.5X29X1.6)

€ 2.00
