COWLING (GSX1100ESE)

GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

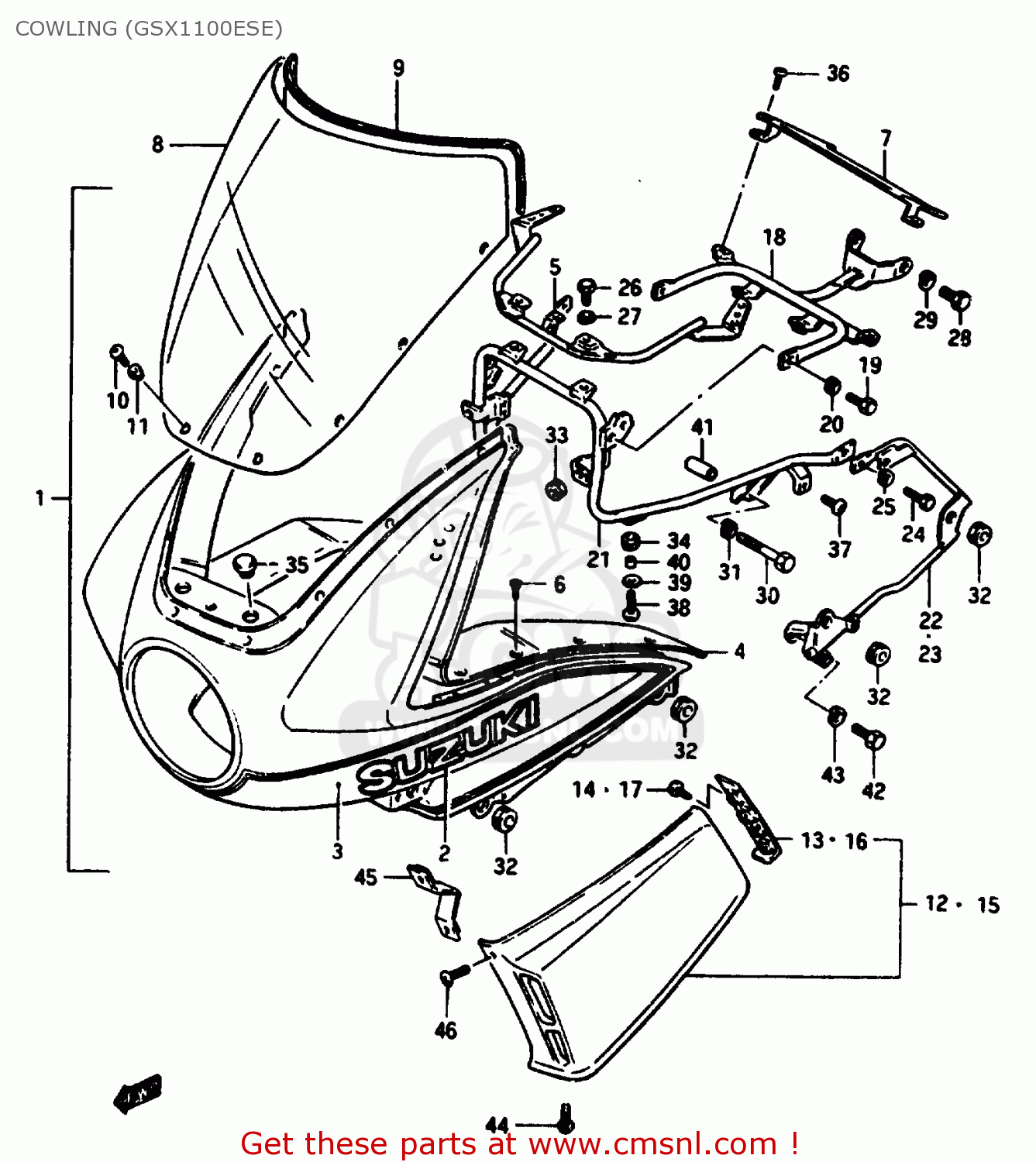

Cowling (gsx1100ese) diagram GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

COWLING (GSX1100ESE) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
COWLING (GSX1100ESE) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
COWLING (GSX1100ESE) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1-1
9440000A0187P
ref: 1-1
SEE NOTE
COWLING ASSY (WHITE/RED)
€ 1,245.00
1-2
9440000A017DP
ref: 1-2
SEE NOTE
COWLING ASSY
€ 1,245.00
2-1
6811100A1060D
ref: 2-1
FOR 87P
EMBLEM
6811100A1060D
€ 22.00
2-2
6811100A1071L
ref: 2-2
FOR 70P
EMBLEM
€ 18.50
3-1
6819000A107EE
ref: 3-1
FOR 87P
TAPE SET
€ 0.00
3-2
6819000A107EF
ref: 3-2
FOR 70P
TAPE SET
€ 0.00
4
9442000A00
ref: 4
PANEL,COWLING
€ 75.00
5
9456000A00
ref: 5
BRACE,COWLING BODY
9456000A00
€ 35.00
6
0323104104
ref: 6
SCREW, PANEL
0323104104
€ 2.00
7
9442600A00
ref: 7
COVER,METER,REAR
€ 26.00
8-1
9461100A00
ref: 8-1
WINDOW,COWLING
9461100A00
€ 464.50
8-2
9461100A20
ref: 8-2
E17
SCREEN
€ 393.50
9-1
9463100A00
ref: 9-1
MOLDING COWLING
€ 18.00
9-2
9463100A10
ref: 9-2
E17
MOLDING
€ 14.00
10
0913905023
ref: 10
SCREW(5X20)
0913905023
€ 2.00
11
0932005008
ref: 11
CUSHION
0932005008
€ 5.00
12-1
9443000A0116D
ref: 12-1
FOR 87P, SEE NOTE
COVER, RH (WHITE)
9443000A0116D
€ 166.50
12-2
9443000A0121J
ref: 12-2
FOR 70P, SEE NOTE
COVER,COWLING
€ 166.50
13
9443200A00
ref: 13
PANEL,COWL SIDE COVER RR RH
9443200A00
€ 8.00
14
0354104126
ref: 14
SCREW
0354104126
€ 1.50
15-1
9444000A0116D
ref: 15-1
FOR 8P, SEE NOTE
COVER, LH (WHITE)
€ 120.50
15-2
9444000A0121J
ref: 15-2
FOR 70P, SEE NOTE
COVER, LH (SILVER)
€ 120.50
16
9444200A00
ref: 16
PANEL,COWLING SIDE COVER
9444200A00
€ 7.50
17
0354104126
ref: 17
SCREW
0354104126
€ 1.50
18
9451000A00
ref: 18
BRACE,COWLING,FRONT
9451000A00
€ 45.00
19
0110706205
ref: 19
BOLT
0110706205
€ 2.00
20
0832121065
ref: 20
LOCK WASHER
€ 2.00
21
9452000A00
ref: 21
BRACE,COWL RR
9452000A00
€ 118.00
22
9453000A00
ref: 22
BRACE,COWLING SIDE,RIGHT
€ 27.50
23
9454000A00
ref: 23
BRACE,COWLING SIDE,LEFT
€ 27.50
24
0110706165
ref: 24
BOLT 6X16
0110706165
€ 2.00
25
0832121065
ref: 25
LOCK WASHER
€ 2.00
26
0110706205
ref: 26
BOLT
0110706205
€ 2.00
27
0832121065
ref: 27
LOCK WASHER
€ 2.00
28
0110708165
ref: 28
BOLT
€ 2.00
29
0832121085
ref: 29
LOCK WASHER
€ 2.50
30
0110708505
ref: 30
BOLT
€ 3.00
31
0832121085
ref: 31
LOCK WASHER
€ 2.50
32
0932008018
ref: 32
CUSHION
0932008018
€ 4.00
33
0932008013
ref: 33
CUSHION
0932008013
€ 4.00
34
0932009016
ref: 34
CUSHION
0932009016
€ 2.50
35
0925018003
ref: 35
PLUG(OD:22)
0925018003
€ 2.00
36
0214205105
ref: 36
SCREW
0214205105
€ 2.50
37
0214206125
ref: 37
SCREW 6X12
0214206125
€ 2.00
38
0214206205
ref: 38
SCREW, CENTER
0214206205
€ 2.00
39
0916006056
ref: 39
WASHER(6.5X18X1)
0916006056
€ 2.00
40
0918006011
ref: 40
SPACER (6.1X9X9)
0918006011
€ 2.00
41
0918008091
ref: 41
SPACER (8.6X13.8X35)
€ 3.00
42
0711008165
ref: 42
BOLT
€ 3.00
43
0832121085
ref: 43
LOCK WASHER
€ 2.50
44
0913905029
ref: 44
SCREW
0913905029
€ 1.50
45
9455000A00
ref: 45
BRACE,SIDE,FRONT
9455000A00
€ 4.00
46
0214206167
ref: 46
SCREW
0214206167
€ 2.00
