CUSHION LEVER

GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

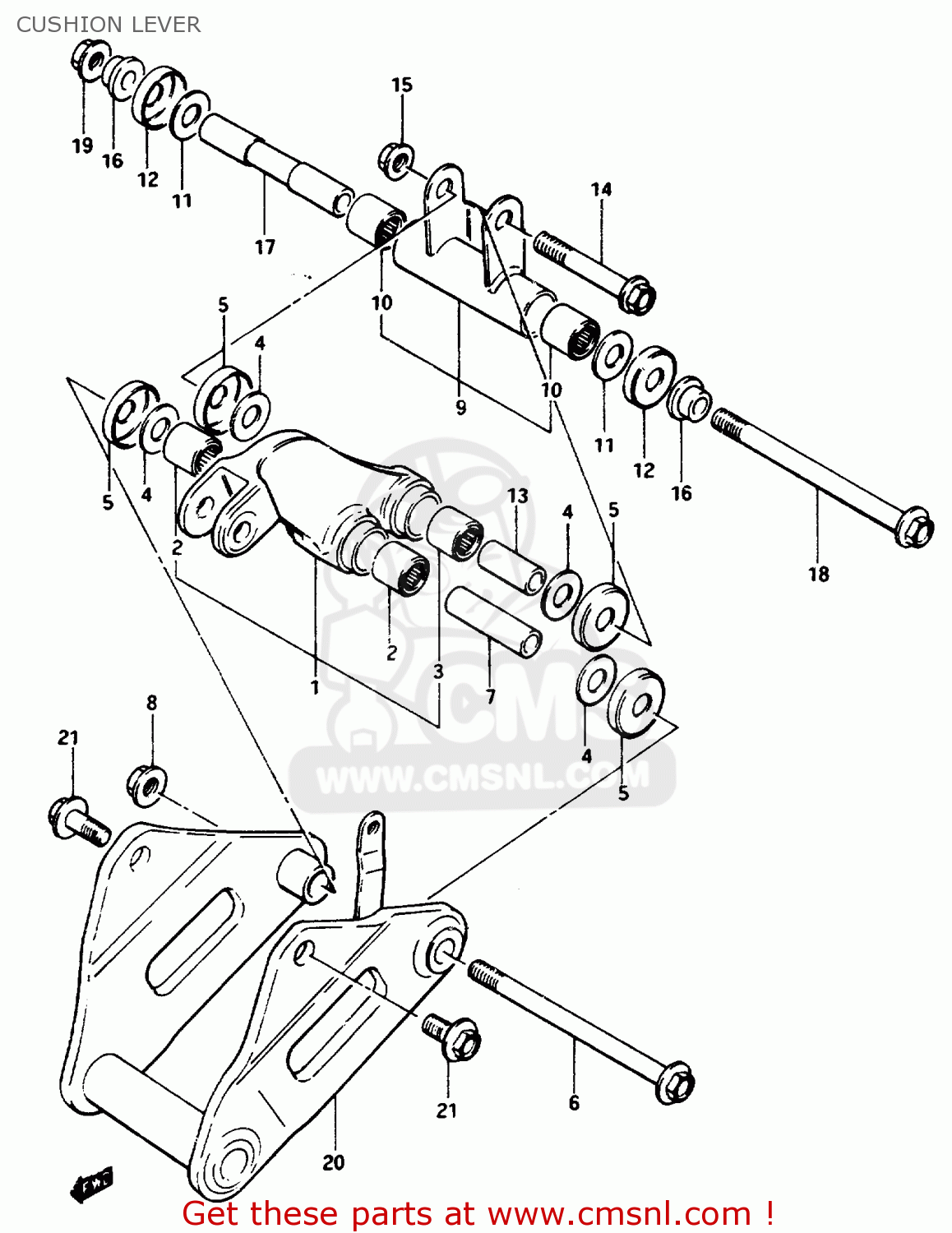

Cushion lever diagram GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

CUSHION LEVER GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
CUSHION LEVER GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
CUSHION LEVER GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1
6260000810
ref: 1
LEVER SET,REAR CUSHION
6260000810
€ 354.00
2
0926317011
ref: 2
ROLLER BEARING (17X24X2
0926317011
€ 13.50
3
0926317020
ref: 3
ROLLER BEARING (17X24X25)
0926317020
€ 19.00
4
0821112281
ref: 4
WASHER
0821112281
€ 2.00
5
6126241500
ref: 5
COVER,RR SWGARM DUST SEAL
6126241500
€ 7.50
6
6265731301
ref: 6
BOLT,CUSHION ROD
6265731301
€ 19.00
7
6262300A00
ref: 7
SPACER,REAR CUSHION LEVER
6262300A00
€ 24.00
8
0831931125
ref: 8
NUT 12MM
€ 3.00
9
6260000820
ref: 9
ROD SET,REAR CUSHION,LEFT
€ 59.50
10
0926317011
ref: 10
ROLLER BEARING (17X24X2
0926317011
€ 13.50
11
0821112281
ref: 11
WASHER
0821112281
€ 2.00
12
6126241500
ref: 12
COVER,RR SWGARM DUST SEAL
6126241500
€ 7.50
13
6264615500
ref: 13
SPACER,RR CUSHION LEVER ROD UP
6264615500
€ 11.50
14
6264815500
ref: 14
BOLT, UPPER
€ 7.00
15
0831931125
ref: 15
NUT 12MM
€ 3.00
16
6262600A00
ref: 16
SPACER,REAR CUSHION ROD
€ 9.00
17
6265615500
ref: 17
SPACER,RR CUSHION LVR ROD LOW
6265615500
€ 187.00
18
6265731301
ref: 18
BOLT,CUSHION ROD
6265731301
€ 19.00
19
0831931125
ref: 19
NUT 12MM
€ 3.00
20
6241000A00
ref: 20
BRACKET,REAR SHOCK ABSORBER
6241000A00
€ 76.00
21
6241300A00
ref: 21
BOLT,REAR SHOCK ABSORBER BRACKET
€ 3.50
