CRANKCASE (~E.102247)

GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

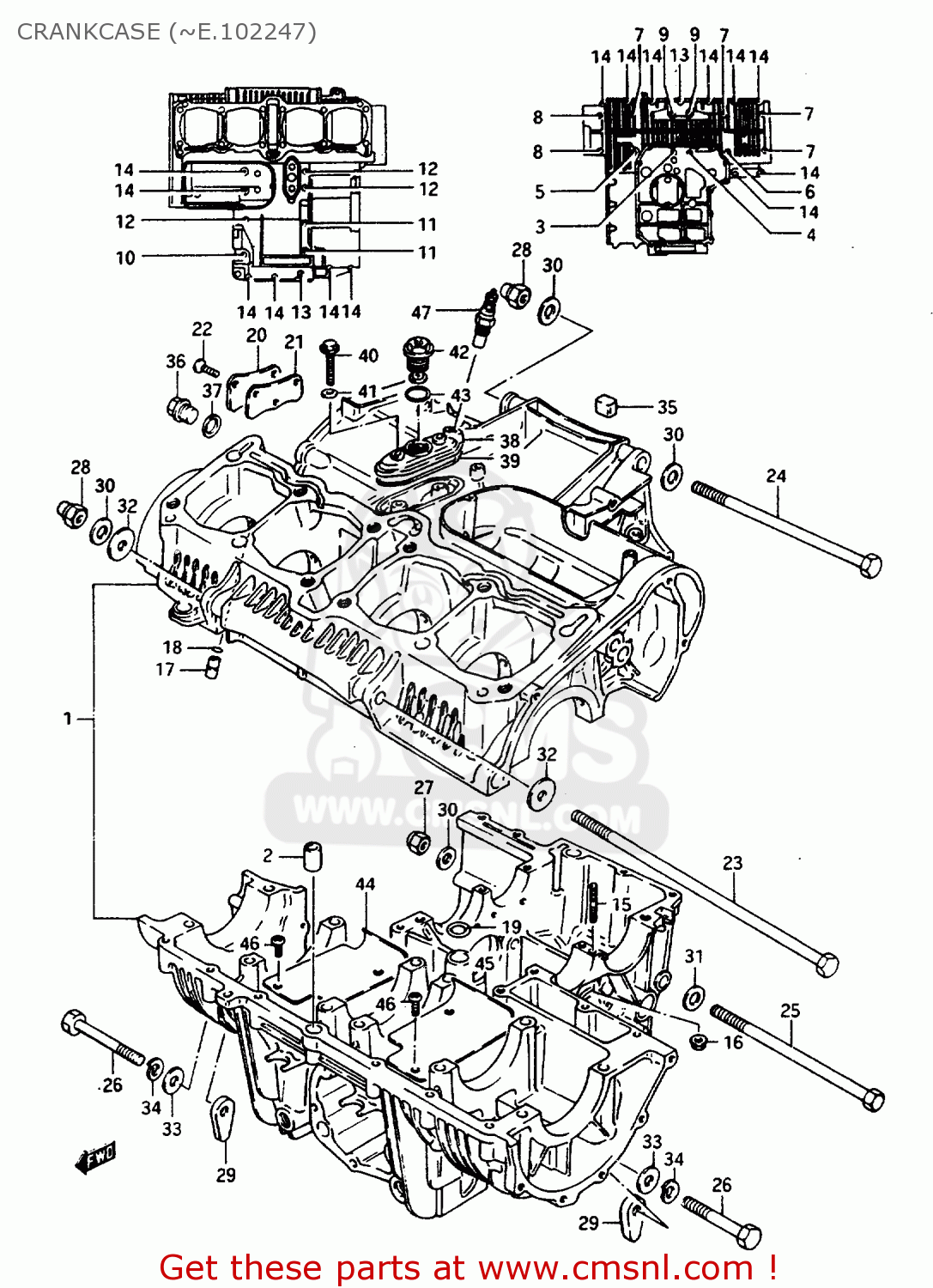

Crankcase (~e.102247) diagram GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

CRANKCASE (~E.102247) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
CRANKCASE (~E.102247) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
CRANKCASE (~E.102247) GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1
1130000812
ref: 1
CRANKCASE SET
€ 2,259.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308137
ref: 3
BOLT
0910308137
€ 3.50
4
0910308038
ref: 4
BOLT(8X135)
0910308038
€ 4.00
5
0910308098
ref: 5
BOLT(8X115)
0910308098
€ 3.00
6
0910308070
ref: 6
BOLT(8X100)
0910308070
€ 5.00
7
0151708905
ref: 7
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
BOLT 8X60
€ 3.50
10
0151708504
ref: 10
BOLT, UPPER
€ 2.50
11
0151706855
ref: 11
BOLT
€ 2.50
12
0151706755
ref: 12
BOLT (6X75)
€ 2.50
13
0151706555
ref: 13
BOLT 6X55
€ 2.00
14
0151706404
ref: 14
BOLT
0151706404
€ 2.00
15
0142106508
ref: 15
STUD 6X50
€ 2.00
16
0915906017
ref: 16
NUT
0915906017
€ 2.50
17
0936405005
ref: 17
UNION
0936405005
€ 3.00
18
0928003003
ref: 18
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
19
0928013001
ref: 19
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
20
1139445000
ref: 20
CAP,OIL GALLERY
1139445000
€ 6.50
21
1149745000
ref: 21
GASKET,OIL GALLERY (MCA)
1149745000
€ 13.00
22
0212206168
ref: 22
SCREW
0212206168
€ 2.00
23
0910410028
ref: 23
BOLT
€ 0.00
24
0910410025
ref: 24
BOLT 10X180
0910410025
€ 4.00
25
0910010078
ref: 25
BOLT(10X165)
0910010078
€ 10.50
26
0910410015
ref: 26
BOLT 10X60
€ 3.00
27
0915910028
ref: 27
NUT (10MM)
€ 2.50
28
0915910039
ref: 28
NUT
0915910039
€ 8.50
29
0915910020
ref: 29
NUT
0915910020
€ 7.50
30
0832211105
ref: 30
WASHER
€ 2.50
31
0832211108
ref: 31
WASHER
€ 2.50
32
0916010084
ref: 32
WASHER
€ 3.50
33
0916010063
ref: 33
WASHER (10.5X20X3.2)
€ 2.00
34
0832131108
ref: 34
LOCK WASHER
€ 2.00
35
1125225000
ref: 35
PAD,CYLINDER
1125225000
€ 5.00
36
0924714012
ref: 36
PLUG (14X12)
0924714012
€ 3.50
37
0916814004
ref: 37
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
38
1644549010
ref: 38
HOUSING,OIL PRESSURE SWITCH
€ 20.00
39
1644845000
ref: 39
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
40
0151706254
ref: 40
BOLT
€ 2.50
41
0916806015
ref: 41
WASHER
0916806015
€ 2.00
42
3782045060
ref: 42
SWITCH ASSEMBLY
3782045060
€ 30.00
43
0928019001
ref: 43
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
44
1152149200
ref: 44
PLATE,OIL SEPARATOR
€ 5.50
45
1152249200
ref: 45
PLATE,OIL SEPARATOR
€ 4.50
46
0211206088
ref: 46
SCREW
€ 2.00
47
3487031300
ref: 47
GAUGE ASSEMBLY,OIL TEMPERATURE
3487031300
€ 121.00
