Buy Suzuki GSX Parts Online


GEAR SHIFTING

GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

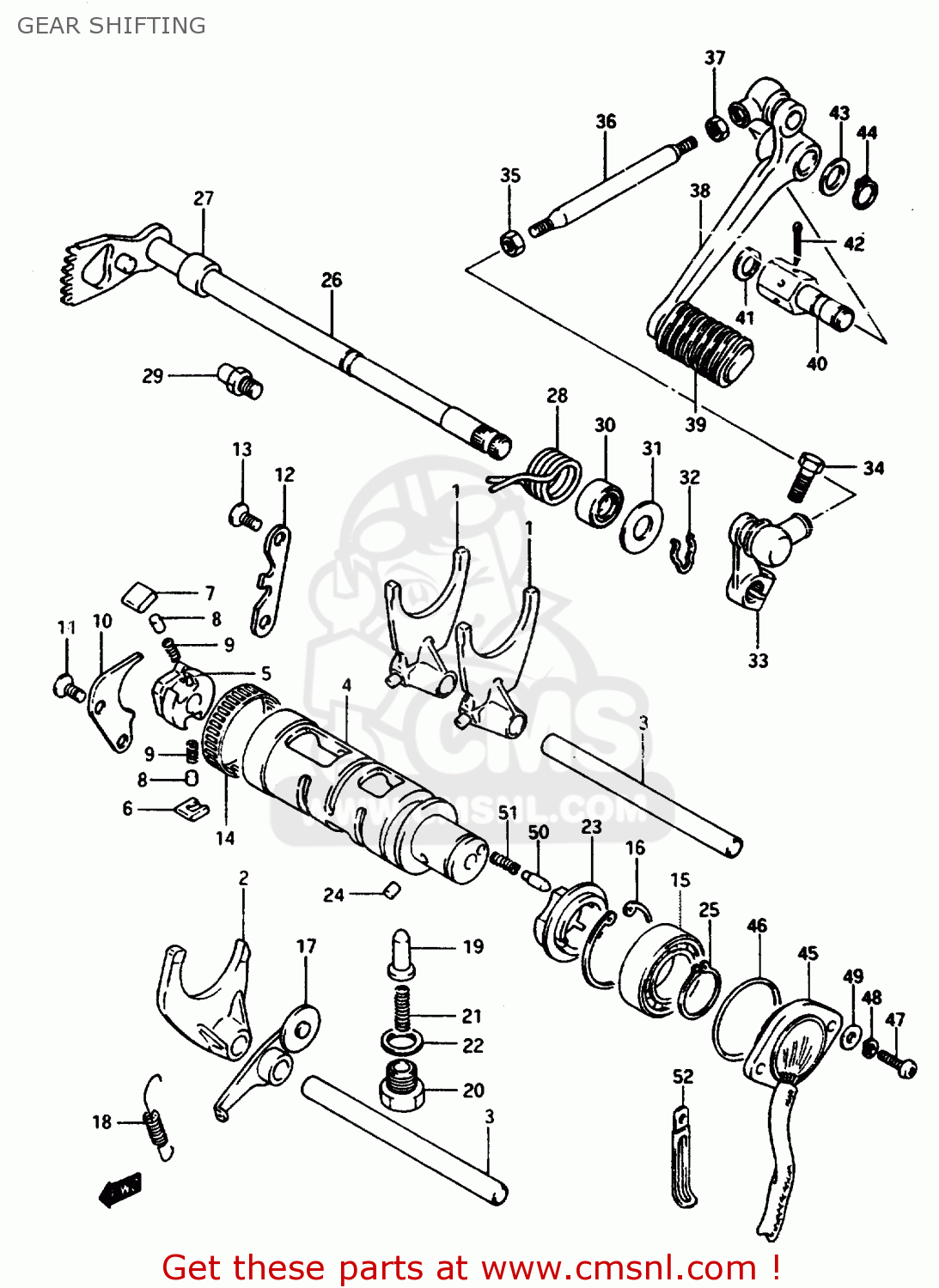

Gear shifting diagram GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

GEAR SHIFTING GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
GEAR SHIFTING GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
GEAR SHIFTING GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
2521149200
€ 87.00
2
2523149201
ref: 2
FORK,GEAR SHIFT NO.2
2523149201
€ 106.00
3
2541133300
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531049200
ref: 4
CAM,GEAR SHIFT
€ 161.50
5
2532231301
ref: 5
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
6
2532334200
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
2533149200
€ 43.50
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0926343001
ref: 14
BEARING(43X49X12)
0926343001
€ 30.00
15
0811069050
ref: 15
BALL BEARING
0811069050
€ 36.00
16
0833141428
ref: 16
CIRCLIP,42MM
€ 1.50
17
2535000A00
ref: 17
STOPPER,GEAR SHIFTING CAM
€ 0.00
18
0944308019
ref: 18
SPRING
0944308019
€ 2.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006020
ref: 21
SPRING
0944006020
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
23
2538149200
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538149200
€ 19.00
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0833131258
ref: 25
CIRCLIP,25MM
€ 2.00
26
2551000A00
ref: 26
SHAFT,GEAR SHIFT
2551000A00
€ 86.00
27
0918012068
ref: 27
SPACER(12X20X15.3)
0918012068
€ 3.00
28
0944426017
ref: 28
SPRING
0944426017
€ 5.00
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928512002
ref: 30
OIL SEAL
0928512002
€ 7.00
31
0916012020
ref: 31
WASHER (12.5X27X1.6)
0916012020
€ 2.00
32
0938412001
ref: 32
SPRING,RETAINER
0938412001
€ 2.00
33
2552047020
ref: 33
ARM,GEAR SHIFT LINK
2552047020
€ 53.50
34
0110706208
ref: 34
BOLT
0110706208
€ 2.00
35
0831011068
ref: 35
NUT
0831011068
€ 2.50
36-1
2552533400
ref: 36-1
ROD,GEAR SHIFT LINK
2552533400
€ 12.00
36-2
2552500A01
ref: 36-2
ROD,GEAR SHIFT LINK
2552500A01
€ 12.00
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
2560000A01
ref: 38
LEVER ASSEMBLY,GEAR SHIFTING
2560000A01
€ 66.50
39
2565249300
ref: 39
RUBBER,PEDAL
2565249300
€ 5.50
40
2561700A02
ref: 40
SHAFT,GEAR SHIFT LEVER
2561700A02
€ 7.00
41
0916410005
ref: 41
WASHER
0916410005
€ 6.50
42
0411125258
ref: 42
COTTER PIN
€ 1.50
43
0916012011
ref: 43
WASHER(12.5X20X1)
0916012011
€ 1.50
44
0833131128
ref: 44
CIRCLIP
0833131128
€ 2.00
45
3772049211
ref: 45
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 78.50
46
0928036001
ref: 46
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
47
0912505102
ref: 47
SCREW(5X14)
0912505102
€ 2.50
48
0832121058
ref: 48
LOCK WASHER
0832121058
€ 2.00
49
0832221058
ref: 49
WASHER
€ 2.50
50
0920905011
ref: 50
PIN(5X15.5)
0920905011
€ 2.00
51
0944004010
ref: 51
SPRING
0944004010
€ 1.50
52
0940406401
ref: 52
MODEL F/G
CLAMP L:35
0940406401
€ 2.50
