REAR SHOCK ABSORBER

GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

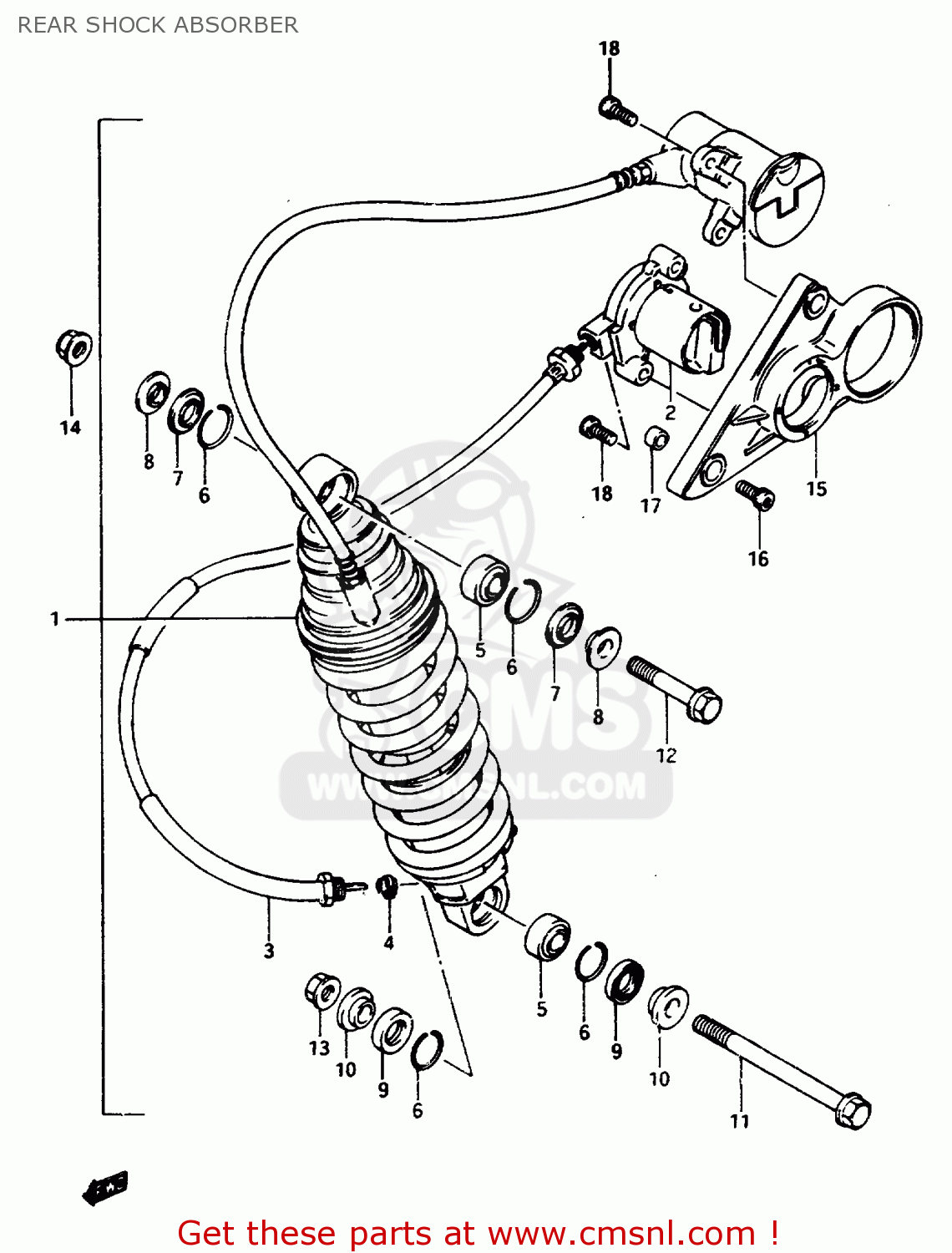

Rear shock absorber diagram GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

REAR SHOCK ABSORBER GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

REAR SHOCK ABSORBER GSX1100E 1986 (G) UNITED KINGDOM GERMANY (E02 E22)

prices are in EUR

ref

part #

description

quantity

1-1

6210000A00
ref: 1-1
GSX1100EE

SHOCK ABSORBER, REAR

€ 1,281.00

1-2

6210000A01
ref: 1-2
GSX1100EF/EG

SHOCK ABSORBER, REAR

€ 1,281.00

1-3

6210000A20
ref: 1-3
GSX1100ESE/EFE

SHOCK ABSORBER, REAR

€ 1,281.00

1-4

6210000A21
ref: 1-4
GSX1100ESF/EFF/ESG/E

ABSORBER ASSY,

€ 1,281.00

2

6235000A00
ref: 2

ADJUSTER

€ 110.50

3

6235800A00
ref: 3

CABLE,CONTROL

€ 80.00

4

6235533300
ref: 4

GEAR,DAMPER ADJUSTER

€ 0.00

5

6217543400
ref: 5

BEARING,REAR SHOCK ABSORBER

€ 66.00

6

6227714200
ref: 6

RING

€ 1.50

7

6222600A00
ref: 7

SEAL,DUST UPR

€ 8.00

8

6268400A00
ref: 8

COLLAR,UPR

€ 13.00

9

6222643410
ref: 9

SEAL,DUST

€ 7.50

10

6268443401
ref: 10

SPACER

€ 7.00

11

0910310063
ref: 11

BOLT(10X115)

€ 5.00

12

0910310064
ref: 12

BOLT(10X50)

€ 4.50

13

0831931105
ref: 13

NUT 10MM

€ 3.00

14

0831931108
ref: 14

NUT

€ 3.00

15-1

6236100A10
ref: 15-1
GSX1100EE/EF/EG

BRACKET

€ 0.00

15-2

6236100A00
ref: 15-2
GSX1100ESE/EFE/ESF/E

BRACKET

€ 0.00

16

0711006305
ref: 16

BOLT

€ 3.00

17

0918006010
ref: 17

SPACER(6.5X12X6.9)

€ 2.50

18

0711006166
ref: 18

BOLT

€ 2.50
