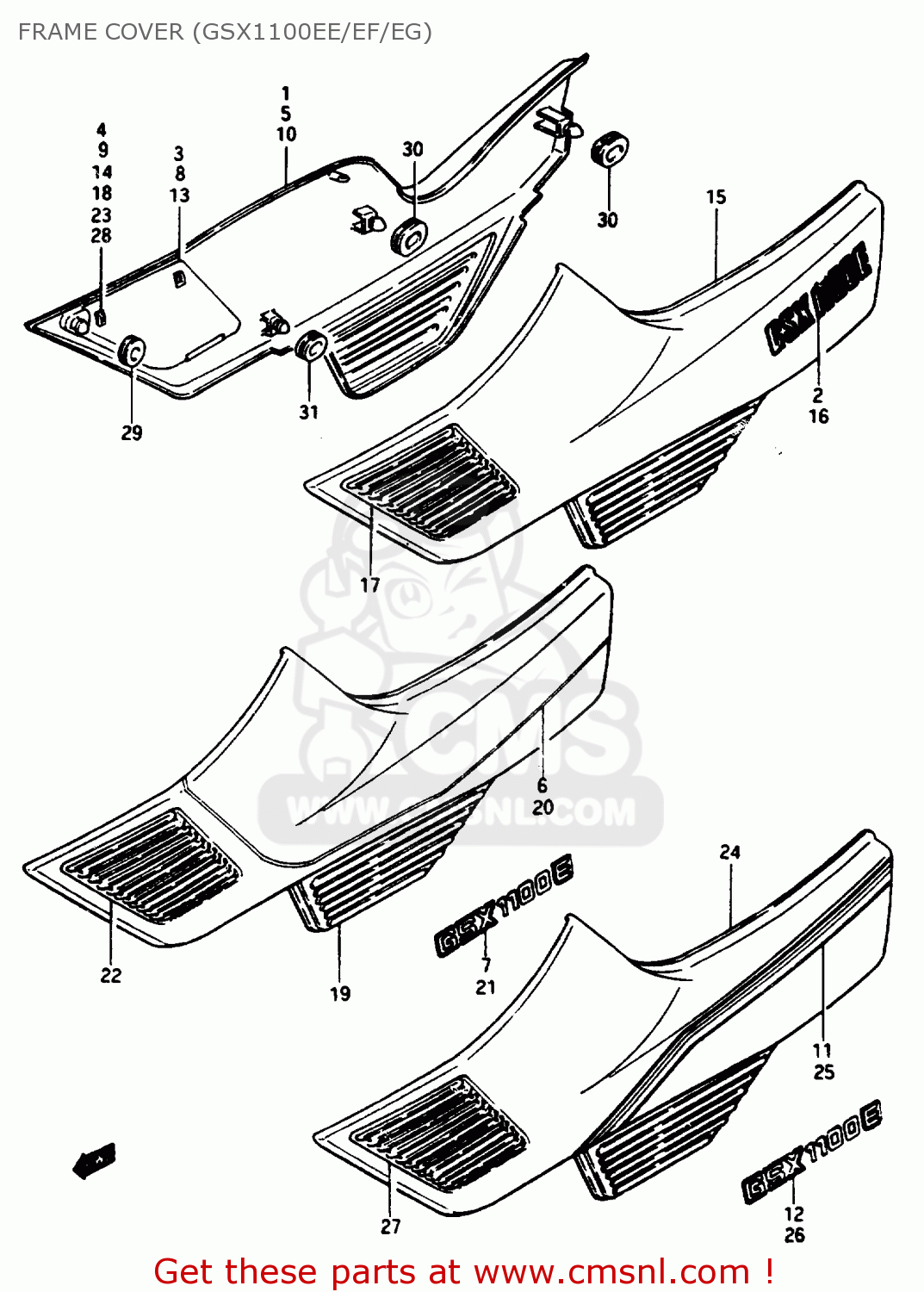

FRAME COVER (GSX1100EE/EF/EG)

ref

part #

description

quantity

1

4710000A1017R
ref: 1
MODEL E

COVER, FRAME RH (RED)

€ 189.50

2

681314950060K
ref: 2
MODEL E

EMBLEM

€ 23.50

3

4711200A00019
ref: 3
MODEL E

COVER,FRAME,RIGHT

€ 22.50

4

0914803002
ref: 4

NUT

€ 3.00

5-1

4710000A707JK
ref: 5-1
MODEL F

COVER, FRAME RH

€ 189.50

5-2

4710000A707JH
ref: 5-2
MODEL F

COVER, FRAME RH

€ 189.50

6-1

6813000A107JL
ref: 6-1
MODEL F,FOR 7JK

TAPE SET,FRAME COVER,RIGHT

€ 0.00

6-2

6813000A107JF
ref: 6-2
MODEL F,FOR 7JH

TAPE SET,FRAME COVER,RIGHT

€ 0.00

7-1

6813200A107JS
ref: 7-1
MODEL F,FOR 7JH

EMBLEM

€ 10.50

7-2

6813200A107JT
ref: 7-2
MODEL F,FOR 7JH

EMBLEM

€ 0.00

8-1

4711200A00019
ref: 8-1
MODEL F,FOR 7JK

COVER,FRAME,RIGHT

€ 22.50

8-2

4711200A0012F
ref: 8-2
MODEL F,FOR 7JH

COVER,FRAME,RIGHT

€ 22.50

9

0914803002
ref: 9

NUT

€ 3.00

10-1

4760000A607JJ
ref: 10-1
MODEL G

COVER, FRAME RH

€ 189.50

10-2

4760000A607JK
ref: 10-2
MODEL G

COVER, FRAME RH

€ 189.50

11-1

6813000A808BV
ref: 11-1
MODEL G,FOR 7JJ

TAPE SET, FRAME COVER RH

€ 0.00

11-2

6813000A807JL
ref: 11-2
MODEL G,FOR 7JK

TAPE SET, FRAME COVER RH

€ 10.50

12-1

6813200A108EJ
ref: 12-1
MODEL G,FOR 7JJ

EMBLEM

€ 0.00

12-2

6813200A1060D
ref: 12-2
MODEL G,FOR 7JK

EMBLEM

€ 0.00

13

4711200A0022P
ref: 13
MODEL G

COVER,FRAME,RIGHT NO.1

€ 0.00

14

0914803002
ref: 14

NUT

€ 3.00

15

4720000A1017R
ref: 15
MODEL E

COVER, FRAME LH (RED)

€ 189.50

16

681314950060K
ref: 16
MODEL E

EMBLEM

€ 23.50

17

4721200A00019
ref: 17
MODEL E

COVER,FRAME,RIGHT NO.1

€ 21.00

18

0914803002
ref: 18

NUT

€ 3.00

19-1

4720000A707JK
ref: 19-1
MODEL F

COVER, FRAME LH

€ 189.50

19-2

4720000A707JH
ref: 19-2
MODEL F

COVER, FRAME LH

€ 189.50

20-1

6814000A107JL
ref: 20-1
MODEL F,FOR 7JK

TAPE,FRAME COVER

€ 0.00

20-2

6814000A107JF
ref: 20-2
MODEL F,FOR 7JH

TAPE SET,FRAME COVER,LEFT

€ 0.00

21-1

6813200A107JS
ref: 21-1
MODEL F,FOR 7JK

EMBLEM

€ 10.50

21-2

6813200A107JT
ref: 21-2
MODEL F,FOR 7JH

EMBLEM

€ 0.00

22-1

4721200A00019
ref: 22-1
MODEL F,FOR 7JK

COVER,FRAME,RIGHT NO.1

€ 21.00

22-2

4721200A0012F
ref: 22-2
MODEL F,FOR 7JH

COVER,FRAME,RIGHT NO.1

€ 21.00

23

0914803002
ref: 23

NUT

€ 3.00

24-1

4770000A607JJ
ref: 24-1
MODEL G

COVER, FRAME LH

€ 189.50

24-2

4770000A607JK
ref: 24-2
MODEL G

COVER, FRAME LH

€ 189.50

25-1

6814000A808BV
ref: 25-1
MODEL G,FOR 7JJ

TAPE SET, FRAME COVER LH

€ 0.00

25-2

6814000A807JL
ref: 25-2
MODEL G,FOR 7JJ

TAPE SET, FRAME COVER LH

€ 11.50

26-1

6813200A108EJ
ref: 26-1
MODEL G,FOR 7JJ

EMBLEM

€ 0.00

26-2

6813200A1060D
ref: 26-2
MODEL G,FOR 7JK

EMBLEM

€ 0.00

27

4721200A0022P
ref: 27
MODEL G

COVER,FRAME,RIGHT NO.1

€ 21.00

28

0914803002
ref: 28

NUT

€ 3.00

29

0932008018
ref: 29

CUSHION

€ 4.00

30

0932908003
ref: 30

CUSHION

€ 3.50

31

0932007007
ref: 31

CUSHION

€ 3.00
