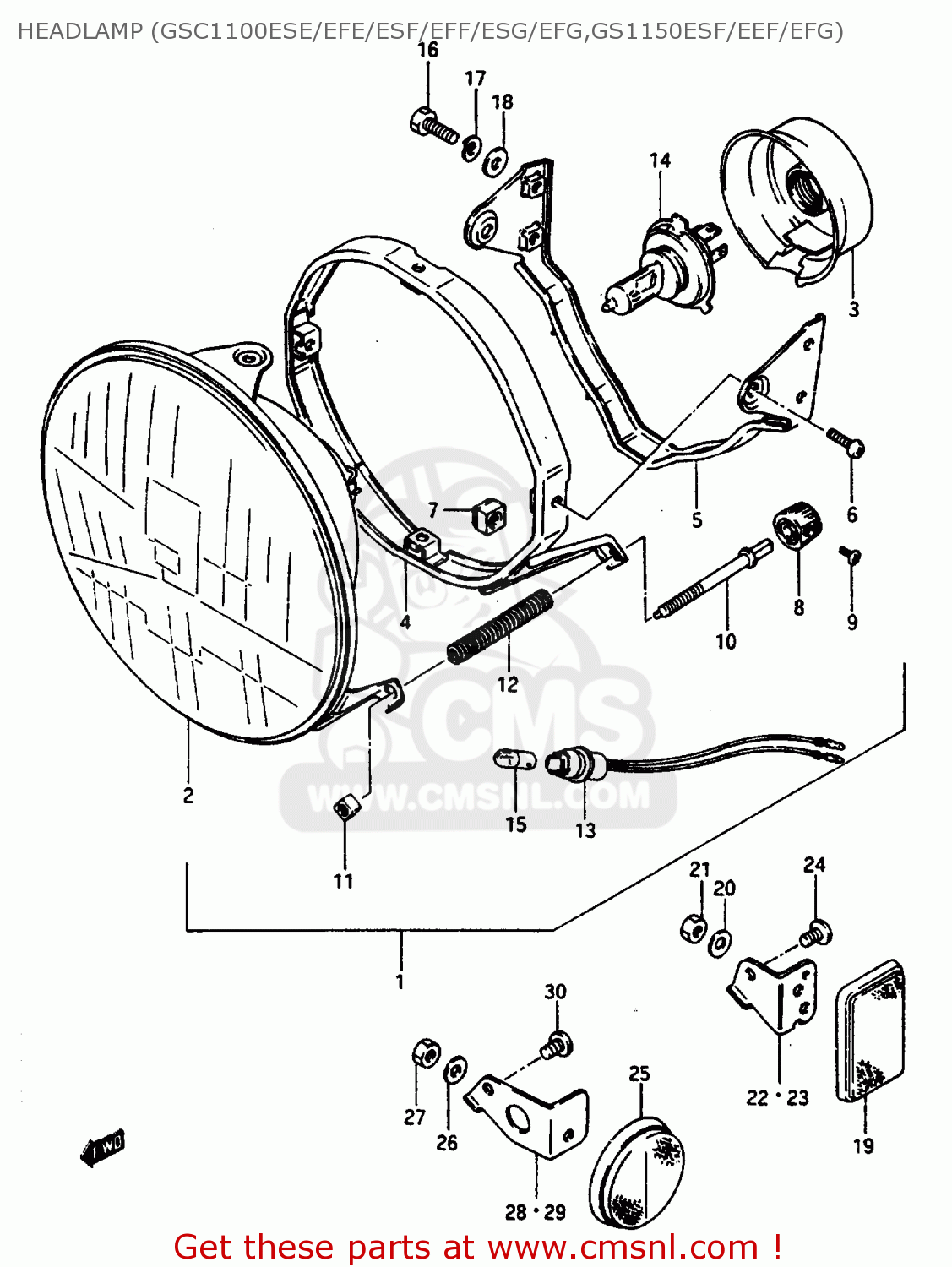

HEADLAMP (GSC1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EEF/EFG)

ref

part #

description

quantity

1-1

3510000A60999
ref: 1-1
E1,E6,E24

LAMP ASSEMBLY,HEAD

€ 0.00

1-2

3510000A70999
ref: 1-2
E2

HEADLAMP ASSY

€ 0.00

1-3

3510000A80999
ref: 1-3
E4

HEADLAMP ASSY

€ 127.50

1-4

3510000A90999
ref: 1-4
E15,E16,E17,E18,E21,

HEADLAMP ASSY

€ 127.50

2-1

3512100A60
ref: 2-1
E1,E6,E24

UNIT,HEADLAMP

€ 0.00

2-2

3512100A70
ref: 2-2
E2

UNIT

€ 0.00

2-3

3512100A90
ref: 2-3
E4,E15,E16,E17,E18,E

UNIT,HEAD LAMP

€ 145.50

3

3517349200
ref: 3

COVER,HEADLAMP SOCKET

€ 12.50

4

3513000A60
ref: 4

RING,MOUNTING

€ 36.00

5

3514100A60
ref: 5

HOUSING,LAMP UNIT

€ 29.00

6

0211205125
ref: 6

SCREW

€ 1.50

7

3513545900
ref: 7

NUT

€ 2.50

8

3516149320
ref: 8

KNOB,ADJUSTER

€ 6.00

9

0211203108
ref: 9

SCREW

€ 1.50

10

3515149500
ref: 10

SCREW,HEADLAMP ADJUST

€ 16.50

11

3515249500
ref: 11

NUT,HEADLAMP ADJUSTER

€ 2.50

12

3515449500
ref: 12

SPRING

€ 4.50

13

3611845900
ref: 13
E2,E4,E15,E16,E18,E2

SOCKET,PARKING

€ 13.00

14-1

0947112060
ref: 14-1

BULB(12V60/55W,H4)

€ 8.00

14-2

0947112061
ref: 14-2
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

15

0947112063
ref: 15
E2,E4,E15,E16,E18,E2

BULB(12V4W)

€ 6.00

16

0110706165
ref: 16

BOLT 6X16

€ 2.00

17

0832121064
ref: 17

WASHER,LOCK

€ 2.00

18

0832221064
ref: 18

WASHER

€ 2.00

19

3595031310
ref: 19
E39

REFLEX REFLECTOR, FRONT SIDE

€ 0.00

20

0832221055
ref: 20
E39

WASHER,5MM

€ 2.50

21

0831012055
ref: 21
E39

NUT ,5MM

€ 2.50

22

3595600A00
ref: 22
E39

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

23

3595700A00
ref: 23
E39

BRACKET,FRONT SIDE REFLECTOR

€ 0.00

24

0214205085
ref: 24
E39

SCREW

€ 2.00

25

3595014A00
ref: 25
E39

REFLECTOR,REFLEX FR

€ 15.00

26

0832221055
ref: 26
E39

WASHER,5MM

€ 2.50

27

0831012055
ref: 27
E39

NUT ,5MM

€ 2.50

28

3595600A10
ref: 28
E39

BRACKET, RH

€ 0.00

29

3595700A10
ref: 29
E39

BRACKET, LH

€ 0.00

30

0214205085
ref: 30
E39

SCREW

€ 2.00
