CANISTER (CALIFORNIA ONLY)
GSX1100F 1988 (J) USA (E03)

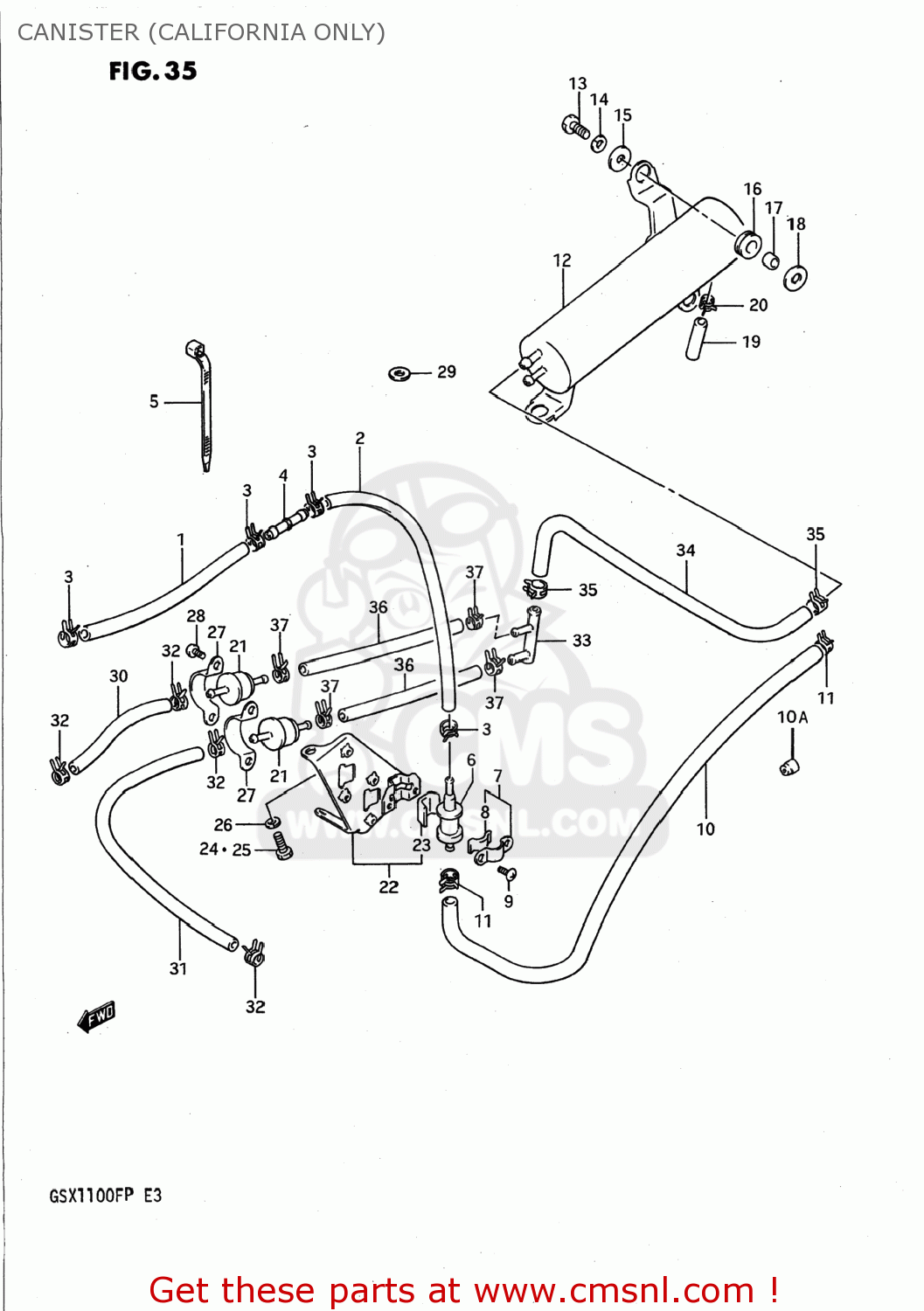

Canister (california only) diagram GSX1100F 1988 (J) USA (E03)
CANISTER (CALIFORNIA ONLY) GSX1100F 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0935854116300
ref: 1
09355-54115-600
HOSE
€ 20.00
2
0935854116300
ref: 2
09355-54115-600
HOSE
€ 20.00
3
0940111410
ref: 3
09401-11413
(CA) CLIP
€ 2.50
4
0936406005
ref: 4
UNION
€ 4.00
5
0940714403
ref: 5
CLAMP(L:125)
€ 2.50
6
4424038A00
ref: 6
VALVE,FUEL TANK BREATHER
€ 35.00
7
4489224A00
ref: 7
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
8
4489424A00
ref: 8
CUSHION
€ 1.50
9
0214204103
ref: 9
02142-0410A
SCREW
€ 1.50
10
0934305501
ref: 10
HOSE (L:330)
€ 7.50
10A
2412518900
ref: 10A
NOZZLE
€ 3.50
11
0940111410
ref: 11
09401-11413
(CA) CLIP
€ 2.50
12
1721048B10
ref: 12
CANISTER COMP,CHARCOAL
€ 140.50
13-1
0110706257
ref: 13-1
01500-06257
BOLT
€ 2.00
13-2
0911806034
ref: 13-2
BOLT
€ 2.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
0916006027
ref: 15
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
16
0932008021
ref: 16
CUSHION
€ 4.00
17
0918006038
ref: 17
SPACER(6.1X9X7.5)
€ 2.00
18
0916006060
ref: 18
09160-06077
WASHER
€ 2.00
19
0935470123300
ref: 19
44421-12FR0
HOSE (7X12X300)
€ 26.00
20
0940111410
ref: 20
09401-11413
(CA) CLIP
€ 2.50
21
4425048B00
ref: 21
VALVE,CANISTER PURGE
€ 39.50
22
4488048B10
ref: 22
BRACKET,CANISTER
€ 7.50
23
4489424A00
ref: 23
CUSHION
€ 1.50
24-1
0110706166
ref: 24-1
01500-0616A
BOLT
€ 2.00
24-2
0113406166
ref: 24-2
01570-0616A
BOLT
€ 2.50
25-1
0110706106
ref: 25-1
01500-0610B
BOLT
€ 2.00
25-2
0113406106
ref: 25-2
BOLT
€ 2.50
26
0832121066
ref: 26
08321-0106A
WASHER,LOCK
€ 2.00
27
4488448B00
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
28
0211205086
ref: 28
02112-0508A
SCREW
€ 2.00
29
0916012004
ref: 29
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
30
0935454115300
ref: 30
09355-54115-600
HOSE
€ 20.00
31
0935454115600
ref: 31
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
32
0940111410
ref: 32
09401-11413
(CA) CLIP
€ 2.50
33
0936706004
ref: 33
SEPARATOR
€ 0.00
34
0934307501
ref: 34
HOSE(L:350)
€ 19.00
35
0940112406
ref: 35
09401-11415
CLAMP
€ 2.50
36
0935454115300
ref: 36
09355-54115-600
HOSE
€ 20.00
37
0940111410
ref: 37
09401-11413
(CA) CLIP
€ 2.50
