OIL COOLER

GSX1100F 1988 (J) USA (E03)

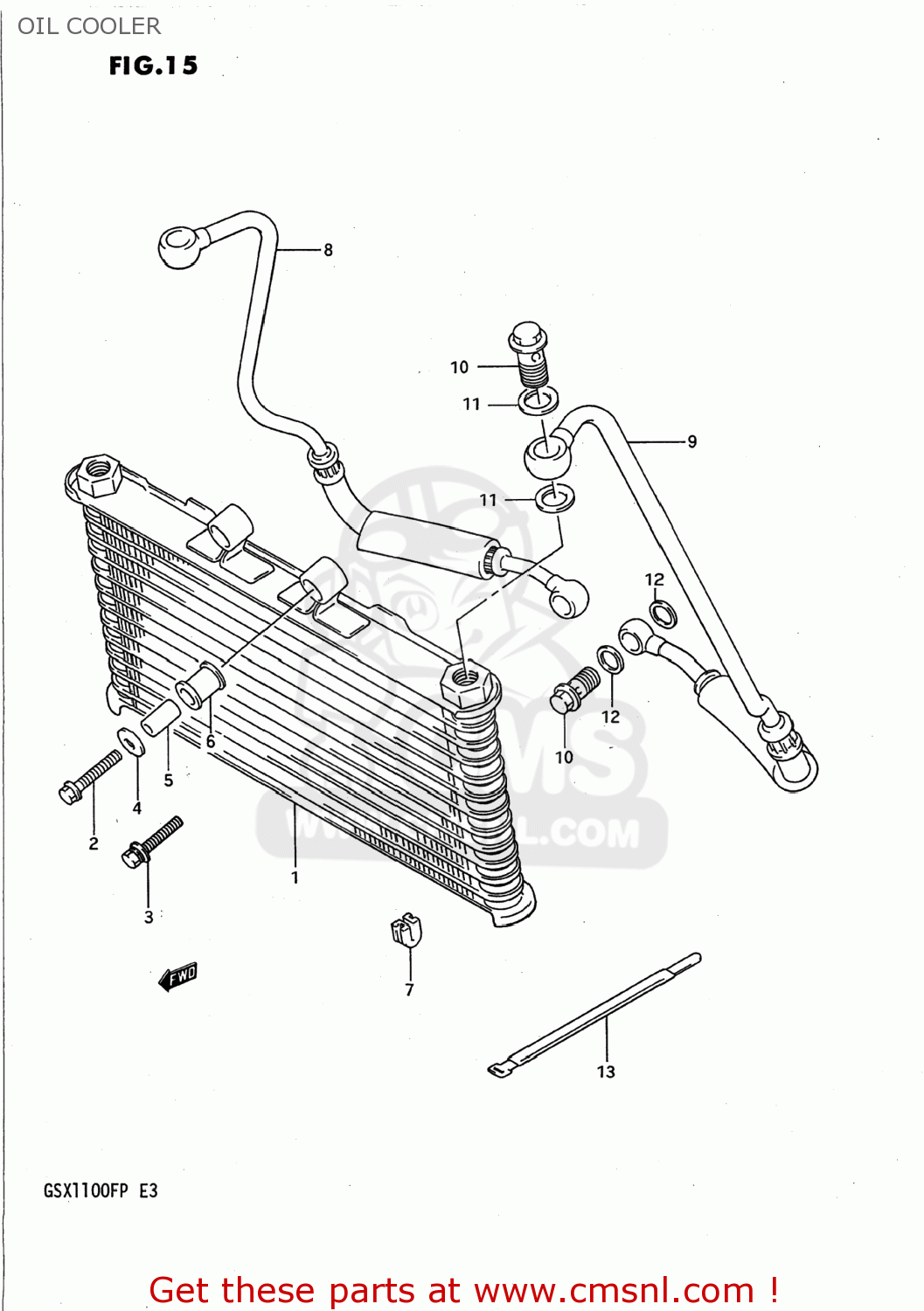

Oil cooler diagram GSX1100F 1988 (J) USA (E03)

OIL COOLER GSX1100F 1988 (J) USA (E03)

OIL COOLER GSX1100F 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660048B01
ref: 1
16600-48B02

COOLER ASSEMBLY,OIL

€ 949.50

2

0151708405
ref: 2
01550-08407

BOLT 8X40

€ 3.50

3

0911808131
ref: 3

BOLT(8X40)

€ 3.50

4

0916008047
ref: 4
09160-08130

WASHER(8.5X23X1.2)

€ 2.00

5

0918008124
ref: 5
09180-08304

SPACER (8.8X12X24.5)

€ 7.00

6

1662927A01
ref: 6

CUSHION,OIL COOLER NO.1

€ 4.00

7

1662827A00
ref: 7

CUSHION,OIL COOLER NO.2

€ 3.00

8

1646048B04
ref: 8
16460-48B05

HOSE,OIL

€ 118.00

9

1647048B03
ref: 9
16470-48B04

HOSE,OIL

€ 141.50

10

0936016002
ref: 10

BOLT UNION

€ 12.00

11

0916816003
ref: 11

GASKET(16X22X2) (NAS)

€ 2.00

12

0916816002
ref: 12

GASKET(16X22X2) (NAS)

€ 2.00

13-1

0940725301
ref: 13-1

CLAMP(L:250)

€ 4.50

13-2

0940721302
ref: 13-2
09407-25301

CLAMP

€ 4.50
