REAR SHOCK ABSORBER (MODEL K/L/M/N/P)

GSX1100F 1988 (J) USA (E03)

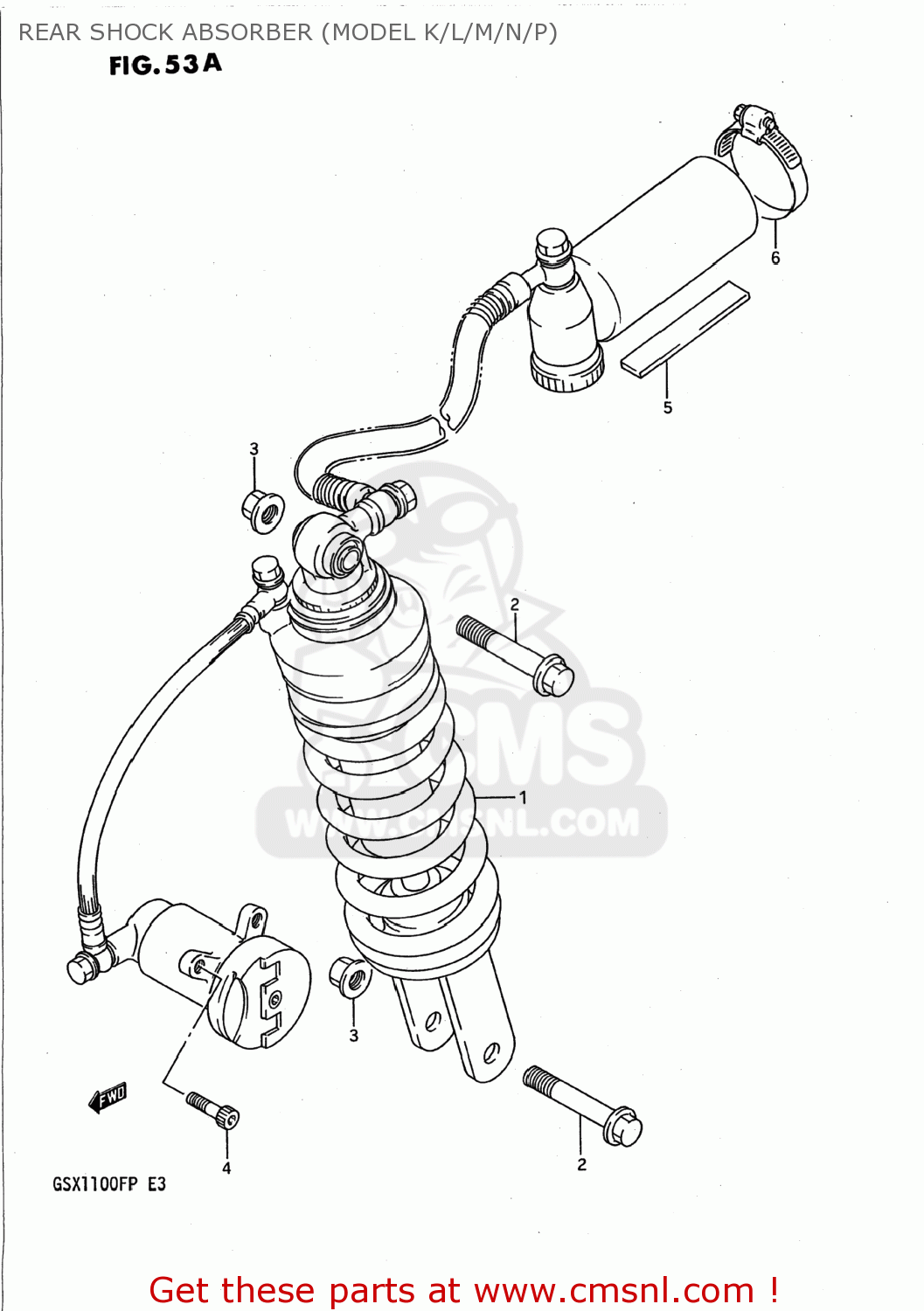

Rear shock absorber (model k/l/m/n/p) diagram GSX1100F 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6210048B30
ref: 1-1
62100-48C01

ABSORBER ASSEMBLY,REAR SHOCK

€ 1,636.50

1-2

6210048C00
ref: 1-2
62100-48C01

ABSORBER ASSEMBLY,REAR SHOCK

€ 1,636.50

1-3

6210048C01
ref: 1-3

ABSORBER ASSY,RR SHOCK

€ 1,636.50

0910310101
ref: 2

BOLT(10X54)

€ 3.00

0831931107
ref: 3

NUT

€ 3.00

0712006168
ref: 4
07120-06167

BOLT

€ 2.50

6233148B00
ref: 5

CUSHION, RESERVOIR TANK

€ 5.50

0940243501
ref: 6
09402-50511

CLAMP

€ 8.50
