CLUTCH

GSX1100F 1988 (J) USA (E03)

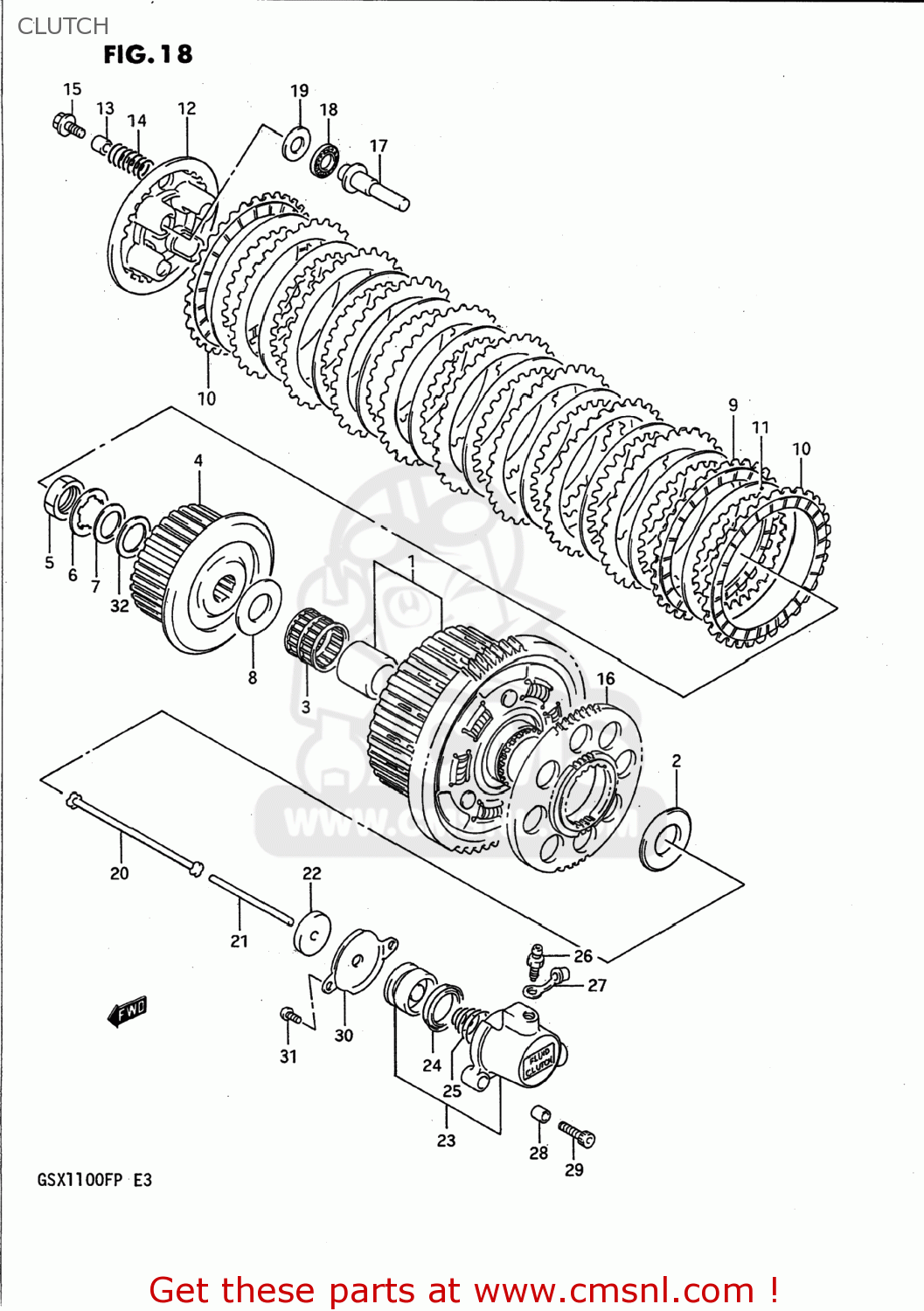

Clutch diagram GSX1100F 1988 (J) USA (E03)

CLUTCH GSX1100F 1988 (J) USA (E03)
CLUTCH GSX1100F 1988 (J) USA (E03)
CLUTCH GSX1100F 1988 (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
2120048811
ref: 1-1
21200-48814
GEAR ASSEMBLY,PRIMARY DRIVE
€ 367.50
1-2
2120048813
ref: 1-2
21200-48814
GEAR ASSEMBLY,PRIMARY DRIVE
€ 367.50
1-3
2120048820
ref: 1-3
21200-48814
GEAR ASSEMBLY,PRIMARY DRIVE
€ 367.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4-1
2141048B01
ref: 4-1
21410-48B02
HUB,CLUTCH SLEEVE
2141048B01
€ 112.50
4-2
2141048B02
ref: 4-2
HUB,CLUTCH SLEEVE
2141048B02
€ 112.50
5
0914024012
ref: 5
NUT
0914024012
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916424006
ref: 7
WASHER
0916424006
€ 4.00
8
0916025056
ref: 8
WASHER(25X50X2.5)
0916025056
€ 9.50
9
2144148B00
ref: 9
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144148B00
€ 18.00
10
2144248B00
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144248B00
€ 17.00
10
2144248B00
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144248B00
€ 17.00
11
2145148B00
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
2145148B00
€ 10.50
12
2146206B00
ref: 12
DISC,CLUTCH PRESSURE
2146206B00
€ 83.00
13
0918006174
ref: 13
SPACER(6.2X12X14)
0918006174
€ 5.50
14
0944020018
ref: 14
SPRING
0944020018
€ 6.00
15-1
0911606073
ref: 15-1
09116-06171
BOLT
€ 2.50
15-2
0911606163
ref: 15-2
09116-06171
BOLT
€ 2.50
16
2272106B02
ref: 16
22721-06B03
GEAR,GENERATOR DRIVE
€ 161.50
16
2272106B02
ref: 16
22721-06B03
GEAR,GENERATOR DRIVE
€ 161.50
17
2312106B00
ref: 17
PIECE,CLUTCH PUSH
€ 19.50
18
0926315003
ref: 18
BEARING(15X28X2)
0926315003
€ 7.00
19
0916015015
ref: 19
09160-15045
WASHER
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
2311027A00
€ 17.00
21
2311115501
ref: 21
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
22
0928506015
ref: 22
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
23
2316008A02
ref: 23
CYLINDER,CLUTCH RELEASE
2316008A02
€ 129.00
24
2316305A00
ref: 24
CUP,CLUTCH CYLINDER
2316305A00
€ 7.50
25
2316405A00
ref: 25
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
26
5912101A00
ref: 26
BLEEDER
5912101A00
€ 8.50
27
5912201A00
ref: 27
CAP,BLEEDER
5912201A00
€ 4.50
28
0421109129
ref: 28
PIN
0421109129
€ 2.00
29
0711006255
ref: 29
07130-0625B
BOLT
0711006255
€ 3.00
30
2311727A03
ref: 30
23117-46E00
PLATE,CLUTCH PUSH ROD
€ 6.50
31
0211206106
ref: 31
02112-0610B
SCREW
€ 1.50
32-1
0822125365
ref: 32-1
09181-25186
SHIM
0822125365
€ 4.50
32-2
0916725024
ref: 32-2
WASHER,LOCK
0916725024
€ 3.00
