GSX1100F 1988 (J) USA (E03)

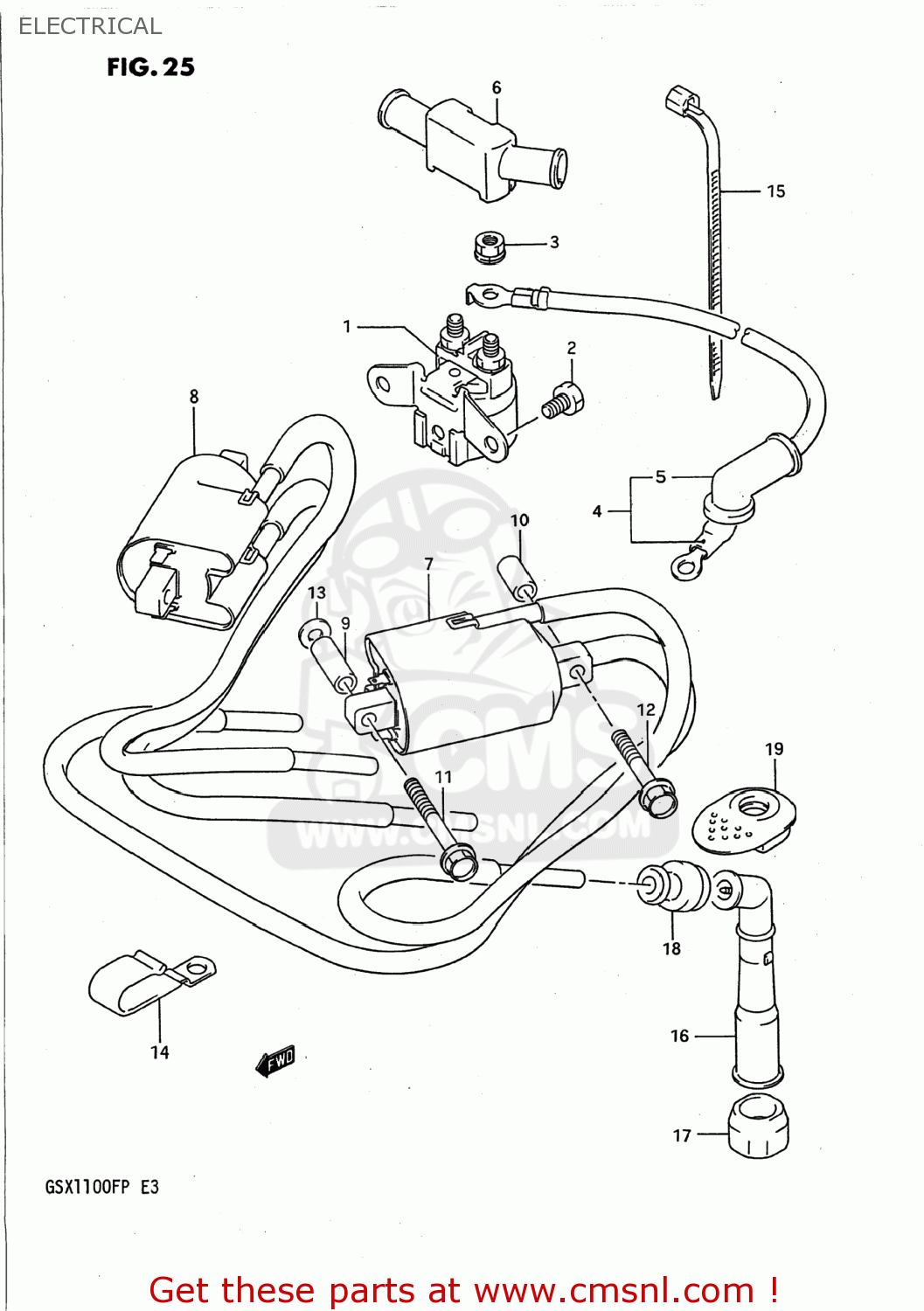

Electrical diagram GSX1100F 1988 (J) USA (E03)
ELECTRICAL GSX1100F 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0912806013
ref: 2
SCREW(6X8)
€ 1.50
3
0836135066
ref: 3
08361-3506A
NUT
€ 2.00
4
3385048B00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 50.00
5
3186148B10
ref: 5
CAP,STARTER MOTOR LEAD
€ 4.50
6
3186134A00
ref: 6
CAP,STARTER RELAY
€ 0.00
7
3341048B00
ref: 7
COIL ASSY,IGNITION
€ 109.50
8
3342048B00
ref: 8
COIL ASSY,IGNITION
€ 124.00
9
0918006196
ref: 9
SPACER(6.4X10X28)
€ 3.00
10
0918006195
ref: 10
SPACER(6.4X10X18)
€ 3.50
11
0154706505
ref: 11
01547-0650B
BOLT 6X50
€ 3.50
12
0154706404
ref: 12
01547-0640B
BOLT 6X40
€ 3.00
13
0832221066
ref: 13
08322-0106B
WASHER, LOWER
€ 2.00
14
0940306307
ref: 14
CLAMP
€ 4.50
15
0940714403
ref: 15
CLAMP(L:125)
€ 2.50
16
3351048B10
ref: 16
CAP,SPARK PLUG
€ 29.50
17
3354148B00
ref: 17
33541-23E01
SEAL,SPARK PLUG
€ 7.00
18
3354238B00
ref: 18
SEAL,HIGH TENSION CORD
€ 4.50
19
3354348B00
ref: 19
COVER,SPARK PLUG CAP
€ 12.50
