REAR MASTER CYLINDER
GSX1100F 1988 (J) USA (E03)

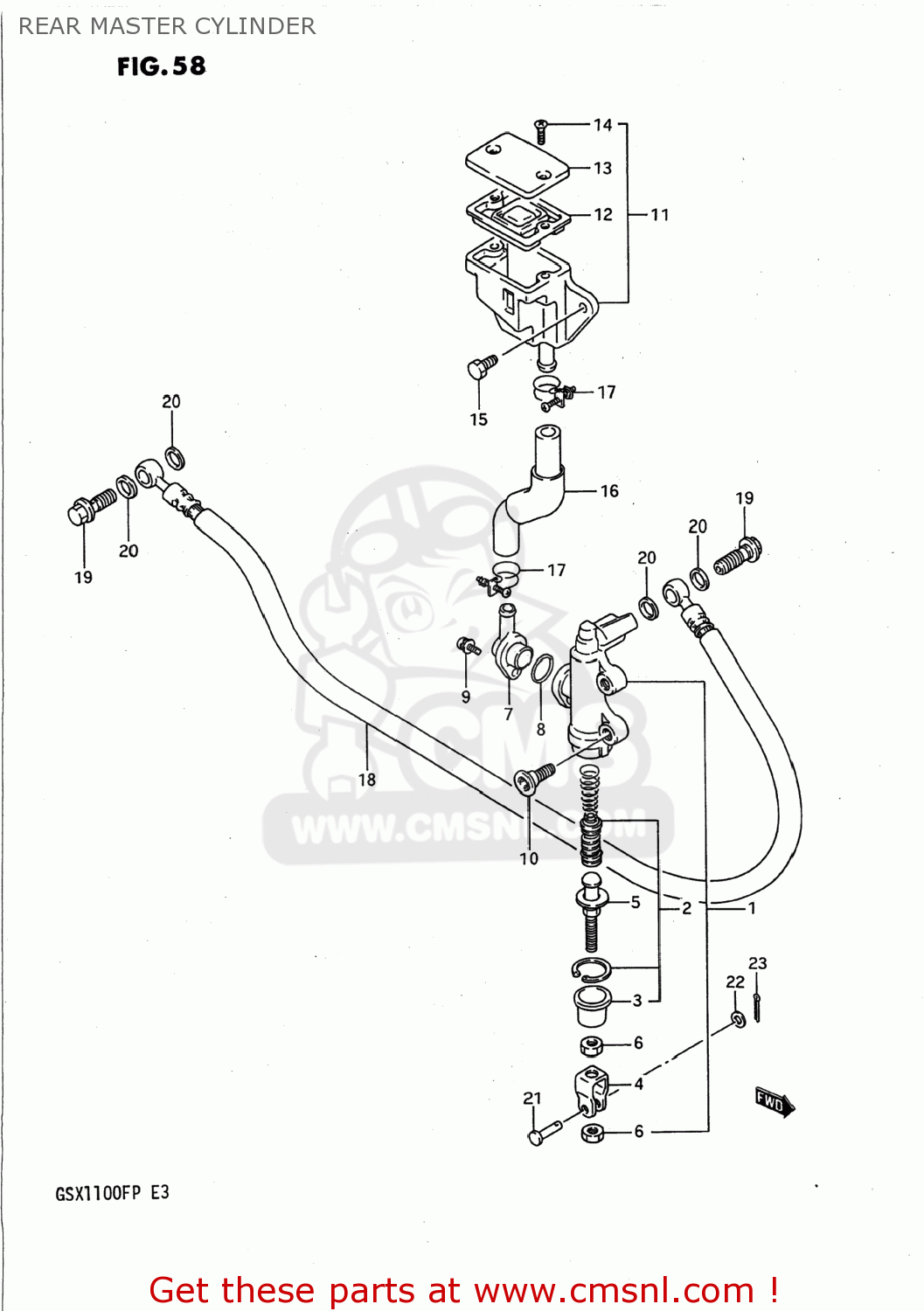

Rear master cylinder diagram GSX1100F 1988 (J) USA (E03)
REAR MASTER CYLINDER GSX1100F 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960048B00
ref: 1
CYLINDER ASSY,RR MASTER
€ 154.50
2
6960016830
ref: 2
69600-04820
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274125
ref: 9
02112-7412A
SCREW
€ 2.50
10
0910608076
ref: 10
BOLT(8X15)
€ 5.00
11-1
6974048B00
ref: 11-1
69740-01D02
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-2
6974001D00
ref: 11-2
69740-01D02
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-3
6974001D01
ref: 11-3
69740-01D02
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-4
6974001D02
ref: 11-4
TANK ASSY,RR RESERVOIR
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13-1
6966924A00
ref: 13-1
69669-24A01
CAP
€ 12.00
13-2
6966924A01
ref: 13-2
CAP
€ 12.00
13-3
5966905D00
ref: 13-3
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
0110706127
ref: 15
01500-06127
BOLT
€ 2.00
16
6973148B00
ref: 16
HOSE,RESERVOIR TANK
€ 10.00
17
0940016302
ref: 17
09400-16304
CLAMP
€ 4.50
18-1
6948048B01
ref: 18-1
69480-48B10
HOSE,REAR BRAKE
€ 98.00
18-2
6948048B10
ref: 18-2
HOSE,REAR BRAKE
€ 98.00
19
0936010017
ref: 19
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
0920006037
ref: 21
09200-06068
PIN
€ 5.00
22
0832221067
ref: 22
08322-01067
WASHER
€ 2.00
23
0411120158
ref: 23
04111-2015A
PIN
€ 1.50
