STARTING MOTOR
GSX1100F 1988 (J) USA (E03)

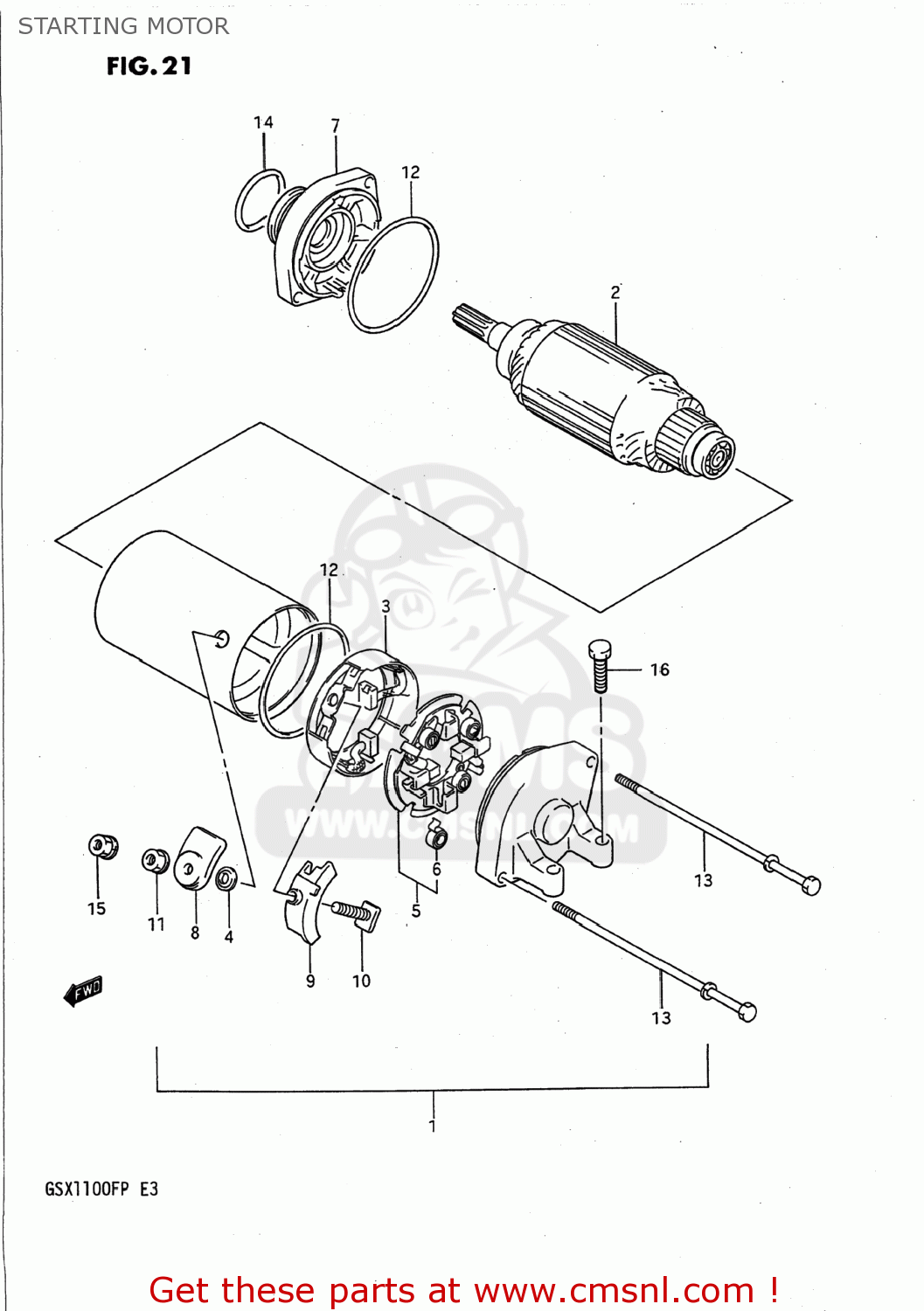

Starting motor diagram GSX1100F 1988 (J) USA (E03)
STARTING MOTOR GSX1100F 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110048B00
ref: 1-1
31100-48B01-H17
MOTOR ASSEMBLY,STARTING
€ 705.50
1-1
3110048B00
ref: 1-1
31100-48B01-H17
MOTOR ASSEMBLY,STARTING
€ 705.50
1-2
3110048B01H17
ref: 1-2
MOTOR ASSEMBLY,STARTING
€ 705.50
2
3131048B01H17
ref: 2
ARMATURE
€ 188.50
3
3113148B00
ref: 3
TERMINAL SET,BRUSH
€ 35.00
4
3114348B00
ref: 4
GASKET (NAS)
€ 6.50
5
3113248B00
ref: 5
HOLDER SET,BRUSH(-)
€ 51.00
6
3113565010
ref: 6
SPRING
€ 3.00
7-1
3115048B00
ref: 7-1
31150-48B10
BRACKET SET
€ 59.00
7-2
3115048B10
ref: 7-2
BRACKET SET,STARTING MOTOR
€ 59.00
8
3117248B10
ref: 8
BUSHING
€ 3.00
9
3117248B20
ref: 9
BUSHING
€ 8.50
10
3113048B00
ref: 10
BOLT
€ 4.50
11
3114548B00
ref: 11
NUT
€ 1.50
12
3126444110
ref: 12
O RING
€ 8.00
13-1
3128148B01
ref: 13-1
BOLT,STARTING
€ 6.50
13-2
3128148B10
ref: 13-2
BOLT,STARTING MOTOR
€ 5.50
14
3115648B00
ref: 14
O RING
€ 8.50
15
0836135066
ref: 15
08361-3506A
NUT
€ 2.00
16
0912806024
ref: 16
09103-06212
SCREW (6X25)
€ 2.50
