CLUTCH MASTER CYLINDER

GSX1100F 1993 (P) USA (E03)

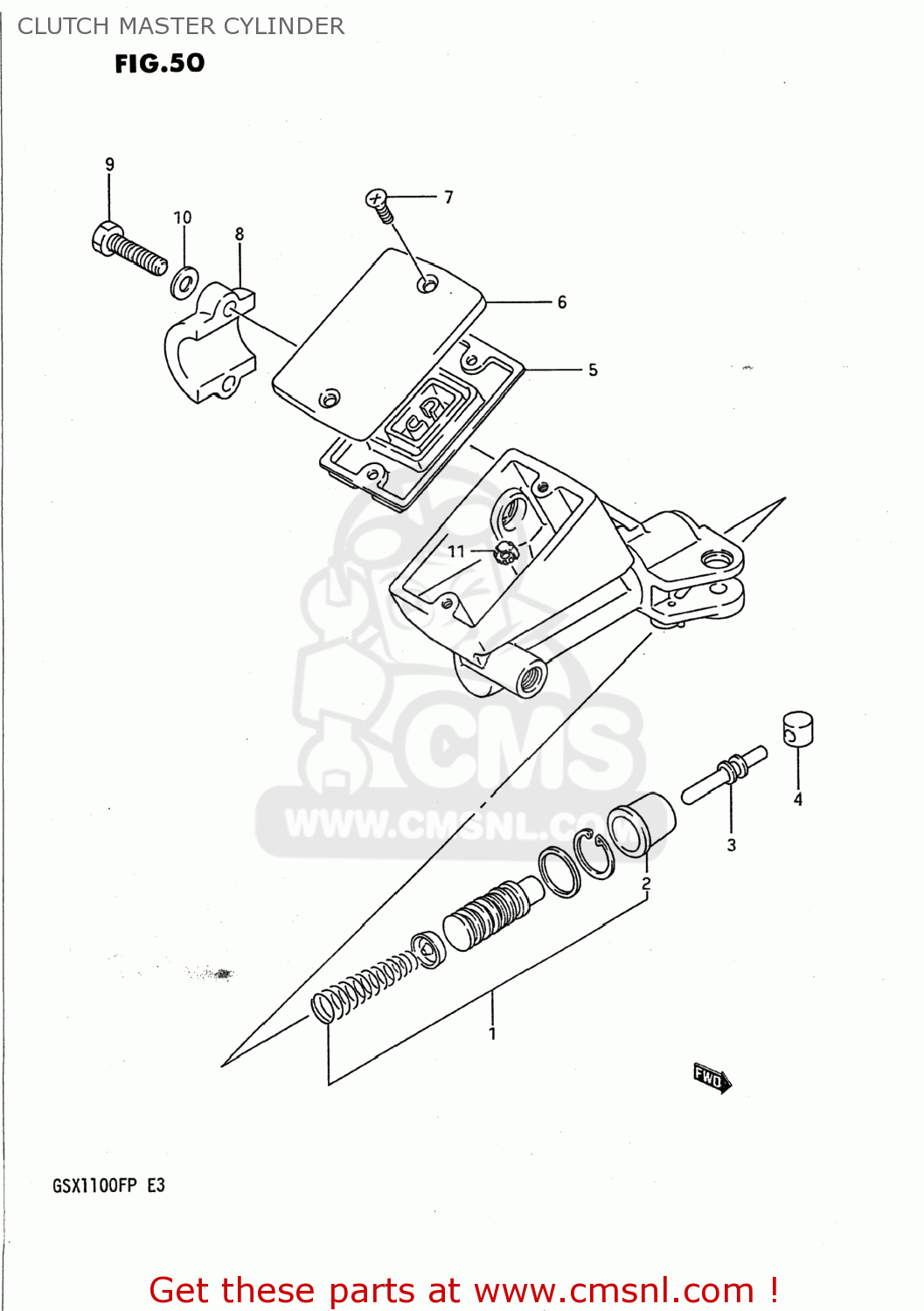

Clutch master cylinder diagram GSX1100F 1993 (P) USA (E03)

CLUTCH MASTER CYLINDER GSX1100F 1993 (P) USA (E03)

CLUTCH MASTER CYLINDER GSX1100F 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity



5980048B00
ref:
59800-48B01

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 293.00



5980048B00
ref:
59800-48B01

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 293.00



5980048B01
ref:

CYLINDER ASSY,CLUTCH MASTER

€ 293.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6-1

5966924A00
ref: 6-1

CAP

€ 30.50

6-2

5966924A01
ref: 6-2
59669-24A00

CAP,MASTER CYLINDER,REAR

€ 30.50

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967119B00
ref: 8

HOLDER

€ 18.50

9

0110706255
ref: 9
01500-0625A

BOLT

€ 2.50

10

0832221064
ref: 10
08322-0106B

WASHER

€ 2.00

11

5966448B00
ref: 11

PROTECTOR

€ 8.00
