HANDLE SWITCH (MODEL K/L/M/N/P)
GSX1100F 1993 (P) USA (E03)

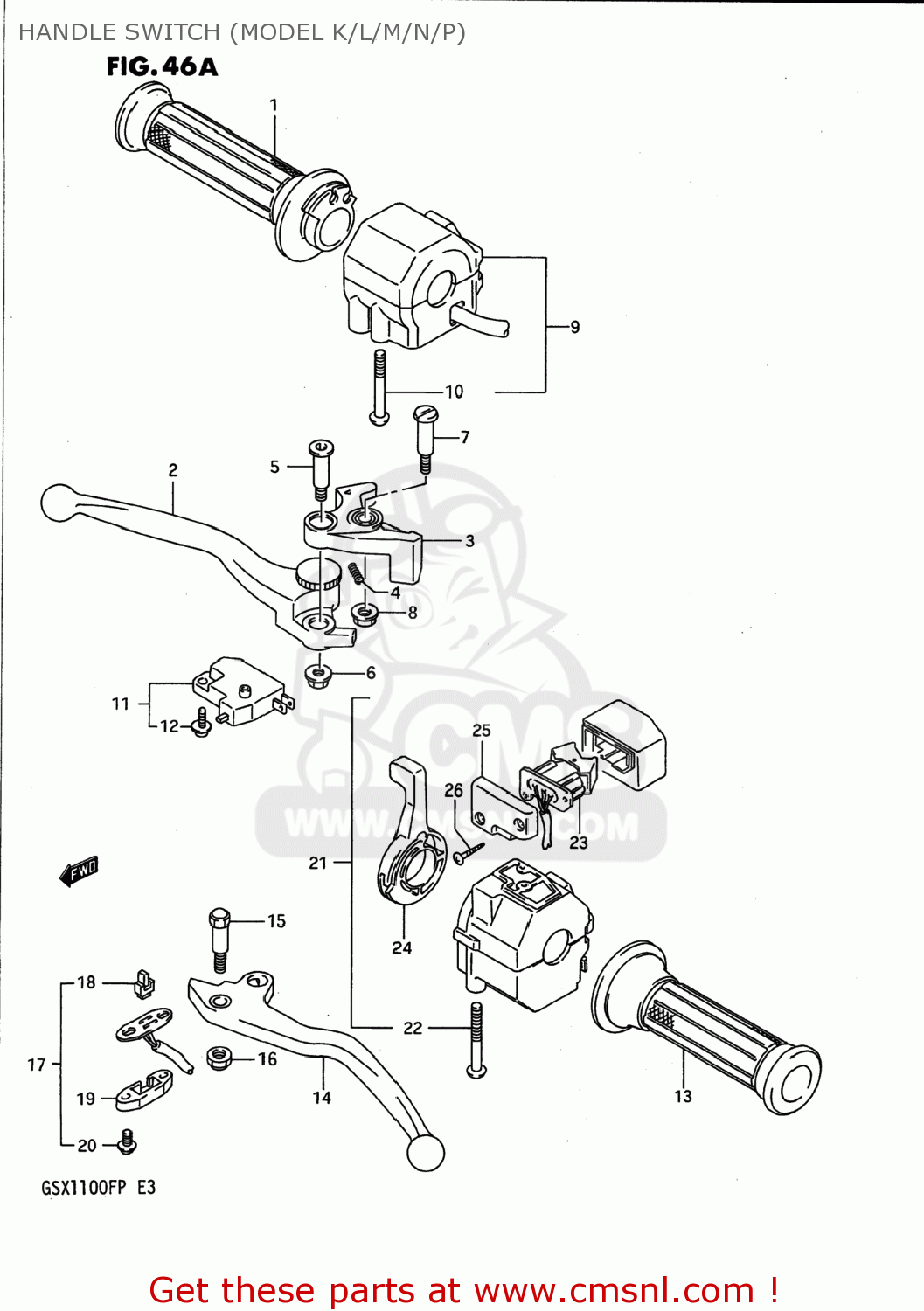

Handle switch (model k/l/m/n/p) diagram GSX1100F 1993 (P) USA (E03)
HANDLE SWITCH (MODEL K/L/M/N/P) GSX1100F 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711049501
ref: 1
GRIP,THROTTLE
€ 26.00
2
5742048B00
ref: 2
LEVER,ADJUST
€ 37.50
3
5743048B00
ref: 3
KNOCKER
€ 38.50
4
5743832C00
ref: 4
SPRING
€ 4.00
5
5743732C00
ref: 5
57437-32C01
BOLT,LEVER
€ 6.50
6
0831931065
ref: 6
08319-3106A
NUT
€ 2.50
7
5743117C00
ref: 7
BOLT,LEVER PIVOT
€ 8.00
8
0831616064
ref: 8
08316-1006B
NUT 6MM
€ 2.50
9
3720048B50
ref: 9
37200-48B51
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 54.50
10
0211205455
ref: 10
02112-0545B
SCREW, 5X45
€ 4.00
11
5746017C00
ref: 11
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
12
5746517C00
ref: 12
SCREW
€ 1.50
13
5721149500
ref: 13
GRIP,L
€ 9.00
14
5762148B00
ref: 14
LEVER,CLUTCH
€ 19.50
15
5743105A00
ref: 15
BOLT,LEVER
€ 8.50
16
0831921065
ref: 16
08319-2106B
NUT
€ 2.50
17
5756008A00
ref: 17
57560-18D10
SWITCH ASSEMBLY,CLUTCH
€ 20.50
18
5746518601
ref: 18
CONTACT,SWITCH
€ 4.50
19
5748133010
ref: 19
COVER,FR BK TERMINAL BASE
€ 19.50
20
0912503105
ref: 20
09125-03105-XC0
SCREW
€ 2.50
21
3740048B30
ref: 21
37400-48B31
SWITCH ASSEMBLY,HANDLE,LEFT
€ 186.00
22
0211205455
ref: 22
02112-0545B
SCREW, 5X45
€ 4.00
23
3792048B10
ref: 23
SWITCH,SCREEN
€ 57.50
24
3757148B10
ref: 24
LVER,CHOKE
€ 9.50
25
3757548B10
ref: 25
COVER,SCREEN SWITCH
€ 6.50
26
3739148B10
ref: 26
SCREW,SCREEN SWITCH
€ 1.50
