SPEEDOMETER
GSX1100F 1993 (P) USA (E03)

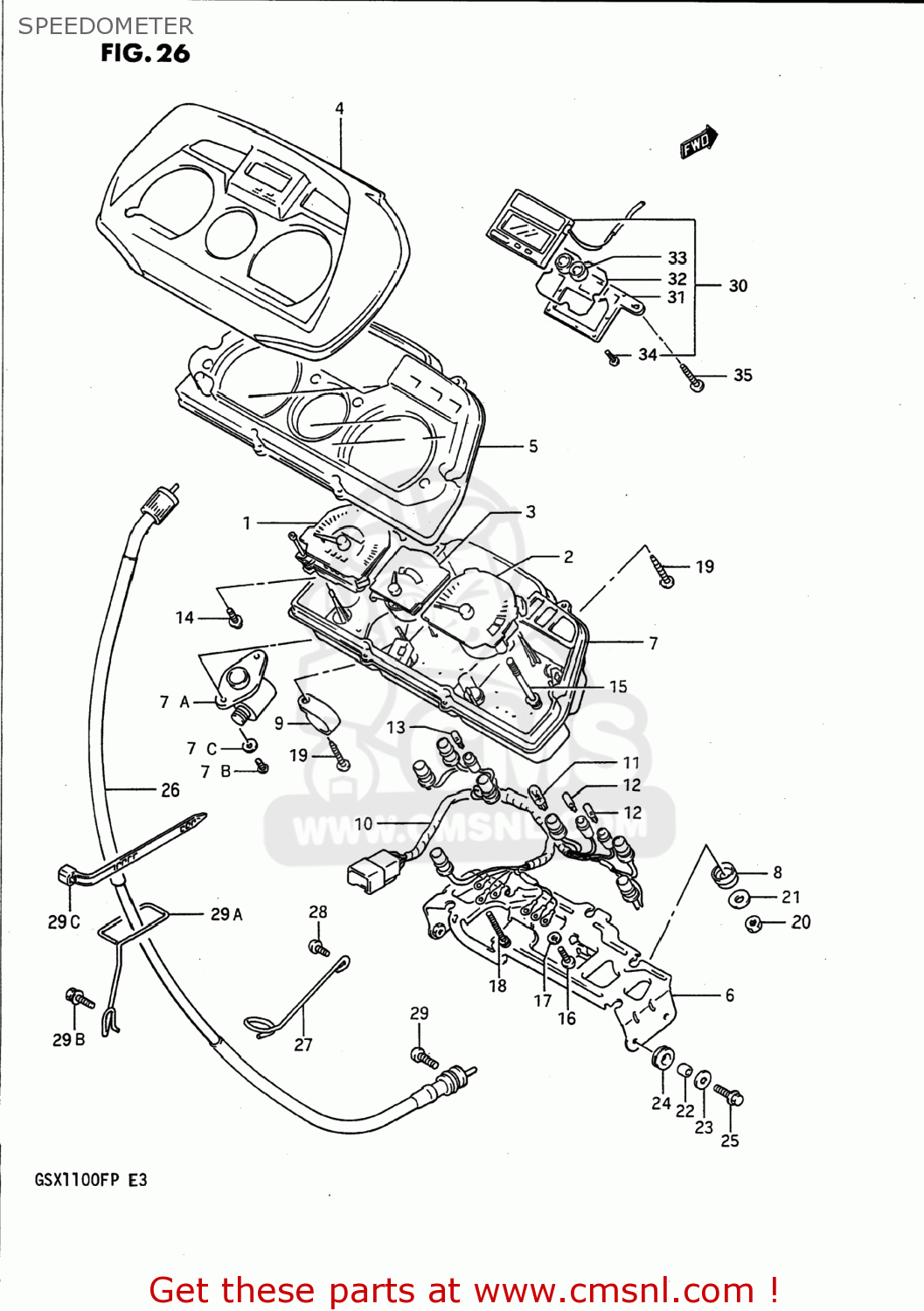

Speedometer diagram GSX1100F 1993 (P) USA (E03)
SPEEDOMETER GSX1100F 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411048B30
ref: 1-1
34110-48B33
SPEEDOMETER ASSEMBLY
€ 157.00
1-2
3411048B33
ref: 1-2
SPEEDOMETER
€ 157.00
2
3421048B11
ref: 2
34210-48B12
TACHOMETER
€ 604.50
3
3431048B10
ref: 3
METER,FUEL
€ 79.00
4-1
3415148B10
ref: 4-1
34151-48B60
HOOD,METER
€ 117.50
4-2
3415148B60
ref: 4-2
VISOR
€ 117.50
5-1
3411248B30
ref: 5-1
34112-48B60
GLASS ASSEMBLY
€ 139.50
5-2
3411248B90
ref: 5-2
34112-48B60
GLASS ASSEMBLY
€ 139.50
6
3495048B10
ref: 6
BRACKET,METER
€ 71.00
7
3411148B11
ref: 7
CASE
€ 103.50
7A
3413148B10
ref: 7A
GEAR BOX
€ 150.00
7B
0211234128
ref: 7B
02112-3412B
SCREW
€ 2.00
7C
0916004014
ref: 7C
09160-04026
WASHER (4X16X1.2)
€ 1.50
8
3418924A30
ref: 8
CUSHION
€ 4.00
9
3638548B10
ref: 9
CLAMP,METER
€ 2.50
10
3417548B10
ref: 10
SOCKET,METER
€ 96.00
11
0947112028
ref: 11
BULB(12V3.4W,T10)
€ 3.50
12
0947112103
ref: 12
BULB(12V3W,T6.5)
€ 2.50
13
0947112108
ref: 13
BULB(12V1.7W,T6.5)
€ 2.00
14
0215204086
ref: 14
SCREW
€ 1.50
15
3428332B00
ref: 15
SCREW (4X36)
€ 2.00
16
0211203126
ref: 16
02112-0312B
SCREW
€ 2.50
17
0832121036
ref: 17
08321-2103B
LOCK WASHER
€ 1.50
18
3438309400
ref: 18
SCREW(3X22)
€ 2.50
19
0324104166
ref: 19
03242-0416B
SCREW
€ 4.50
20
0831011057
ref: 20
08310-00057
NUT 5MM
€ 2.50
21
0916005017
ref: 21
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
22
0918006027
ref: 22
09180-06258
SPACER (6.3X9.1X6.7)
€ 3.00
23
0916006006
ref: 23
09160-06084
WASHER
€ 2.00
24
0932008007
ref: 24
09320-08021
CUSHION
€ 4.00
25
0151706206
ref: 25
01550-0620A
BOLT 6X20
€ 2.50
26-1
3491042A00
ref: 26-1
34910-48B00
CABLE ASSEMBLY,SPEEDOMETER
€ 32.50
26-2
3491048B00
ref: 26-2
CABLE ASSY,SPEEDOMETER
€ 32.50
27-1
3493845100
ref: 27-1
CLAMP,SPEEDOMETER CABLE
€ 14.50
27-2
3493837000
ref: 27-2
GUIDE,SPEEDOMETER CABLE
€ 14.50
28
0151706108
ref: 28
01550-06107
BOLT
€ 2.50
29
0211205164
ref: 29
SCREW
€ 2.00
29A
3493848B00
ref: 29A
GUIDE,SPEEDOMETER CABLE
€ 7.00
29B
0111706165
ref: 29B
01550-0616A
BOLT
€ 2.50
29C
0940714403
ref: 29C
CLAMP(L:125)
€ 2.50
30
3460048B00
ref: 30
CLOCK ASSEMBLY
€ 271.50
31
3465248B00
ref: 31
CASE,LOWER
€ 19.00
32
3465348B00
ref: 32
GASKET (NAS)
€ 6.00
33
3464948B00
ref: 33
BATTERY,LITHIUM
€ 15.00
34
3465548B00
ref: 34
SCREW,TAPPING
€ 1.00
35
0913203008
ref: 35
SCREW(3X16)
€ 1.50
