PILLION RIDER HANDLE

GSX1100F 1993 (P) USA (E03)

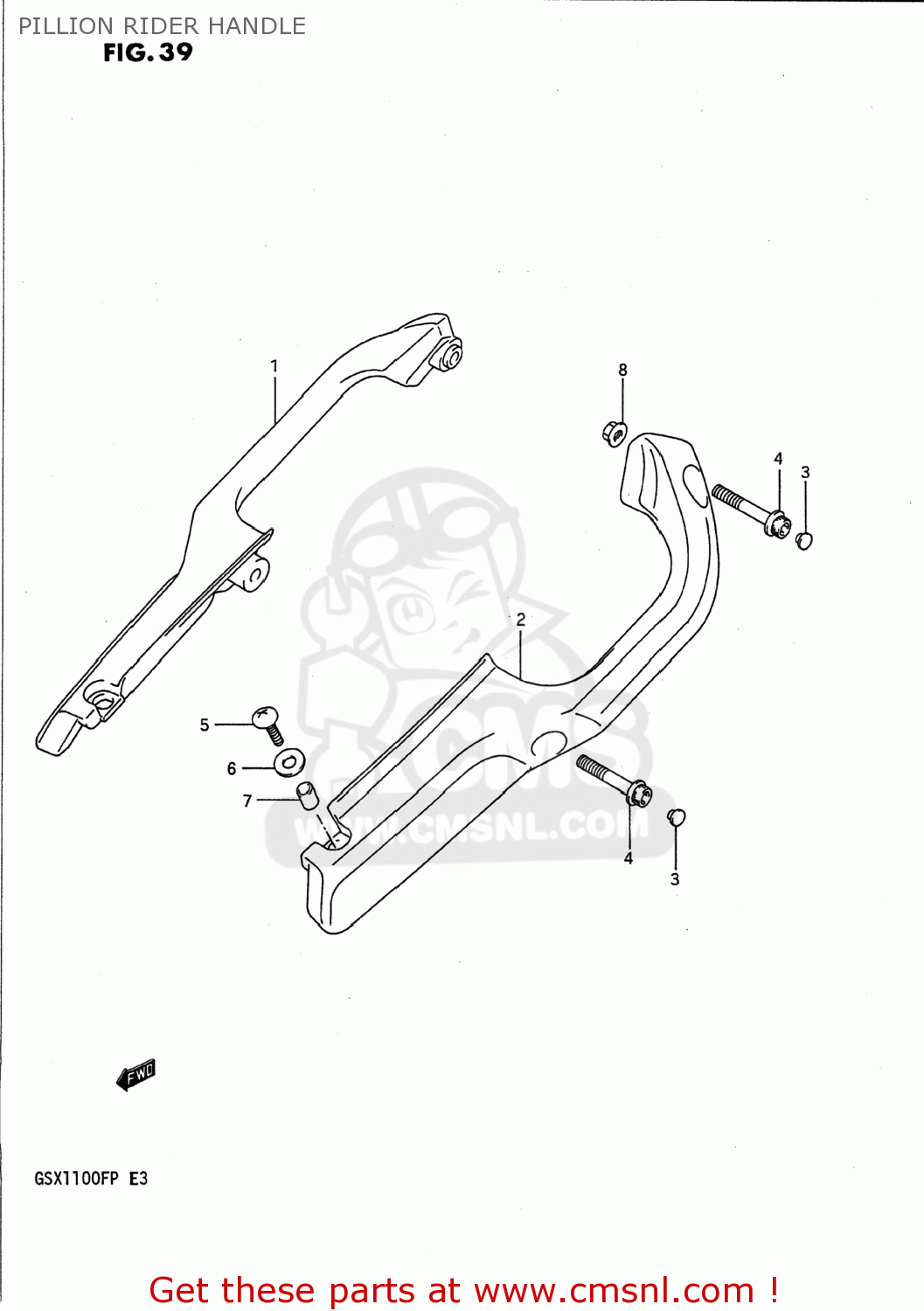

Pillion rider handle diagram GSX1100F 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

4621148B10
ref: 1

HANDLE,PILLION RIDER,RIGHT

€ 102.00

4622148B10
ref: 2

HANDLE,PILLION RIDER,LEFT

€ 100.50

4621348B00
ref: 3
09250-06004

HANDLE,PILLION RIDER

€ 1.50

0712008455
ref: 4
07120-0845B

BOLT 8X45

€ 3.50

5-1

0214206205
ref: 5-1
02142-0620A

SCREW, CENTER

€ 2.00

5-2

0913606105
ref: 5-2

SCREW(6X20)

€ 2.00

0916006069
ref: 6
09160-06052

WASHER

€ 2.00

0918006154
ref: 7
09180-06261

SPACER (6X9X8)

€ 2.00

0831616085
ref: 8
08316-1008B

NUT 8MM

€ 3.00
