STAND
GSX1100F 1993 (P) USA (E03)

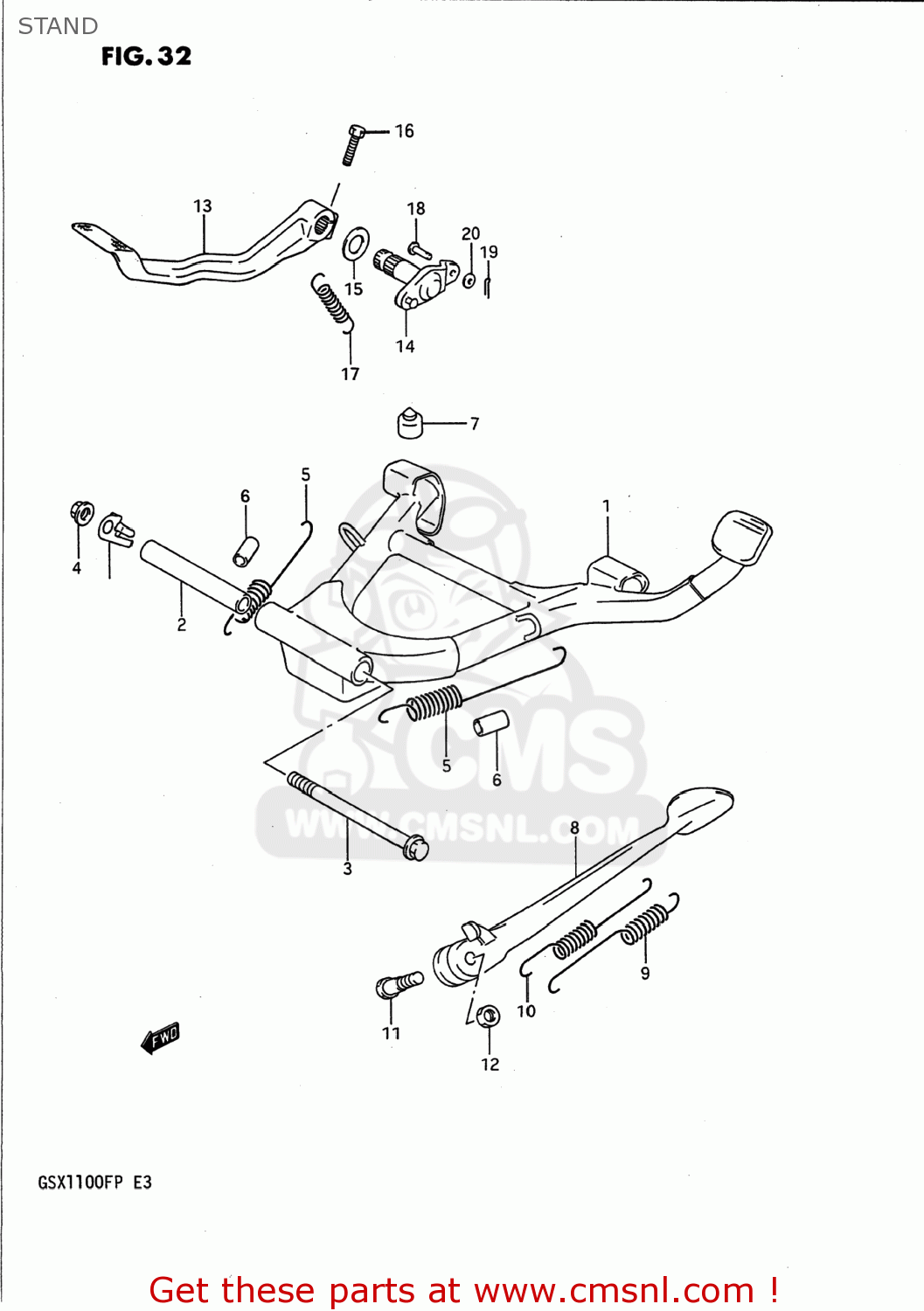

Stand diagram GSX1100F 1993 (P) USA (E03)
STAND GSX1100F 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210048B12
ref: 1-1
42100-48C10
STAND,CENTER
€ 130.00
1-2
4210048C00
ref: 1-2
42100-48C10
STAND,CENTER
€ 130.00
1-3
4210048C10
ref: 1-3
STAND,CENTER
€ 130.00
2
0918010119
ref: 2
09180-10150
SPACER (10.5X16X102)
€ 16.50
3
0910310198
ref: 3
BOLT(10X132)
€ 6.00
4
0915910060
ref: 4
NUT
€ 2.00
5
0944317021
ref: 5
09443-17021-XC0
SPRING
€ 8.50
6
0935270113300
ref: 6
09352-70113-600
HOSE
€ 17.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231048B41
ref: 8-1
42310-48B42
STAND,SIDE
€ 76.50
8-2
4231048B42
ref: 8-2
STAND,PROP
€ 76.50
9
0944315040
ref: 9
SPRING
€ 6.00
10
0944314051
ref: 10
SPRING
€ 5.50
11
0911110036
ref: 11
BOLT(10X38)
€ 5.50
12
0831022105
ref: 12
09140-10043
NUT
€ 2.00
13
4311148B10
ref: 13
43111-48B11
PEDAL,BRAKE
€ 42.00
14
4312048B11
ref: 14
ARM,BRAKE PEDAL
€ 23.00
15
4321248B00
ref: 15
WASHER,BRAKE BOSS
€ 2.50
16
0112708257
ref: 16
01550-08257
BOLT
€ 2.50
17
0944314026
ref: 17
09443-14046
SPRING
€ 5.00
18
0920006037
ref: 18
09200-06068
PIN
€ 5.00
19
0411120158
ref: 19
04111-2015A
PIN
€ 1.50
20
0832221067
ref: 20
08322-01067
WASHER
€ 2.00
