FUEL COCK
GSX1100F 1993 (P) USA (E03)

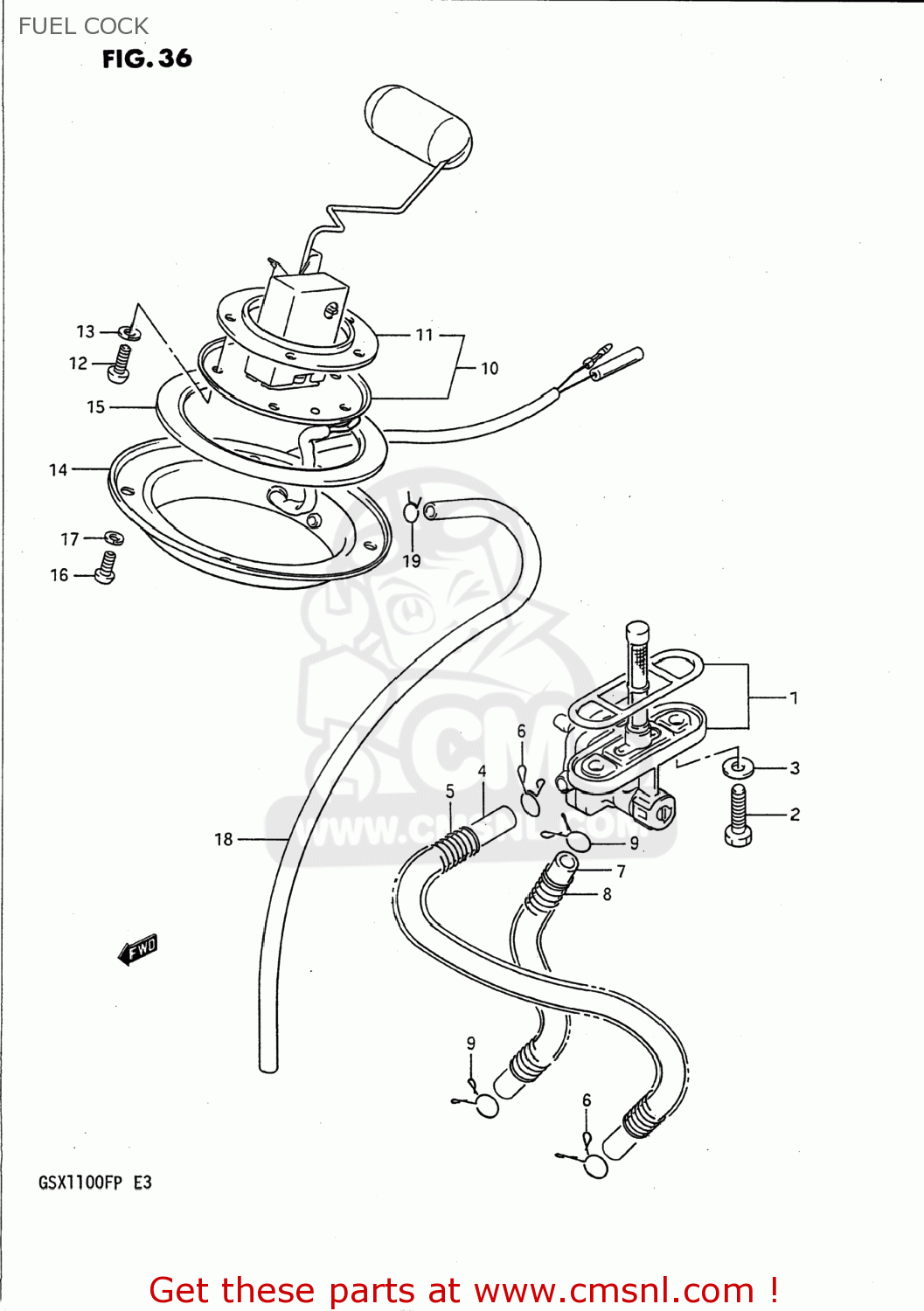

Fuel cock diagram GSX1100F 1993 (P) USA (E03)
FUEL COCK GSX1100F 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430048B10
ref: 1-1
44300-48B11
COCK ASSEMBLY,FUEL
€ 97.00
1-2
4430048B11
ref: 1-2
COCK ASSY,FUEL
€ 97.00
2
0912806006
ref: 2
09128-06057
BOLT(6X20)
€ 2.00
3-1
0916806023
ref: 3-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
3-2
0916806026
ref: 3-2
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935270103300
ref: 4
09352-70103-600
HOSE
€ 8.00
5
0944013047
ref: 5
SPRING
€ 6.00
6
0940110403
ref: 6
CLIP
€ 7.00
7
4443148B00
ref: 7
HOSE,FUEL NO.3
€ 9.00
8
0944013035
ref: 8
SPRING
€ 6.00
9
0940110201
ref: 9
09401-10201-XC0
CLIP
€ 2.00
10
3481048B00
ref: 10
GAUGE ASSY,FUEL LEVEL SENDER
€ 104.50
11
3482545100
ref: 11
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
12-1
0110705106
ref: 12-1
01500-0510B
BOLT
€ 1.50
12-2
0113405106
ref: 12-2
01570-0510B
BOLT
€ 2.00
13
0832121056
ref: 13
08321-0105A
LOCK WASHER
€ 3.00
14
3488540A00
ref: 14
PLATE,FUEL DRAIN
€ 21.00
15
3488840A00
ref: 15
GASKET,FUEL DRAIN PLATE (NAS)
€ 9.00
16-1
0211205086
ref: 16-1
02112-0508A
SCREW
€ 2.00
16-2
0211235086
ref: 16-2
02112-3508B
SCREW
€ 2.00
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18
093525082300B
ref: 18
HOSE(5X8.2X2000)
€ 13.00
19
0940108402
ref: 19
CLIP
€ 1.50
