AIR CLEANER

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

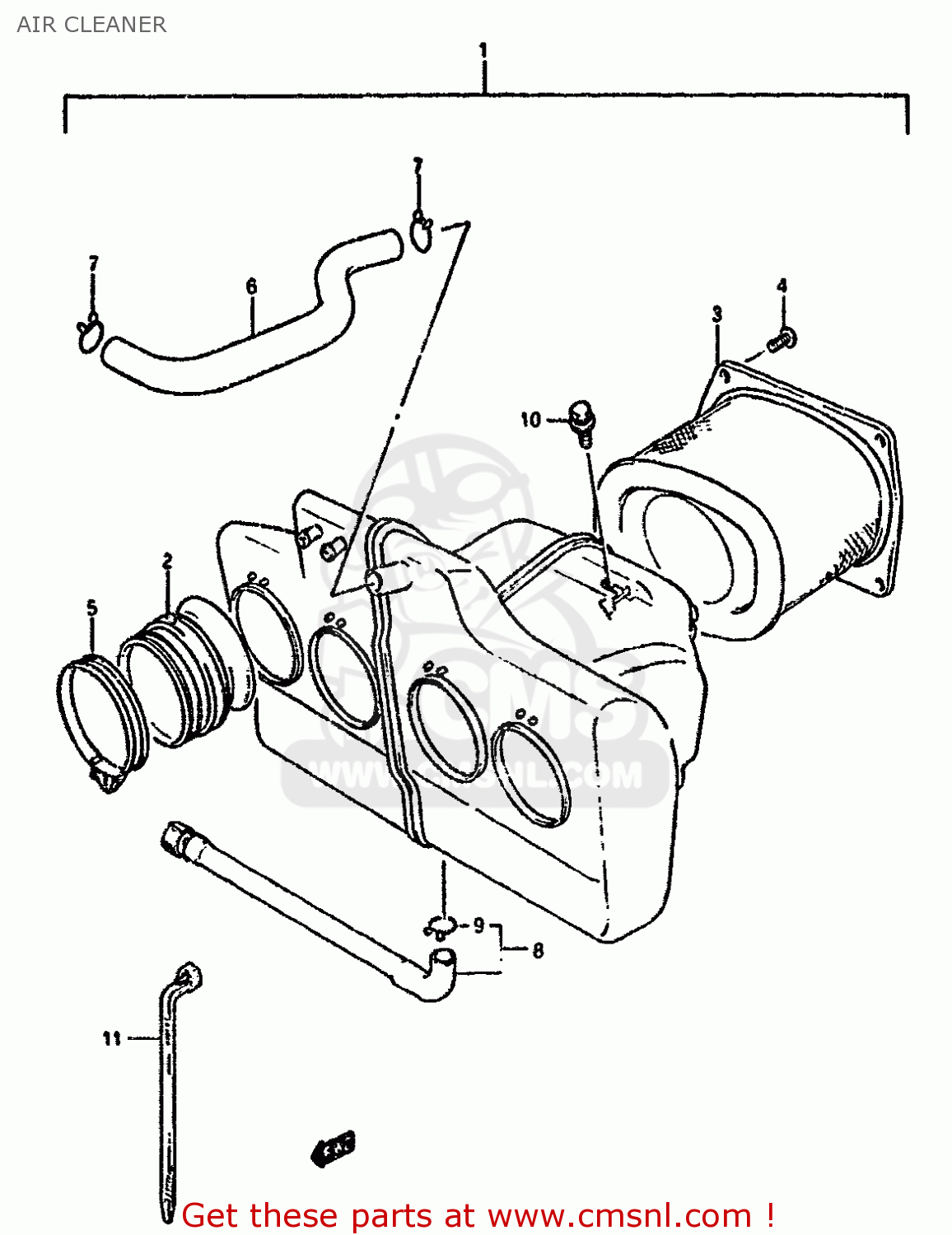

Air cleaner diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

prices are in EUR

ref

part #

description

quantity

1-1

1370026D00
ref: 1-1

CLEANER ASSEMBLY,AIR

€ 268.00

1-2

1370026D10
ref: 1-2
E18

CLEANER ASSY,AIR

€ 0.00

1388101D00
ref: 2

TUBE,OUTLET

€ 20.00

3-1

1378026D00
ref: 3-1

FILTER ASSY

€ 63.00

3-2

1378026D10
ref: 3-2
E18

FILTER ASSY,AIR

€ 64.50

0214205124
ref: 4

SCREW, FRONT & REAR

€ 1.50

0940268208
ref: 5

CLAMP

€ 6.00

1385326D00
ref: 6

TUBE,BREATHER

€ 14.50

1382448B10
ref: 7

CLIP

€ 3.00

8-1

1387026D00
ref: 8-1
MODEL M/N/P

DRAIN TUBE

€ 16.50

8-2

1387021308
ref: 8-2
MODEL R

TUBE,DRAIN

€ 16.50

1382400A00
ref: 9

CLIP

€ 2.50

0158006163
ref: 10

BOLT

€ 2.50

0940714403
ref: 11

CLAMP(L:125)

€ 2.50

AIR CLEANER

all assemblies
