REAR FENDER

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

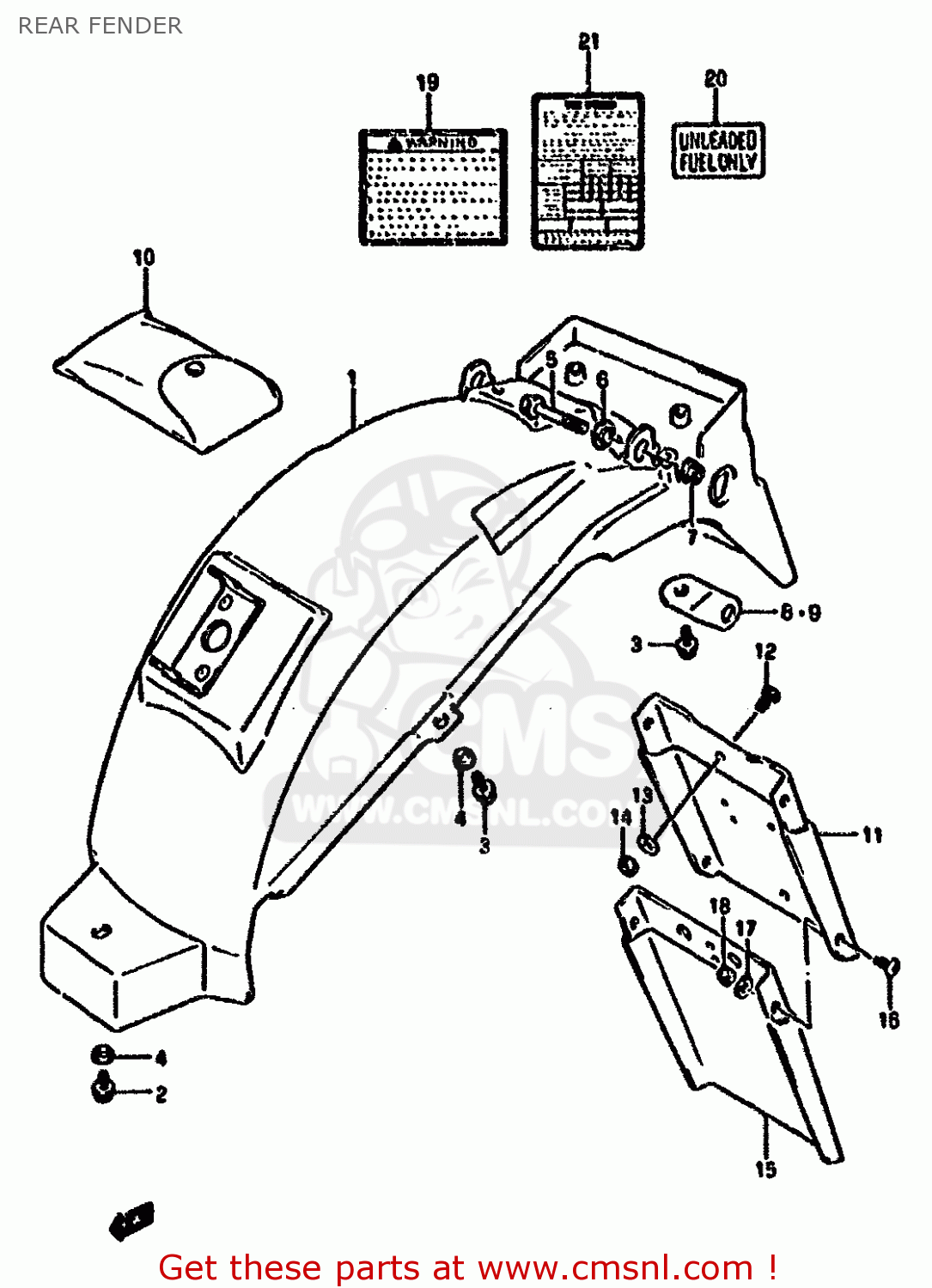

Rear fender diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

REAR FENDER GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
REAR FENDER GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
REAR FENDER GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
prices are in EUR
ref
part #
description
quantity
1-1
6311026D00
ref: 1-1
MODEL M/N/P E1,E4,E2
FENDER,REAR
€ 157.50
1-2
6311026D01
ref: 1-2
MODEL R E4,E24
FENDER,REAR
€ 157.50
1-3
6311026D10
ref: 1-3
MODEL M/N/P E15,E16,
FENDER,REAR
€ 101.50
1-4
6311026D11
ref: 1-4
MODEL R E18,E25
FENDER,REAR
€ 101.50
1-5
6311026D20
ref: 1-5
MODEL M/N E2,E21,E34
FENDER,REAR
€ 152.00
1-6
6311026D21
ref: 1-6
MODEL R E2
FENDER,REAR
€ 152.00
1-7
6311026D30
ref: 1-7
MODEL M/N E22
FENDER,REAR
€ 101.50
1-8
6311026D31
ref: 1-8
MODEL R E22
FENDER,RR
€ 101.50
2-1
0155006127
ref: 2-1
MODEL M/N/P
BOLT
0155006127
€ 2.50
2-2
0155006123
ref: 2-2
MODEL R
BOLT
0155006123
€ 2.50
3-1
0155006167
ref: 3-1
MODEL M/N/P
BOLT
0155006167
€ 1.50
3-2
0155006163
ref: 3-2
MODEL R
BOLT
0155006163
€ 2.50
4
0916906037
ref: 4
WASHER
0916906037
€ 6.50
5-1
0155008557
ref: 5-1
MODEL M/N/P
BOLT
0155008557
€ 3.00
5-2
0155008553
ref: 5-2
MODEL R
BOLT
€ 3.00
6
0916908045
ref: 6
WASHER
0916908045
€ 2.00
7-1
0831610087
ref: 7-1
MODEL M/N/P
NUT
0831610087
€ 2.50
7-2
0831610083
ref: 7-2
MODEL R
NUT
0831610083
€ 3.00
8
3560826D00
ref: 8
REINFORCEMENT,REAR TURN SIGNAL
€ 6.00
9
3560926D00
ref: 9
REINFORCEMENT,REAR TURN SIGNAL
€ 6.00
10-1
0980020043
ref: 10-1
TOOL ASSY
€ 53.00
10-2
0980021016
ref: 10-2
E22
TOOL ASSY
0980021016
€ 53.00
11-1
6331126D00
ref: 11-1
E15,E16,E17,E25,E39
EXTENSION,REAR FENDER
6331126D00
€ 18.00
11-2
6331126D10
ref: 11-2
E18
EXTENSION,REAR FENDER
€ 0.00
11-3
6331126D20
ref: 11-3
E22
EXTENSION,RR FENDER
€ 19.00
12-1
0214206164
ref: 12-1
MODEL M/N/P E15,E16,
SCREW
0214206164
€ 2.50
12-2
0214206163
ref: 12-2
MODEL R E18,E22,E25
SCREW
0214206163
€ 2.50
13
0916006019
ref: 13
E15,E16,E17,E18,E22,
WASHER(6.5X16X1.2)
0916006019
€ 1.50
14
0831921065
ref: 14
E15,E16,E17,E18,E22,
NUT
0831921065
€ 2.50
15-1
6333148B02
ref: 15-1
MODEL M/N/P E18
MUD GUARD
6333148B02
€ 31.00
15-2
6333148B12
ref: 15-2
MODEL R E18
MUDGUARD,RR FENDER
6333148B12
€ 31.00
16-1
0214206164
ref: 16-1
MODEL M/N/P E18
SCREW
0214206164
€ 2.50
16-2
0214206163
ref: 16-2
MODEL R E18
SCREW
0214206163
€ 2.50
17
0916006019
ref: 17
E18
WASHER(6.5X16X1.2)
0916006019
€ 1.50
18
0831921065
ref: 18
E18
NUT
0831921065
€ 2.50
19-1
6831940C00
ref: 19-1
LABEL
6831940C00
€ 8.00
19-2
6831940C20
ref: 19-2
E18,E22,E39
LABEL, WARNING SAFETY
€ 8.00
19-3
6831940C30
ref: 19-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
19-4
6831940C40
ref: 19-4
E34
LABEL, WARNING SAFETY
€ 8.00
19-5
6831940C51
ref: 19-5
E53
LABEL
€ 8.00
20-1
8693273060
ref: 20-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
20-2
6862317D00
ref: 20-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
21-1
6833226D20
ref: 21-1
LABEL,TIRE AIR PRESSURE
€ 0.00
21-2
6833226D30
ref: 21-2
E4
LABEL,TIRE AIR PRESSURE
€ 0.00
22-1
9901126D5001L
ref: 22-1
MODEL M NOT SHOWN
O.M. GSX1100G
9901126D5001L
€ 21.00
22-2
9901126D50032
ref: 22-2
MODEL M E15,E16,E17,
MANUAL,OWNER'S
€ 0.00
22-3
9901126D5018R
ref: 22-3
MODEL M E18,E22,E34,
MANUAL,OWNER'S
€ 0.00
22-4
9901126D5101L
ref: 22-4
MODEL N NOT SHOWN
MANUAL,OWNER'S
9901126D5101L
€ 21.00
22-5
9901126D51032
ref: 22-5
MODEL N E15,E16,E17
MANUAL,OWNER'S
€ 0.00
22-6
9901126D5118R
ref: 22-6
MODEL N E18,E22,E39
MANUAL,OWNER'S
€ 0.00
22-7
9901126D5218R
ref: 22-7
MODEL P E18 NOT SHOW
MANUAL,OWNER'S
€ 29.50
22-8
9901126D5301L
ref: 22-8
MODEL R E2,E4,E24,E2
MANUAL OWNER'S
€ 0.00
22-9
9901126D5318R
ref: 22-9
MODEL R E18,E22
MANUAL OWNER'S
€ 0.00
