OIL PAN

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

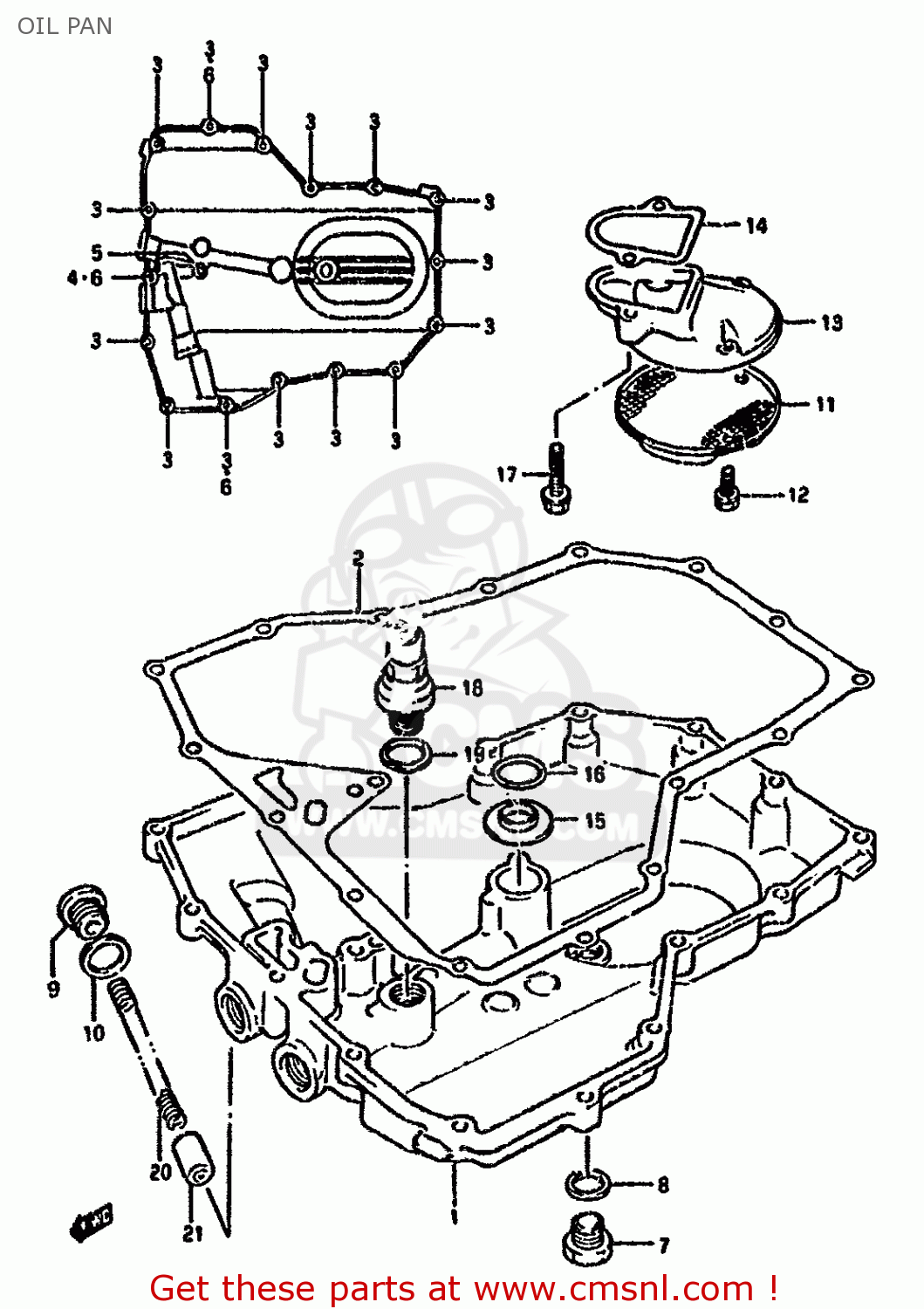

Oil pan diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

OIL PAN GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
OIL PAN GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
OIL PAN GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
prices are in EUR
ref
part #
description
quantity
1-1
1151126D00
ref: 1-1
MODEL M/N
PAN,OIL
€ 279.50
1-2
1151126D10
ref: 1-2
MODEL P/R
PAN,OIL
€ 279.50
2
1148926D01
ref: 2
GASKET,OIL PAN (NAS)
1148926D01
€ 28.50
3-1
0154706257
ref: 3-1
MODEL M/N/P
BOLT
0154706257
€ 2.50
3-2
0154706253
ref: 3-2
MODEL R
SCREW
0154706253
€ 2.50
4-1
0154706407
ref: 4-1
MODEL M/N/P
BOLT
0154706407
€ 2.50
4-2
0154706403
ref: 4-2
MODEL R
BOLT
0154706403
€ 3.00
5-1
0154706507
ref: 5-1
MODEL M/N/P
BOLT
0154706507
€ 2.50
5-2
0154706503
ref: 5-2
MODEL R
BOLT
0154706503
€ 3.50
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
7
0924714001
ref: 7
PLUG
0924714001
€ 5.00
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
9
0924816010
ref: 9
09248-16012
PLUG
0924816010
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
11
1652009301
ref: 11
STRAINER,ENGINE OIL
1652009301
€ 14.00
12-1
0113706128
ref: 12-1
MODEL M/N/P
BOLT
€ 2.50
12-2
0157006123
ref: 12-2
MODEL R
BOLT
0157006123
€ 1.50
13
1652548B01
ref: 13
PROTECTOR,OIL STRAINER
€ 18.00
14
1652827A20
ref: 14
16528-27A10
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A20
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
17-1
0155006257
ref: 17-1
MODEL M/N/P
BOLT
0155006257
€ 2.50
17-2
0155006253
ref: 17-2
MODEL R
BOLT
0155006253
€ 2.50
18
1644017C00
ref: 18
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
20
0944009027
ref: 20
SPRING
0944009027
€ 4.50
21
1644234301
ref: 21
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
