FUEL PUMP

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

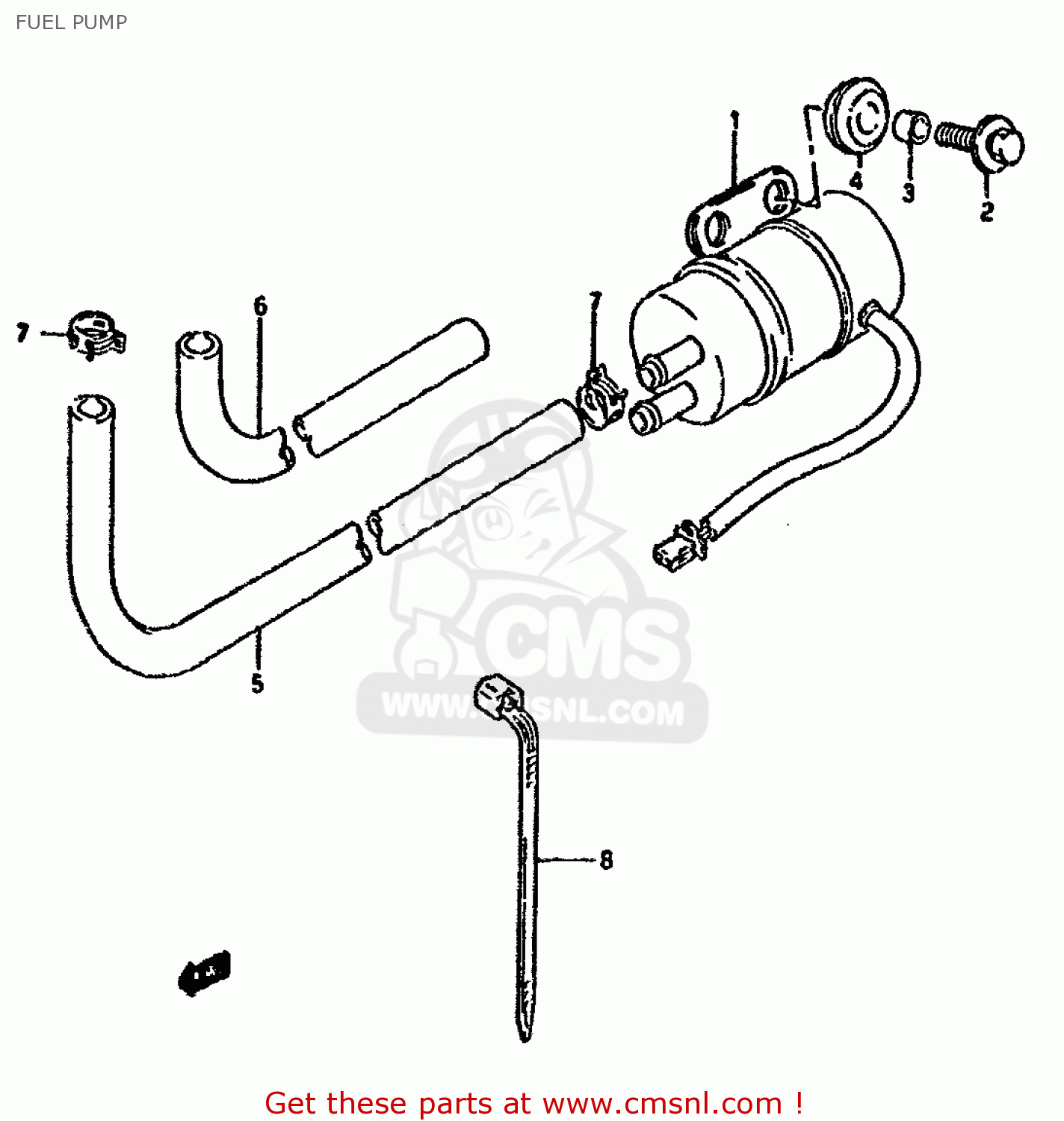

Fuel pump diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

prices are in EUR

ref

part #

description

quantity

1510026D00
ref: 1

PUMP ASSY,FUEL

€ 260.50

0911606010
ref: 2

BOLT(6X20)

€ 2.00

0918006011
ref: 3

SPACER (6.1X9X9)

€ 2.00

0932009026
ref: 4

CUSHION

€ 4.00

093547013300A
ref: 5
L:1000 620

HOSE (7X13X1000)

€ 36.00

0935114152600
ref: 6
L:600 580

PROTECTOR(14.5X15.5X600)

€ 9.00

0940112404
ref: 7

CLIP

€ 2.50

0940714403
ref: 8
MODEL M

CLAMP(L:125)

€ 2.50
