CRANKCASE

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

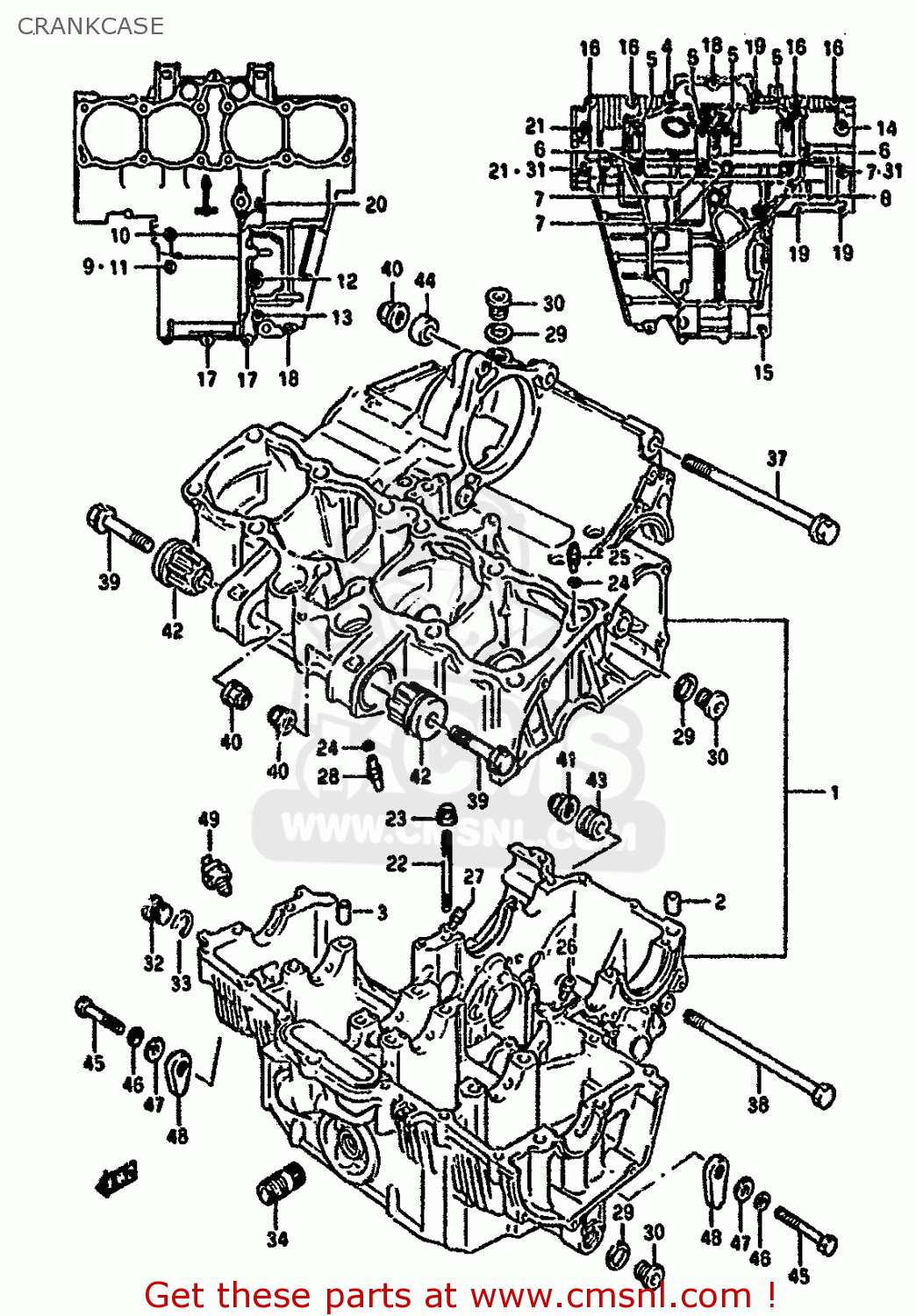

Crankcase diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

CRANKCASE GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
CRANKCASE GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
CRANKCASE GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)
prices are in EUR
ref
part #
description
quantity
1-1
1130126851
ref: 1-1
MODEL M/N/P
CRANKCASE SET
€ 1,934.50
1-2
1130126860
ref: 1-2
MODEL R
CRANKCASE SET
€ 1,934.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910306020
ref: 4
BOLT 6X100
€ 2.50
5
0910308209
ref: 5
BOLT 8X135
€ 7.00
6
0910308298
ref: 6
BOLT(8X145)
0910308298
€ 8.00
7
0910308301
ref: 7
BOLT
€ 5.50
8
0910306148
ref: 8
BOLT(6X120)
0910306148
€ 5.00
9
0916808016
ref: 9
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
10-1
0713008507
ref: 10-1
MODEL M/N/P
BOLT
0713008507
€ 3.00
10-2
0713008503
ref: 10-2
MODEL R
BOLT
0713008503
€ 3.50
11-1
0711008608
ref: 11-1
MODEL M/N/P
BOLT, REAR RH
0711008608
€ 4.50
11-2
0713008603
ref: 11-2
MODEL R
BOLT
€ 4.50
12-1
0711008708
ref: 12-1
MODEL M/N/P
BOLT
€ 4.00
12-2
0713008703
ref: 12-2
MODEL R
BOLT
€ 4.00
13-1
0711008758
ref: 13-1
MODEL M/N/P
BOLT
€ 0.00
13-2
0713008757
ref: 13-2
MODEL R
BOLT
€ 0.00
14
0910308300
ref: 14
BOLT(8X85)
€ 3.00
15-1
0713008808
ref: 15-1
MODEL M/N/P
BOLT
€ 3.00
15-2
0713008803
ref: 15-2
MODEL R
BOLT
€ 3.00
16-1
0151706358
ref: 16-1
MODEL M/N/P
BOLT 6X35
0151706358
€ 2.50
16-2
0155006353
ref: 16-2
MODEL R
BOLT
0155006353
€ 2.50
17-1
0151706408
ref: 17-1
MODEL M/N/P
BOLT
0151706408
€ 2.50
17-2
0155006407
ref: 17-2
MODEL R
BOLT
0155006407
€ 2.50
18
0151706608
ref: 18
BOLT (6X60)
€ 2.50
19-1
0151706557
ref: 19-1
MODEL M/N/P
BOLT
€ 2.50
19-2
0155006553
ref: 19-2
MODEL R
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20-1
0151706808
ref: 20-1
MODEL M/N/P
BOLT (6X80)
€ 3.00
20-2
0155006807
ref: 20-2
MODEL R
BOLT
0155006807
€ 3.00
21
0910308105
ref: 21
BOLT(8X95)
0910308105
€ 3.00
22
0142106708
ref: 22
STUD BOLT
€ 2.00
23-1
0915906017
ref: 23-1
MODEL M/N/P
NUT
0915906017
€ 2.50
23-2
0831610063
ref: 23-2
MODEL R
NUT
0831610063
€ 2.50
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
0928004004
€ 2.00
25
0949314002
ref: 25
JET,AIR
0949314002
€ 8.00
26
0949324010
ref: 26
JET
0949324010
€ 12.00
27
0949328012
ref: 27
JET(140)
€ 8.00
28
0949380011
ref: 28
JET
€ 10.50
29
0916816002
ref: 29
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
30
0924816008
ref: 30
PLUG
0924816008
€ 4.00
31
0916808021
ref: 31
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
32
0924814005
ref: 32
PLUG,14X12
0924814005
€ 5.00
33
0916814004
ref: 33
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
34
1659106B00
ref: 34
UNION,OIL STAND
1659106B00
€ 6.00
35
1222848B000E0
ref: 35
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
36-1
1222848B000C0
ref: 36-1
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(RED)
1222848B000C0
€ 7.50
36-2
1222848B000E0
ref: 36-2
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
36-3
1222848B000H0
ref: 36-3
BEARING,CRANK THRUST(BLACK)
1222848B000H0
€ 7.50
37
0910310167
ref: 37
BOLT L:165
€ 12.50
38
0910012066
ref: 38
BOLT 12X151
€ 13.50
39-1
0151710555
ref: 39-1
MODEL M/N/P
BOLT
€ 3.00
39-2
0155010553
ref: 39-2
MODEL R
BOLT
€ 3.00
40
0915910044
ref: 40
NUT (10MM)
€ 4.00
41
0831931125
ref: 41
NUT 12MM
€ 3.00
42
1168127A00
ref: 42
BUSH,ENGINE MOUNTING
1168127A00
€ 27.00
43-1
1161119B11
ref: 43-1
MODEL M/N
SPACER,ENGINE MOUNT
€ 10.00
43-2
1161119B12
ref: 43-2
MODEL P/R
SPACER,ENGINE MOUNT (L:13)
€ 10.00
44
1161136A50
ref: 44
SPACER,ENGINE MOUNT
1161136A50
€ 7.00
45
0910310051
ref: 45
BOLT 10X70
0910310051
€ 4.00
46-1
0832121104
ref: 46-1
MODEL M/N/P
WASHER,LOCK
0832121104
€ 3.00
46-2
0832101103
ref: 46-2
MODEL R
WASHER
0832101103
€ 3.00
47
0916010067
ref: 47
WASHER
€ 2.00
48
0915910020
ref: 48
NUT
0915910020
€ 7.50
49
3782033D00
ref: 49
37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
