STARTING MOTOR

GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

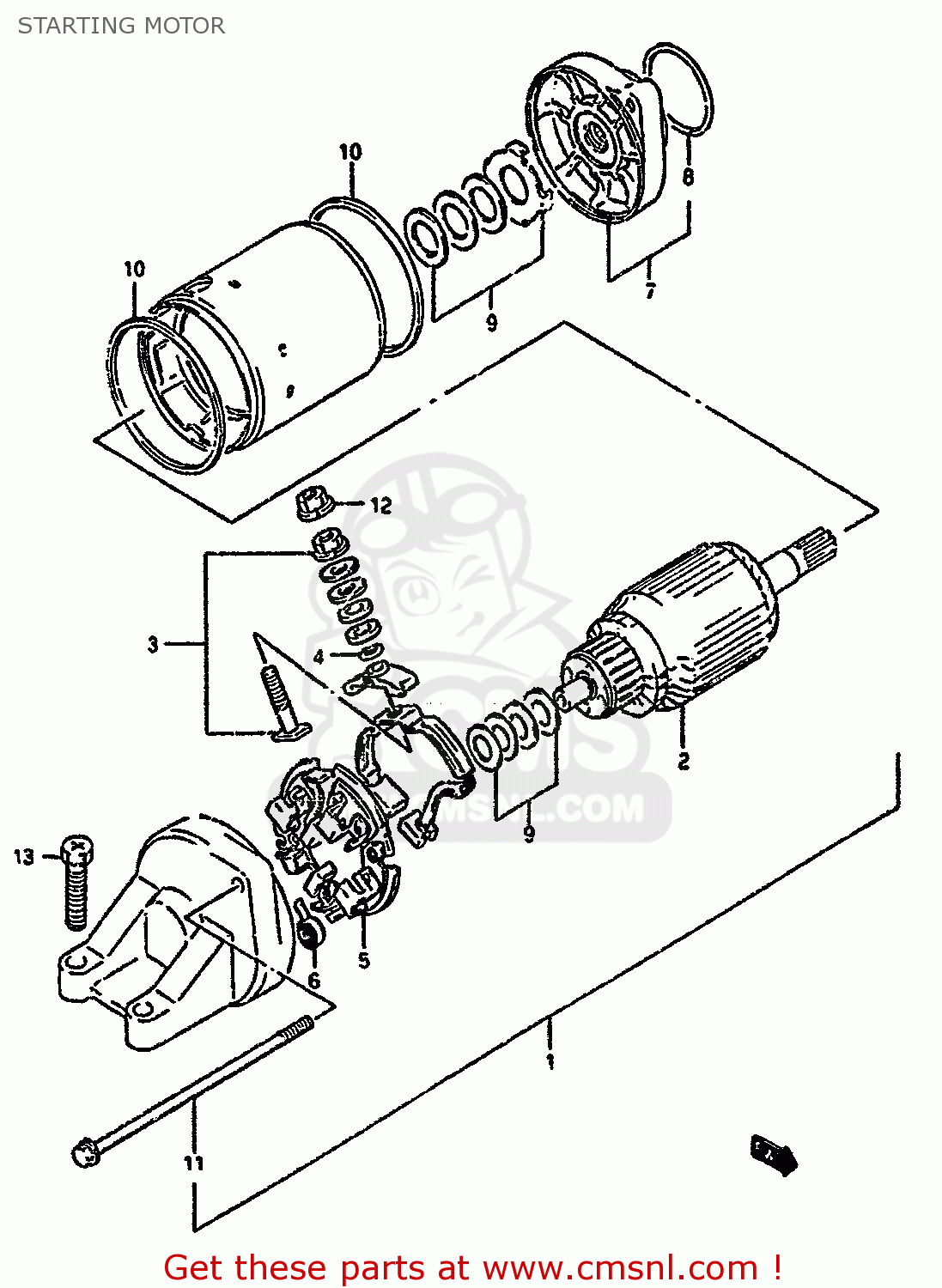

Starting motor diagram GSX1100G 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 39)

prices are in EUR

ref

part #

description

quantity

3110026D00
ref: 1

MOTOR ASSEMBLY,STARTING (SI

€ 943.50

3131040C02
ref: 2

ARMATURE

€ 261.50

3113038B00
ref: 3

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 4

O RING

€ 3.00

3113238B00
ref: 5

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 6

SPRING,BRUSH

€ 3.50

3115026D00
ref: 7

BRACKET ASSY,FR

€ 129.00

8-1

3115640C00
ref: 8-1
MODEL M/N/P

O-RING

€ 8.50

8-2

3115646E00
ref: 8-2
MODEL R

O-RING

€ 8.50

3117019B10
ref: 9

SHIM SET,STARTING MOTOR

€ 8.00

3126431300
ref: 10

O RING

€ 7.50

3128026D00
ref: 11

BOLT

€ 12.50

0836135066
ref: 12

NUT

€ 2.00

0912806024
ref: 13

SCREW (6X25)

€ 2.50
