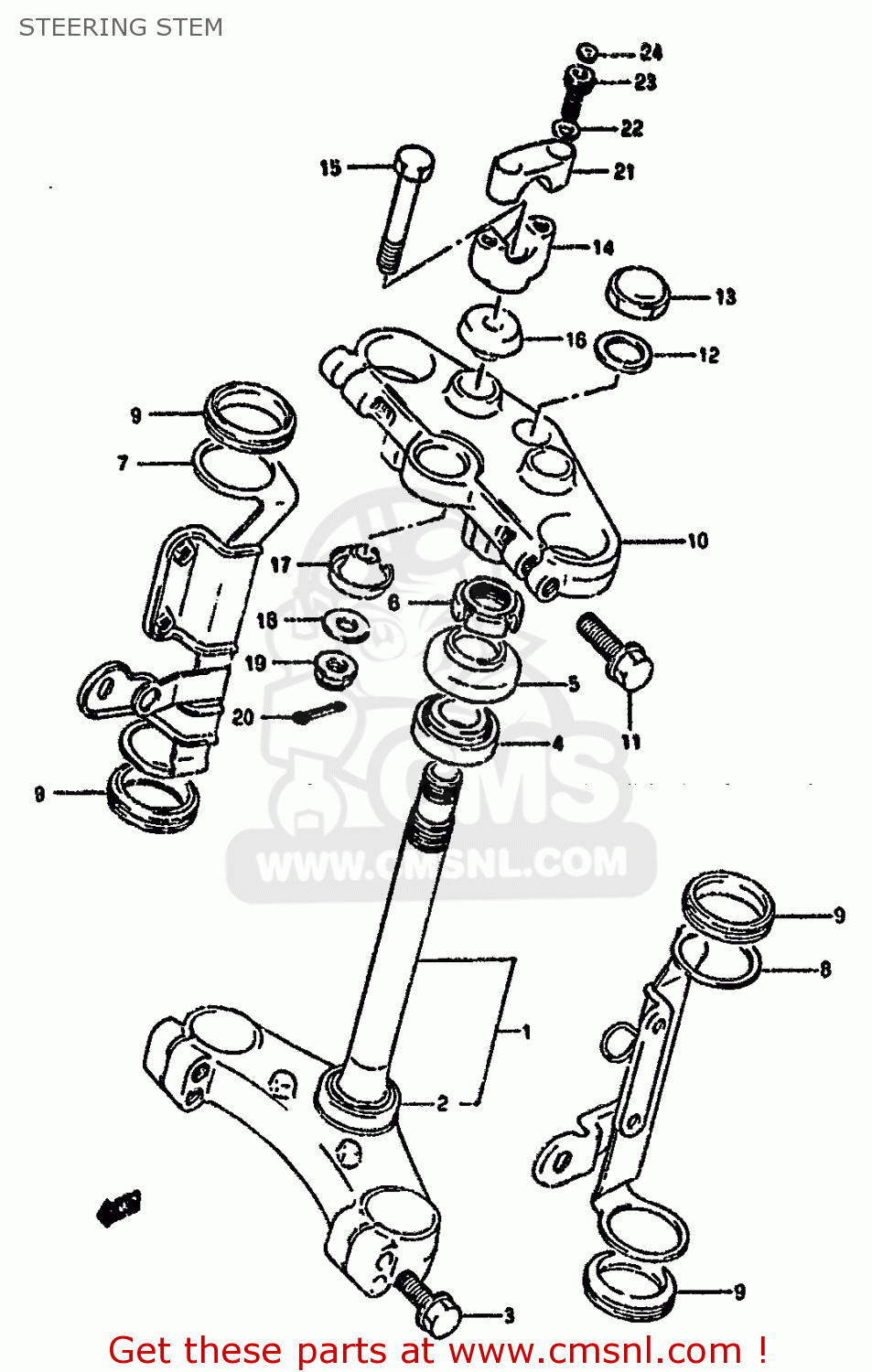

STEERING STEM

ref

part #

description

quantity

1

5141026D10
ref: 1

STEM,STEERING

€ 341.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0151708405
ref: 3
51328-26D00

BOLT 8X40

€ 3.50

4

0926525008
ref: 4

TAPER,ROLLER BEARING

€ 48.50

5

5164349002
ref: 5
51643-49001

SEAL,STEERING UPR DUST

€ 7.50

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7-1

5153026D00
ref: 7-1
MODEL M/N

BRACKET COMP,HEADLAMP

€ 60.00

7-2

5153026D01
ref: 7-2
MODEL P/R

BRACKET,HEADLAMP HOUSING,R

€ 60.00

8-1

5154026D00
ref: 8-1
MODEL M/N

BRACKET,HEADLAMP,LEFT

€ 64.00

8-2

5154026D01
ref: 8-2
MODEL P/R

BRACKET,HEADLAMP HOUSING

€ 64.00

9

5155326D00
ref: 9

CUSHION,HEADLAMP BRACKET

€ 5.00

10

5131126D10
ref: 10

HEAD,STEERING STEM

€ 321.00

11

0155010453
ref: 11

BOLT

€ 3.00

12

5135624B01
ref: 12

WASHER(22.5X32X1.6)

€ 3.00

13

5135324B00
ref: 13

NUT,CAP

€ 21.50

14-1

5622126D00
ref: 14-1
MODEL M/N/P

HOLDER,HANDLE LOWER

€ 33.50

14-2

5622112E00
ref: 14-2
MODEL R

HOLDER,HANDLE LWR

€ 33.50

15

5632128C00
ref: 15

BOLT

€ 6.50

16

5624226D00
ref: 16

RUBBER,DAMPER,UPPER

€ 30.50

17

5624214200
ref: 17

DAMPER,LWR

€ 21.50

18

5135640400
ref: 18

WASHER,HANDLEBAR HOLDER

€ 2.00

19

0831931107
ref: 19

NUT

€ 3.00

20

0411120308
ref: 20

COTTER PIN

€ 1.00

21

5621126D00
ref: 21

HOLDER,HANDLE UPR

€ 26.00

22

0916408015
ref: 22

WASHER

€ 3.00

23

0713008307
ref: 23

BOLT

€ 4.50

24

0925006009
ref: 24

CAP(OD:14.5)

€ 3.50

all assemblies
