REAR COMBINATION LAMP

GSX1300R HAYABUSA 2009 (K9) USA (E03)

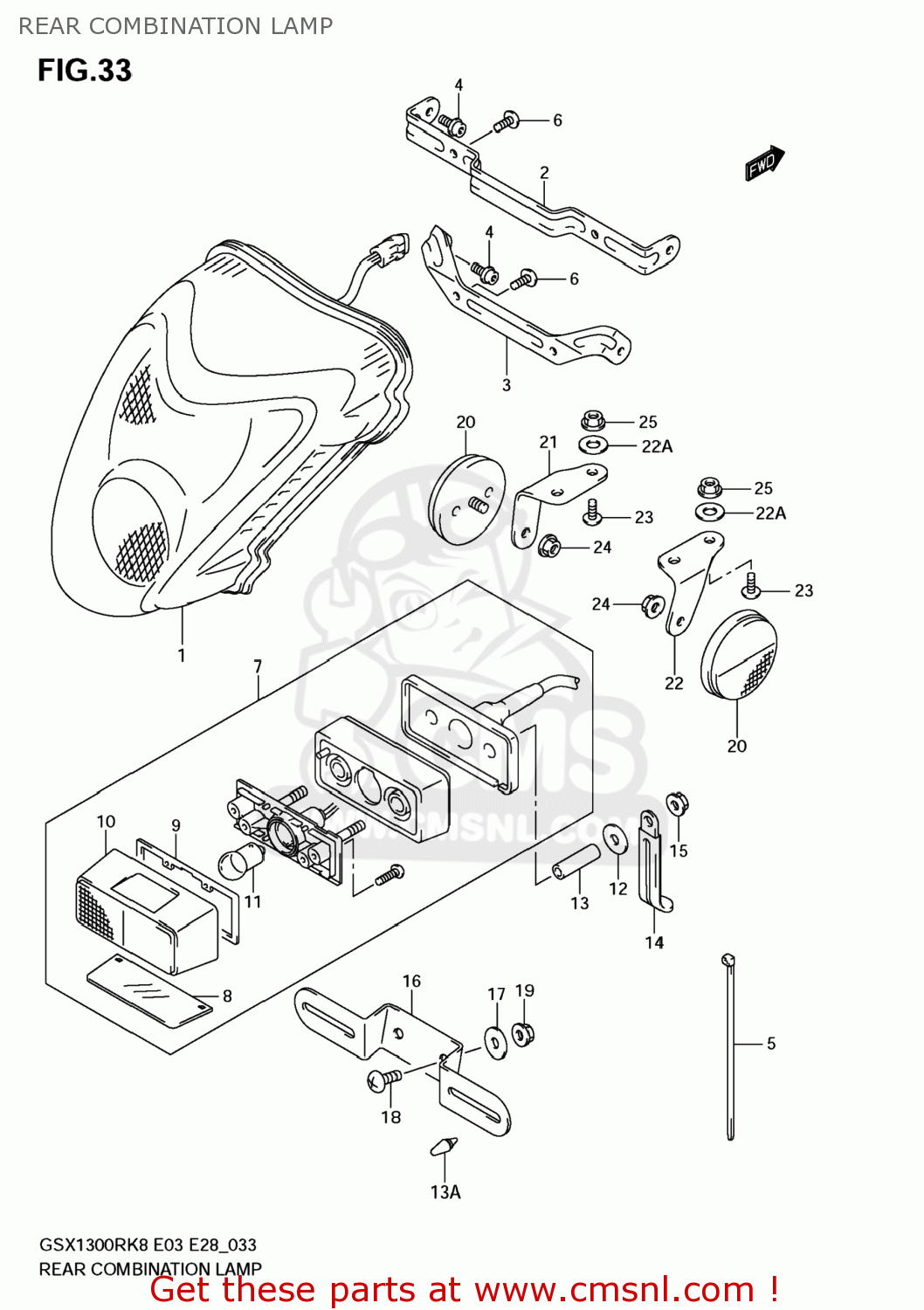

Rear combination lamp diagram GSX1300R HAYABUSA 2009 (K9) USA (E03)

REAR COMBINATION LAMP GSX1300R HAYABUSA 2009 (K9) USA (E03)
REAR COMBINATION LAMP GSX1300R HAYABUSA 2009 (K9) USA (E03)
REAR COMBINATION LAMP GSX1300R HAYABUSA 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571015H30
ref: 1
LAMP ASSY,RR COMBINATION
€ 306.50
2
3572615H00
ref: 2
BRACKET,RR COMBINATION LAMP
€ 6.00
3
3572615H10
ref: 3
BRACKET,RR COMBINATION LAMP
3572615H10
€ 6.00
4
0910605031
ref: 4
BOLT(5X12)
0910605031
€ 2.50
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
6
035410516A
ref: 6
SCREW
035410516A
€ 1.50
7
3591041G30
ref: 7
35910-41G31
LAMP ASSY,LICE
€ 62.50
8
3591241G00
ref: 8
LENS LICENCE
€ 19.50
9
3591341G00
ref: 9
GASKET (NAS)
€ 19.00
10
3591741G00
ref: 10
COVER,LICENSE LAMP
3591741G00
€ 27.00
11
0947112140
ref: 11
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
12
0916006077
ref: 12
WASHER(6.5X20X1.2)
0916006077
€ 2.00
13
0918006356
ref: 13
SPACER(6.5X9X34)
€ 3.00
13A
0932106028
ref: 13A
CUSHION
0932106028
€ 3.00
14
0940406429
ref: 14
CLAMP(L:45)
€ 2.50
15
083161006A
ref: 15
NUT
083161006A
€ 2.50
16
3592715H00
ref: 16
BRACKET,LICENSE PLATE
€ 8.50
17
0916006077
ref: 17
WASHER(6.5X20X1.2)
0916006077
€ 2.00
18
021420616A
ref: 18
SCREW
021420616A
€ 2.50
19
083161006A
ref: 19
NUT
083161006A
€ 2.50
20
3597014A20
ref: 20
REFLECTOR ASSY,RR SIDE
3597014A20
€ 11.00
21
3597515H00
ref: 21
BRACKET,RR SIDE RR,R
€ 5.50
22
3597615H00
ref: 22
BRACKET,RR SIDE RR,L
€ 5.50
22A
0916006126
ref: 22A
WASHER(6.5X14X2)
0916006126
€ 2.00
23
021420612A
ref: 23
SCREW
021420612A
€ 2.00
24
083161005A
ref: 24
NUT
083161005A
€ 2.50
25
083161006A
ref: 25
NUT
083161006A
€ 2.50
