STAND

GSX1300R HAYABUSA 2009 (K9) USA (E03)

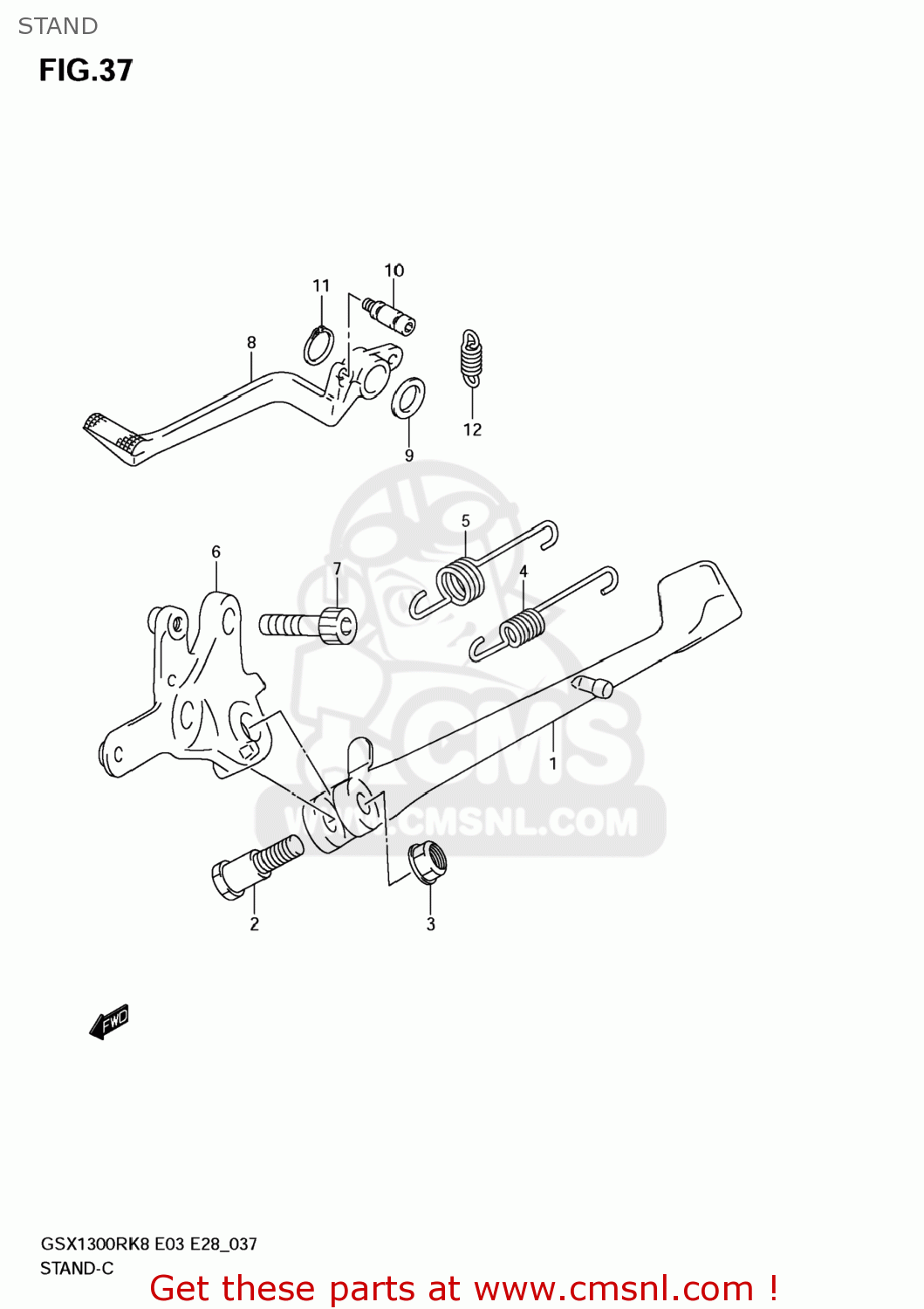

Stand diagram GSX1300R HAYABUSA 2009 (K9) USA (E03)

STAND GSX1300R HAYABUSA 2009 (K9) USA (E03)

STAND GSX1300R HAYABUSA 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231024F00
ref: 1

STAND,PROP

€ 109.50

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

0915910103
ref: 3

NUT

€ 3.00

4

0944314068
ref: 4

SPRING

€ 5.00

5

0944319015
ref: 5

SPRING

€ 5.00

6

4233024F01
ref: 6

BRACKET,PROP STAND

€ 104.00

7

0910612003
ref: 7

BOLT(12X35)

€ 3.50

8

4311124F00
ref: 8

PEDAL,BRAKE

€ 90.50

9

0916018022
ref: 9

WASHER(18X24X1)

€ 3.00

10

4356124F00
ref: 10

HOOK,RETURN SPRING

€ 8.00

11

083313118A
ref: 11

CIRCLIP

€ 2.00

12

0944313032
ref: 12

SPRING

€ 4.00
