STARTER CLUTCH
GSX1300R HAYABUSA 2009 (K9) USA (E03)

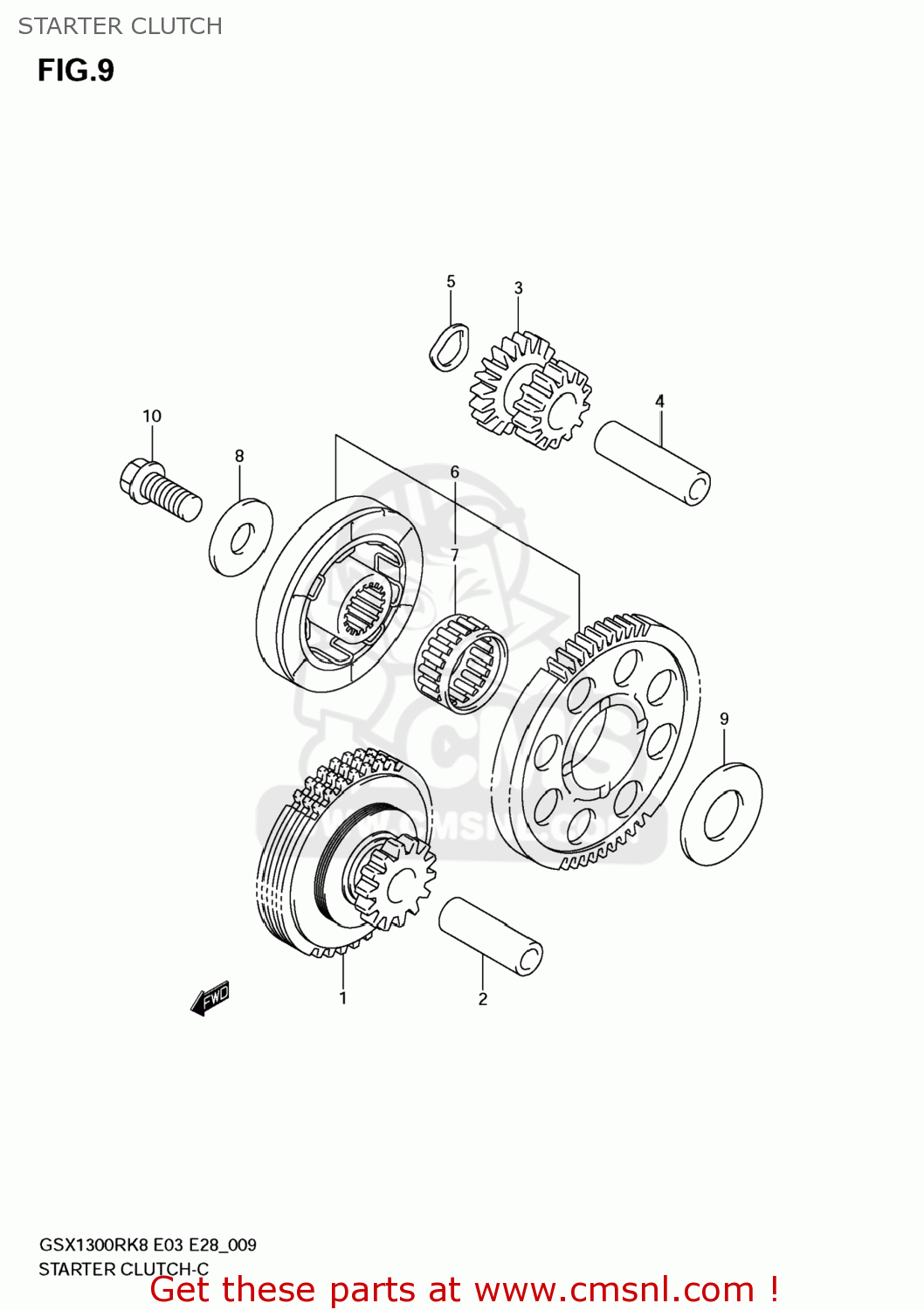

Starter clutch diagram GSX1300R HAYABUSA 2009 (K9) USA (E03)
STARTER CLUTCH GSX1300R HAYABUSA 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1260024F00
ref: 1
LIMITER ASSY,START ID GR NO.1
€ 180.00
1
1260024F00
ref: 1
LIMITER ASSY,START ID GR NO.1
€ 180.00
2
1261524F00
ref: 2
PIN,STARTER IDLE GEAR NO.1
€ 8.00
3
1261224F00
ref: 3
GEAR,STARTER IDLE NO.2
€ 49.50
3
1261224F00
ref: 3
GEAR,STARTER IDLE NO.2
€ 49.50
4
1215105200
ref: 4
PIN ,PISTON
€ 6.50
5
0916414008
ref: 5
WASHER
€ 2.50
6
1260024861
ref: 6
CLUTCH SET,STARTER
€ 332.00
7
0926328031
ref: 7
BEARING(28X34X16.8)
€ 27.00
8
0821110285
ref: 8
WASHER
€ 2.50
9
0821120403
ref: 9
WASHER
€ 3.50
10
0910310189
ref: 10
BOLT(10X23)
€ 4.50
