REAR MASTER CYLINDER

GSX1300R HAYABUSA 2009 (K9) USA (E03)

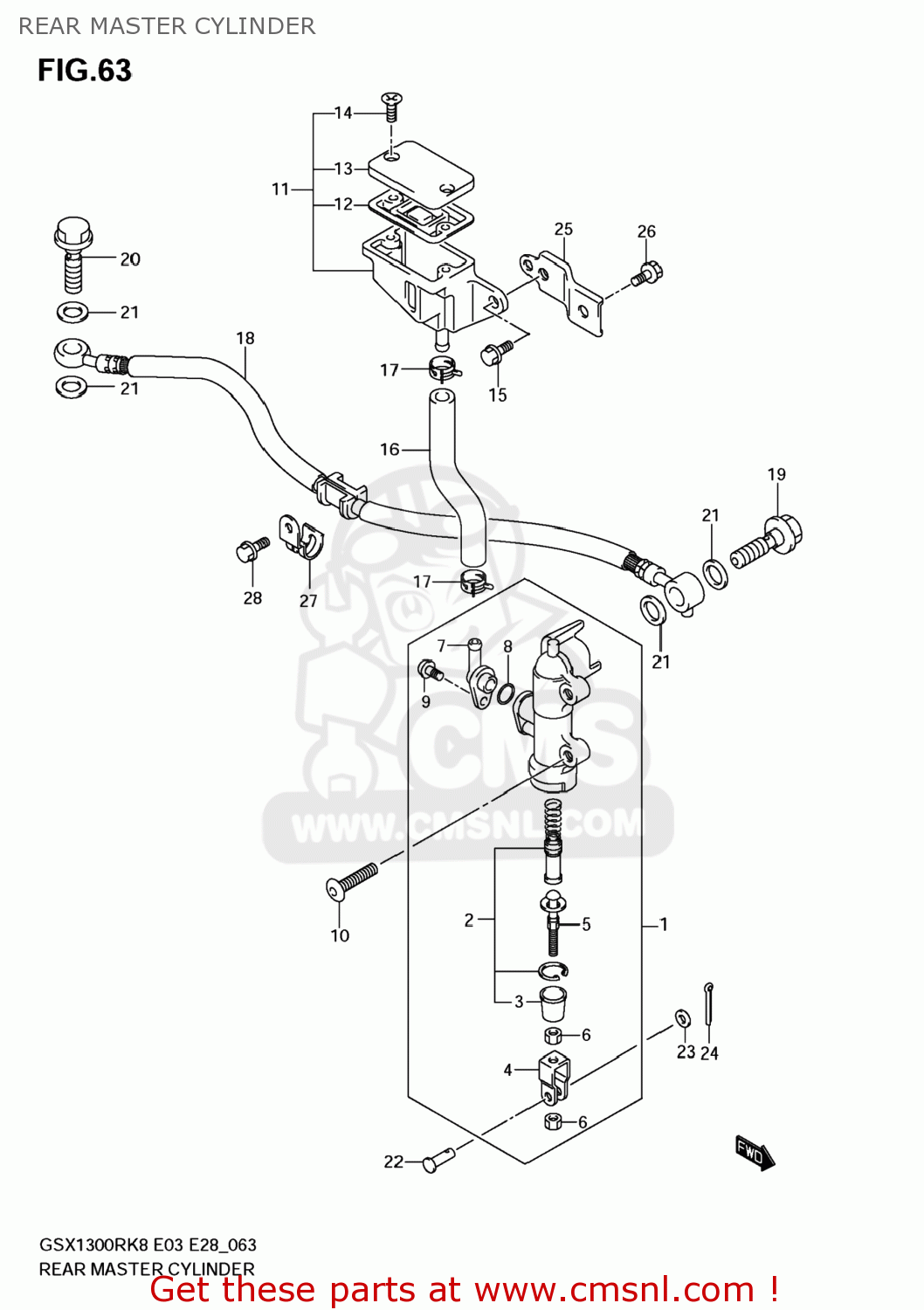

Rear master cylinder diagram GSX1300R HAYABUSA 2009 (K9) USA (E03)

REAR MASTER CYLINDER GSX1300R HAYABUSA 2009 (K9) USA (E03)
REAR MASTER CYLINDER GSX1300R HAYABUSA 2009 (K9) USA (E03)
REAR MASTER CYLINDER GSX1300R HAYABUSA 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960015H00
ref: 1
CYLINDER ASSY,RR MASTER
6960015H00
€ 177.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967027A30
ref: 5
ROD,PUSH
6967027A30
€ 13.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
021127412A
ref: 9
SCREW
021127412A
€ 2.50
10
0913906028
ref: 10
SCREW(6X20)
0913906028
€ 3.50
11
6974001D02
ref: 11
TANK ASSY,RR RESERVOIR
6974001D02
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13
5966905D00
ref: 13
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15
015470612A
ref: 15
BOLT
015470612A
€ 2.00
16
6973124F00
ref: 16
HOSE,RESERVOIR TANK
€ 13.00
17
0940113417
ref: 17
CLIP
0940113417
€ 2.50
18
6948015H00
ref: 18
HOSE,RR BRAKE
6948015H00
€ 62.50
19
0936010061
ref: 19
BOLT UNION
0936010061
€ 6.50
20
0936010062
ref: 20
BOLT UNION
0936010062
€ 5.00
21
0916110009
ref: 21
WASHER(10X15X1.5)
0916110009
€ 2.00
22
0920006068
ref: 22
PIN(6X18.2)
0920006068
€ 5.00
23
083220106A
ref: 23
WASHER
083220106A
€ 2.00
24
041112015A
ref: 24
PIN
041112015A
€ 1.50
25
6975015H00
ref: 25
BRACKET,RR RESERVOIR TANK
6975015H00
€ 8.50
26
015500612A
ref: 26
BOLT
015500612A
€ 2.50
27
6926815H00
ref: 27
CLAMP,RR BRAKE HOSE
6926815H00
€ 9.00
28
015470612A
ref: 28
BOLT
015470612A
€ 2.00
