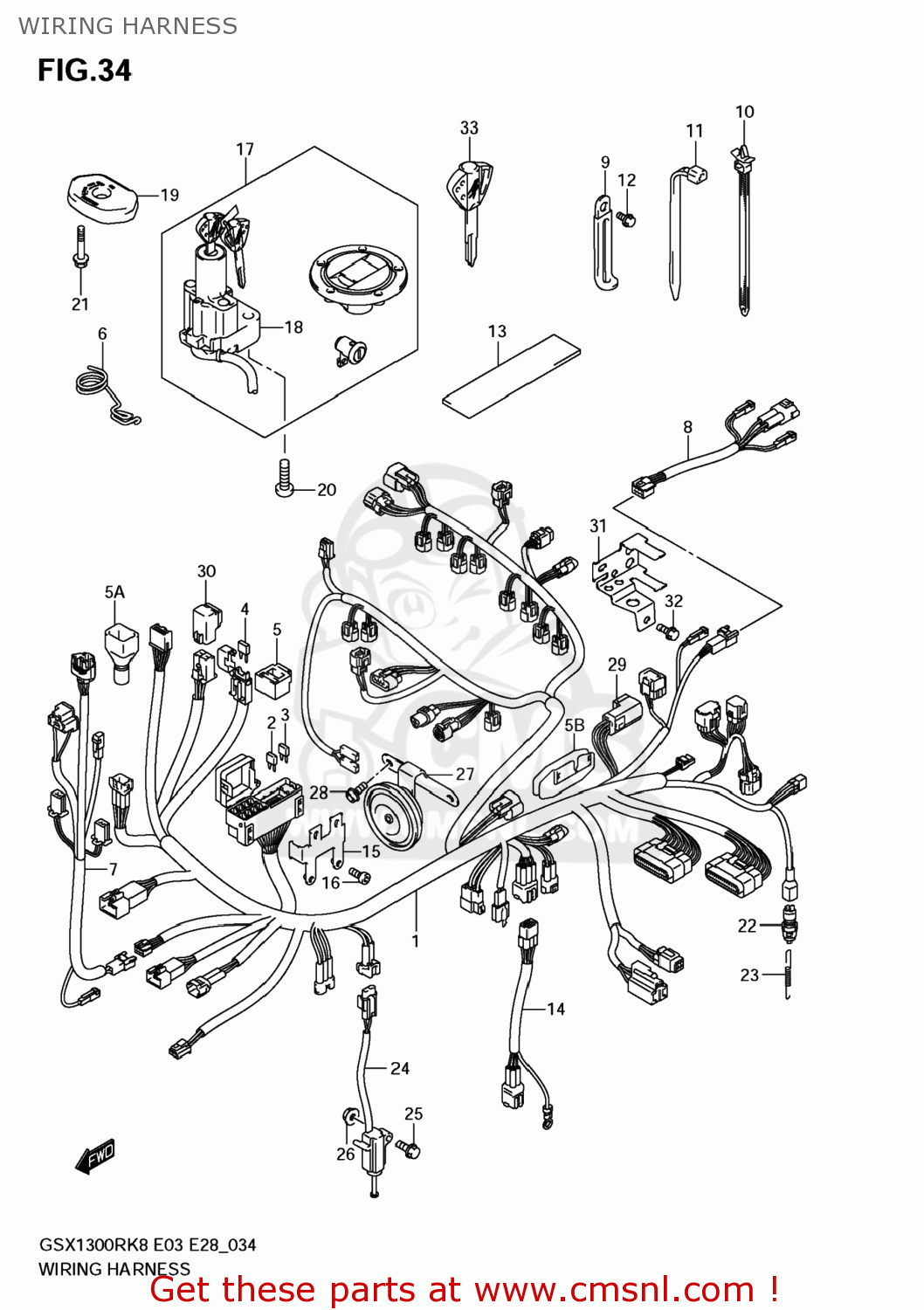

WIRING HARNESS

ref

part #

description

quantity

1-1

3661015H30
ref: 1-1

HARNESS,WIRING

€ 966.00

1-2

3661015H40
ref: 1-2

HARNESS,WIRING

€ 723.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

0948115101
ref: 4

FUSE(15A)

€ 1.50

5

3674239D00
ref: 5

HOLDER,FUSE

€ 15.00

5A

3661833E00
ref: 5A

COVER,SPEEDOMETER COUPLER

€ 5.50

5B

3661124F00
ref: 5B

PROTECTOR,WIRING HARNESS

€ 7.50

6

3661915H00
ref: 6

GUIDE,WIRING HARNESS

€ 12.00

7

3662015H00
ref: 7

HARNESS,WIRING NO.2

€ 114.50

8

3685715H00
ref: 8

WIRE,RR COMB

€ 35.50

9-1

0940406429
ref: 9-1

CLAMP(L:45)

€ 2.50

9-2

0940406435
ref: 9-2

CLAMP(L:135)

€ 2.50

10

0940714408
ref: 10
09407-17402

CLAMP(L:120)

€ 5.00

11-1

0940714403
ref: 11-1

CLAMP(L:125)

€ 2.50

11-2

0940718402
ref: 11-2

CLAMP(L:165)

€ 2.50

12

015500610A
ref: 12

BOLT

€ 2.00

13

3692045G00
ref: 13

PROTECTOR,WIRING HARNESS

€ 2.50

14

3685515H00
ref: 14

WIRE,O2 SENSOR

€ 63.00

15

3674424F00
ref: 15

BRACKET,FUSE BOX

€ 7.50

16

071200510B
ref: 16

BOLT

€ 2.00

17-1

3700015880
ref: 17-1

LOCK SET

€ 512.00

17-2

3700015890
ref: 17-2

LOCK SET

€ 285.50

18

3710015H30
ref: 18

LOCK ASSY,STEERING

€ 129.00

19

3718015H00
ref: 19

COVER,STEERING LOCK

€ 28.00

20

0913908016
ref: 20

BOLT(8X20)

€ 3.50

21

015470530A
ref: 21

BOLT

€ 2.00

22

3774019F00
ref: 22

SWITCH ASSY,STOP LAMP

€ 21.00

23

0944306012
ref: 23

SPRING

€ 3.00

24

3784024F00
ref: 24

SWITCH ASSY,SIDE STAND

€ 63.50

25

0910308357
ref: 25

BOLT(8X35)

€ 2.00

26

083161008B
ref: 26

NUT

€ 3.00

27

3850024F00
ref: 27

HORN ASSY

€ 83.00

28

015500612B
ref: 28

BOLT

€ 2.50

29

3874026E00
ref: 29

RELAY ASSY

€ 32.50

30

3874026E00
ref: 30

RELAY ASSY

€ 32.50

31

3874124F00
ref: 31

BRACKET,FUEL PUMP RLY

€ 5.00

32

015500612B
ref: 32

BOLT

€ 2.50

33

3714615H00
ref: 33

KEY,BLANK

€ 97.50
