CAM CHAIN (MODEL Z)

GSX250E 1983 (D) GENERAL EXPORT (E01)

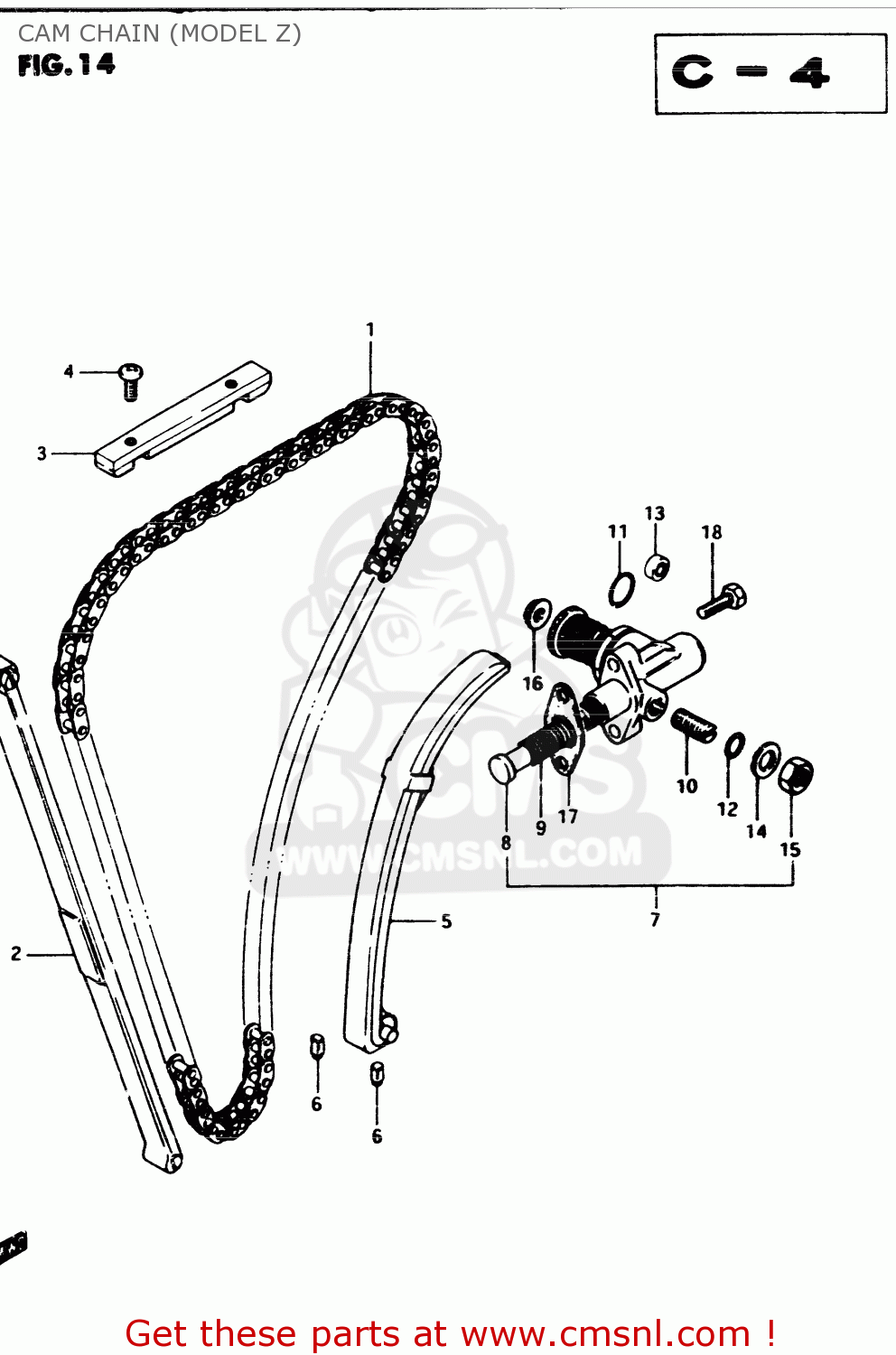

Cam chain (model z) diagram GSX250E 1983 (D) GENERAL EXPORT (E01)

CAM CHAIN (MODEL Z) GSX250E 1983 (D) GENERAL EXPORT (E01)

CAM CHAIN (MODEL Z) GSX250E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1276011400
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 115.50

2

1277111401
ref: 2

GUIDE,CAM CHAIN NO.1

€ 37.50

3

1278247040
ref: 3

GUIDE,CAM CHAIN NO.3

€ 89.50

4

0211205128
ref: 4

SCREW

€ 2.50

5

1281011400
ref: 5

TENSIONER,CAM CHAIN

€ 62.50

6

1281444101
ref: 6

CUSHION,CAM CHAIN TENSIONER

€ 8.50

7

1283009300
ref: 7

ADJUSTER,CAM CHAIN TENSIONER

€ 167.00

8

1283347001
ref: 8

ROD,PUSH

€ 25.00

9

0944012017
ref: 9

SPRING

€ 2.50

10

1283845001
ref: 10

SCREW

€ 6.00

11

0928021013
ref: 11

O RING(D:2.4,ID:20.8)

€ 4.50

12

0928006005
ref: 12

O RING(D:1.9,ID:5.7)

€ 2.50

13

0928410006
ref: 13

SEAL,OIL(10X16X4)

€ 4.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

0831012088
ref: 15

NUT

€ 2.00

16

0915906017
ref: 16

NUT

€ 2.50

17

1283747000
ref: 17

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

18

0912806024
ref: 18

SCREW (6X25)

€ 2.50
