FRONT FORK (MODEL Z/D E24, GSX250SZ E24)

GSX250E 1983 (D) GENERAL EXPORT (E01)

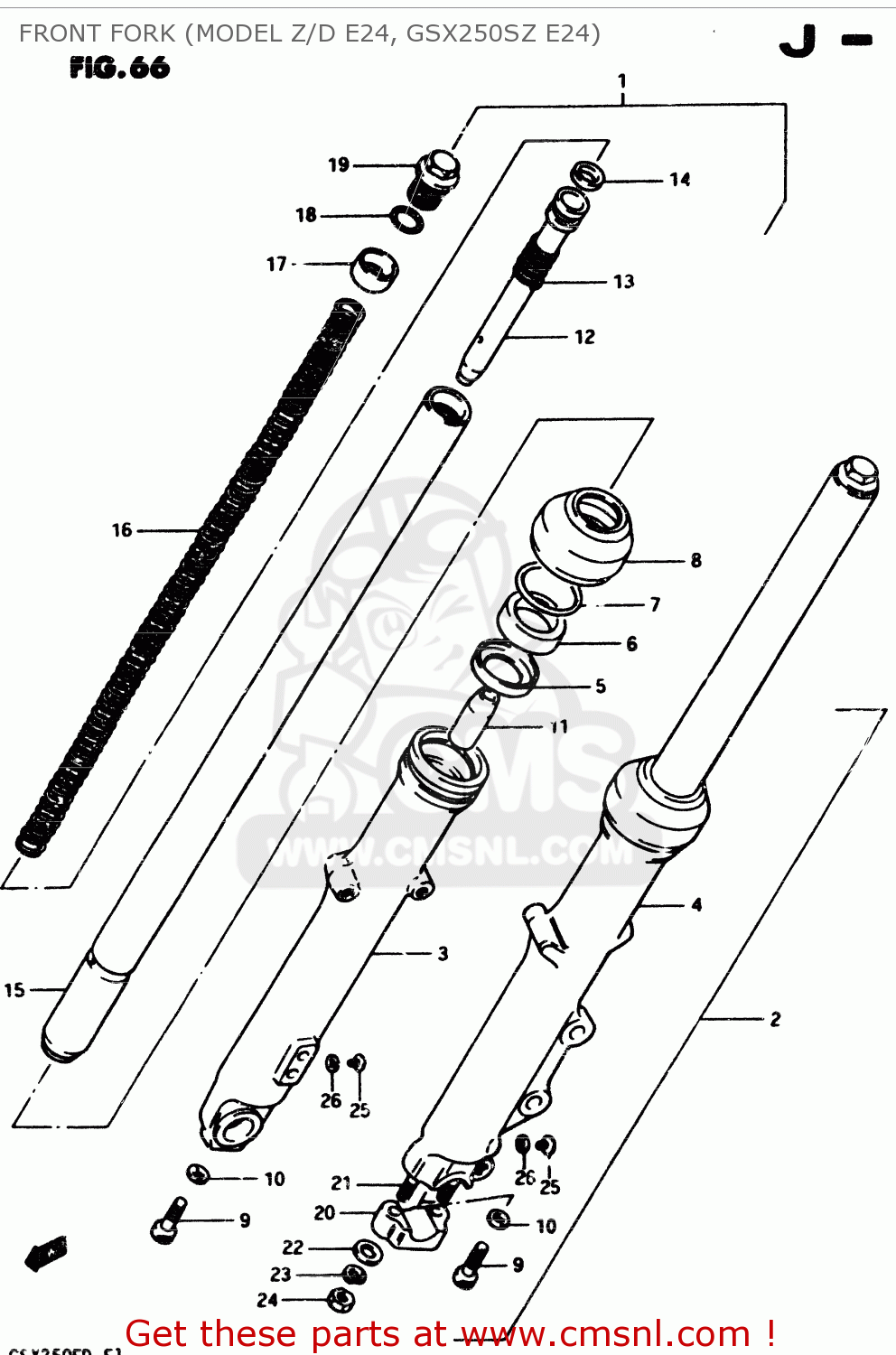

Front fork (model z/d e24, gsx250sz e24) diagram GSX250E 1983 (D) GENERAL EXPORT (E01)

FRONT FORK (MODEL Z/D E24, GSX250SZ E24) GSX250E 1983 (D) GENERAL EXPORT (E01)

FRONT FORK (MODEL Z/D E24, GSX250SZ E24) GSX250E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5110311510
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110411510
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113044170291
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 0.00

4

5114044170291
ref: 4

TUBE,FORK,LEFT,OUTER

€ 0.00

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115337310
ref: 6

OIL SEAL,FRONT FORK

€ 15.00

7

5115611420
ref: 7

RING,OIL SEAL STOPPER

€ 4.50

8

5157137310
ref: 8

DUST SEAL

€ 22.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114831030
ref: 10

GASKET (NAS)

€ 4.00

11

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

12

5114611400
ref: 12

CYLINDER,FRONT FORK

€ 43.00

13

5117736030
ref: 13

SPRING,REBOUND

€ 4.50

14

5119633130
ref: 14

RING,PISTON

€ 7.50

15

5111044030
ref: 15

TUBE,INNER

€ 197.50

16

5117111500
ref: 16

SPRING

€ 43.50

17

5117644030
ref: 17

SPACER,FRONT FORK SPRING

€ 0.00

18

5118131030
ref: 18

O RING

€ 3.50

19

5135133130
ref: 19

BOLT

€ 30.50

20

5113244040291
ref: 20

HOLDER,AXLE

€ 38.50

21

0142108258
ref: 21

STUD 8X25

€ 2.50

22

0832221088
ref: 22

WASHER

€ 2.00

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

0831012088
ref: 24

NUT

€ 2.00

25

0211204068
ref: 25

SCREW 4X6

€ 2.00

26

5118333030
ref: 26

GASKET (NAS)

€ 6.50
