FRONT WHEEL (GSX250Z/D E24, GSX250SZ E24)

GSX250E 1983 (D) GENERAL EXPORT (E01)

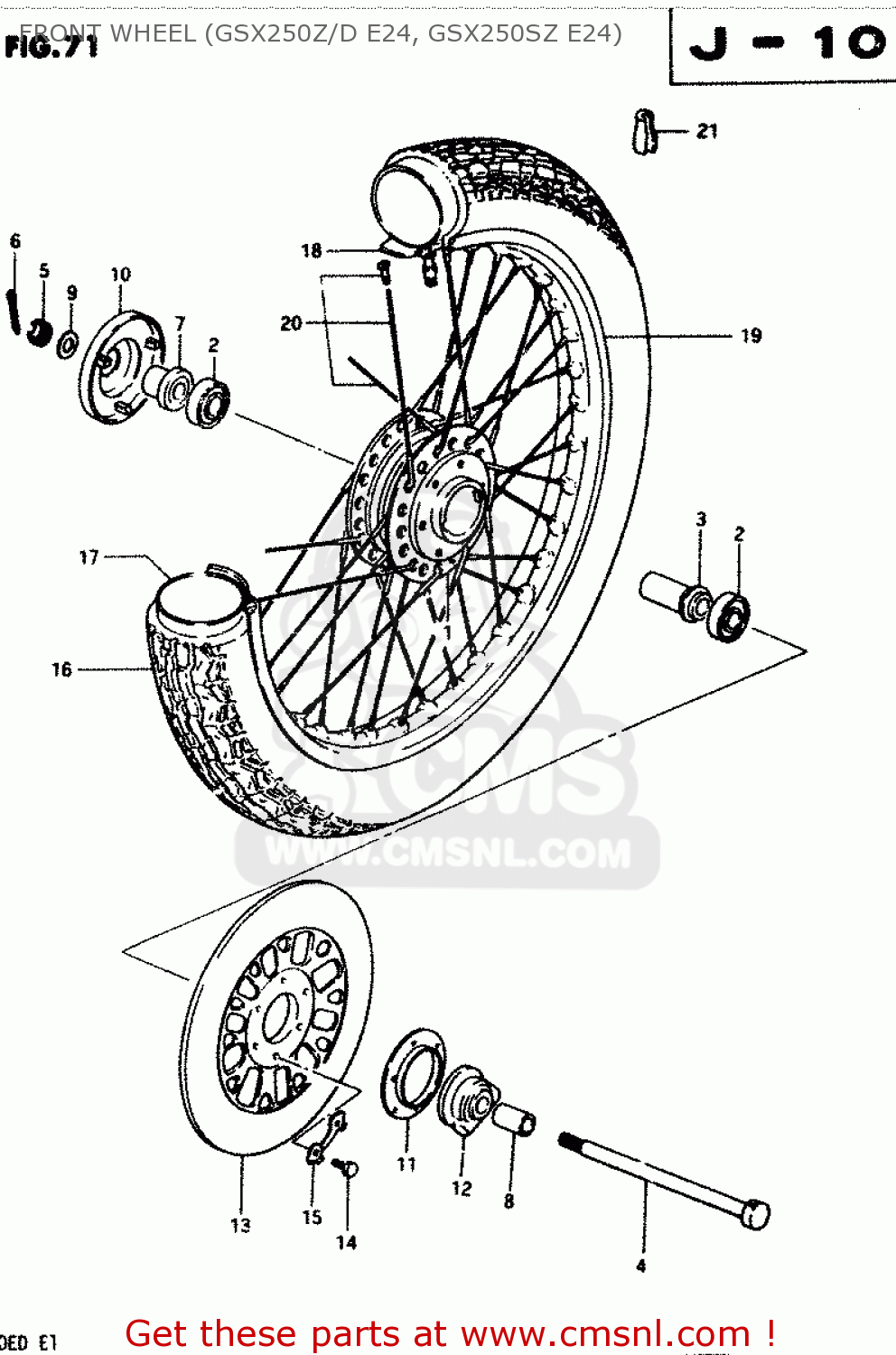

Front wheel (gsx250z/d e24, gsx250sz e24) diagram GSX250E 1983 (D) GENERAL EXPORT (E01)

FRONT WHEEL (GSX250Z/D E24, GSX250SZ E24) GSX250E 1983 (D) GENERAL EXPORT (E01)

FRONT WHEEL (GSX250Z/D E24, GSX250SZ E24) GSX250E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411147001
ref: 1

DRUM,FRONT HUB

€ 194.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

5474018410
ref: 7

SPACER,FR HUB BEARING,R

€ 17.00

8

0918015034
ref: 8

SPACER(15X22X30)

€ 7.00

9

0832221128
ref: 9

WASHER

€ 2.00

10

5487145000
ref: 10

COVER,FR HUB,R

€ 6.00

11

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

12

5460018402
ref: 12

BOX ASSY,SPEEDOMETER GEAR

€ 90.50

13

5921145200
ref: 13

DISC,FR BRAKE

€ 144.00

14

0910008140
ref: 14

BOLT(8X25)

€ 2.00

15

0916908016
ref: 15

WASHER

€ 3.50

16-1

5510044010
ref: 16-1
IRC

TIRE,FRONT

€ 123.00

16-2

5510044130
ref: 16-2
BS

TIRE,FRONT

€ 123.00

17-1

5520011601
ref: 17-1
IRC

TUBE,INNER

€ 24.50

17-2

5520018030
ref: 17-2
BS

TUBE,INNER

€ 24.50

18-1

5526111010
ref: 18-1
IRC

PROTECTOR,INNER TUBE

€ 3.50

18-2

5526118030
ref: 18-2
BS

PROTECTOR,WHEEL,INNER

€ 0.00

19

5531118420
ref: 19

RIM,FR WHEEL

€ 98.50

20

5532018420
ref: 20

SPOKE ASSY,FR WHEEL

€ 42.00

21-1

5541111000
ref: 21-1

BALANCER,WHEEL (B)

€ 4.50

21-2

5541211000
ref: 21-2

BALANCER,WHEEL (30G)

€ 8.00
