HEADLAMP (E4)
GSX250E 1983 (D) GENERAL EXPORT (E01)

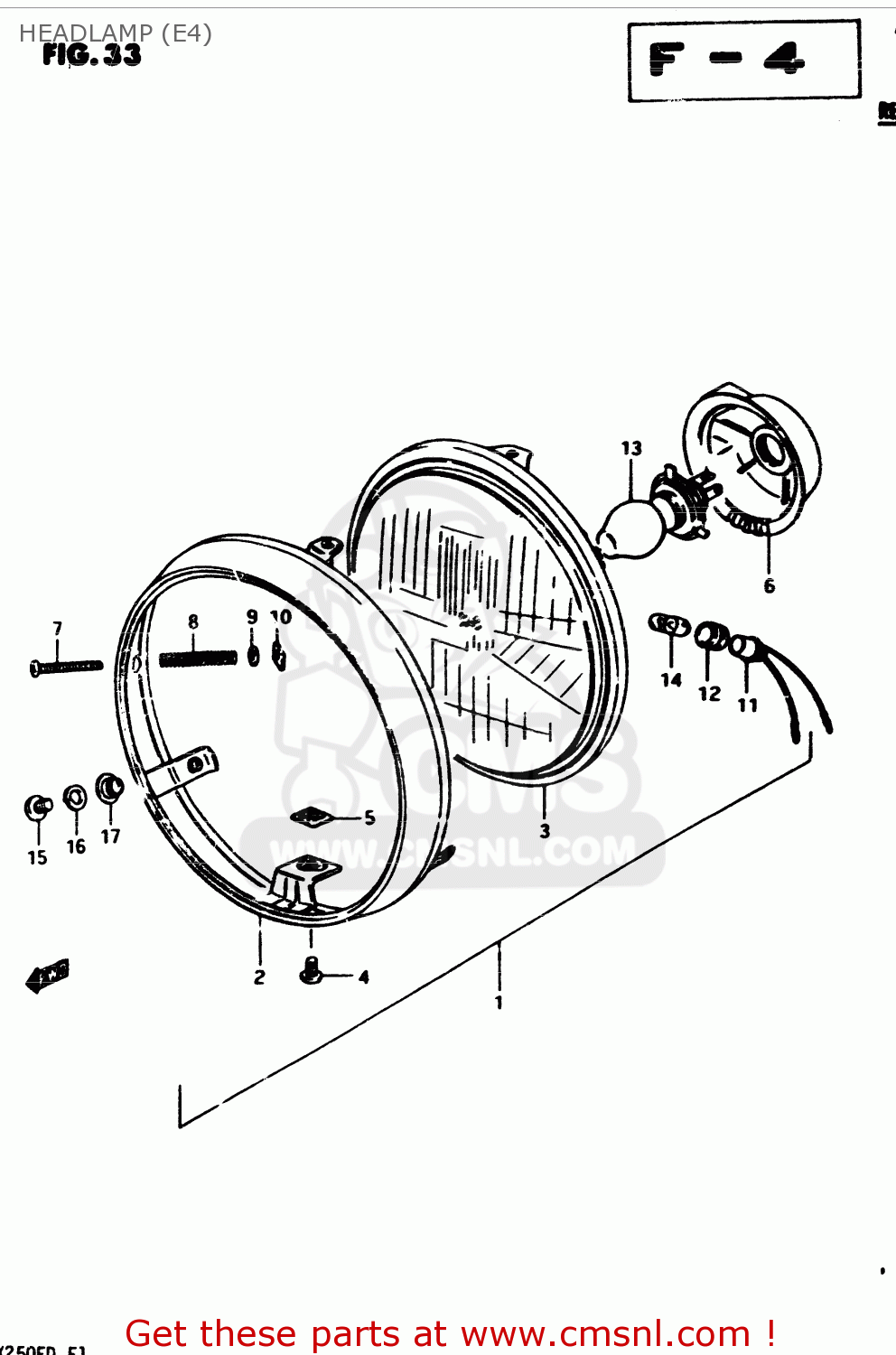

Headlamp (e4) diagram GSX250E 1983 (D) GENERAL EXPORT (E01)
HEADLAMP (E4) GSX250E 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510033240999
ref: 1
HEADLAMP ASSY
€ 153.50
2
3511133240
ref: 2
RIM
€ 40.50
3
3512133240
ref: 3
LAMP UNIT
€ 141.50
4
0211205088
ref: 4
SCREW
€ 2.00
5
3513512610
ref: 5
NUT,ADJUSTING
€ 2.00
6
3517345200
ref: 6
COVER,SOCKET
€ 14.00
7
3515133240
ref: 7
SCREW,HEADLAMP ADJUST
€ 3.50
8
3515448510
ref: 8
SPRING
€ 2.50
9
3515727630
ref: 9
WASHER
€ 2.50
10
3515248510
ref: 10
NUT,HEADLAMP ADJUSTER
€ 3.00
11
3611830691
ref: 11
SOCKET
€ 12.00
12
3611622630
ref: 12
JOINT,RUBBER
€ 5.00
13
0947112061
ref: 13
EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
14
0947112063
ref: 14
EXECUTED LOCALLY
BULB(12V4W)
€ 6.00
15
0912505022
ref: 15
SCREW
€ 3.50
16
0916205003
ref: 16
WASHER,LOCK
€ 2.00
17
0916906021
ref: 17
WASHER
€ 2.50
