SEAT
GSX250E 1983 (D) GENERAL EXPORT (E01)

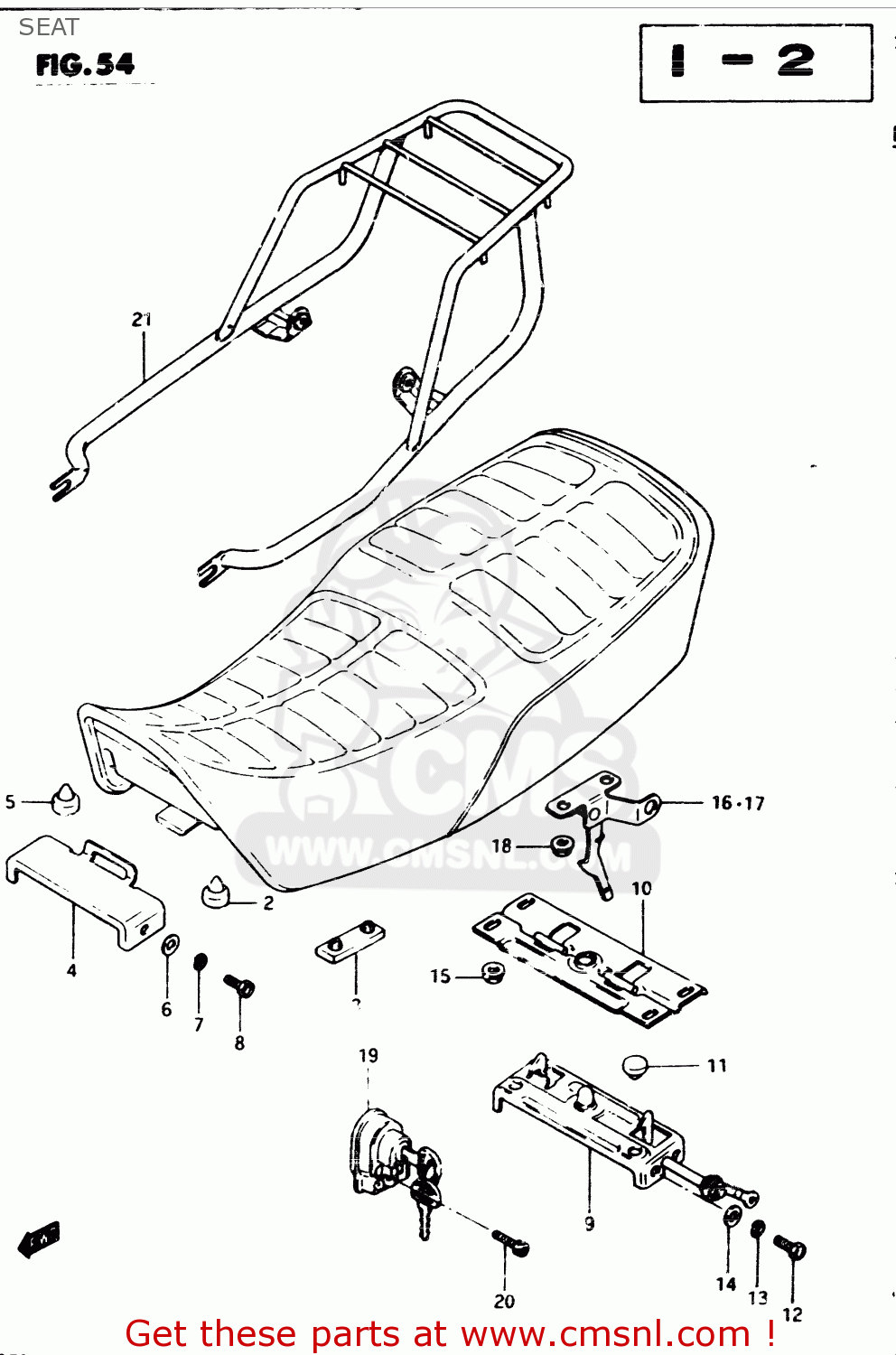

Seat diagram GSX250E 1983 (D) GENERAL EXPORT (E01)
SEAT GSX250E 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
451004441047T
ref: 1-1
MODEL Z
SEAT ASSY (BLACK)
€ 333.50
1-2
451004441048H
ref: 1-2
MODEL D
SEAT ASSY (BLACK)
€ 333.50
1-3
451004440047T
ref: 1-3
MODEL Z E4,E21,E22,E
SEAT ASSY (BLACK)
€ 333.50
1-4
451004440048H
ref: 1-4
MODEL D E4,E21,E22,E
SEAT ASSEMBLY
€ 333.50
2
0932106016
ref: 2
CUSHION
€ 2.00
3
0932108009
ref: 3
CUSHION
€ 4.00
4
4527144400
ref: 4
PLATE,SEAT LOCK,FRONT
€ 6.50
5
0932110002
ref: 5
CUSHION(11.5X22X20)
€ 2.00
6
0832221068
ref: 6
WASHER
€ 2.00
7
0832121068
ref: 7
LOCK WASHER
€ 2.50
8
0110706128
ref: 8
BOLT
€ 2.00
9
4522044400
ref: 9
PLATE,CLAMP GUIDE
€ 31.50
10
4512444400
ref: 10
PLATE,SEAT CLAMP GUIDE
€ 12.50
11
0932910001
ref: 11
CUSHION
€ 2.50
12
0211205108
ref: 12
SCREW
€ 2.00
13
0832121058
ref: 13
LOCK WASHER
€ 2.00
14
0832221058
ref: 14
WASHER
€ 2.50
15
0831616066
ref: 15
NUT
€ 2.50
16
4512944400
ref: 16
LEVER,SEAT HOOK,RIGHT
€ 18.00
17
4513044400
ref: 17
LEVER,SEAT HOOK,LEFT
€ 0.00
18
0831616066
ref: 18
NUT
€ 2.50
19
9570034210
ref: 19
LOCK ASSY,HELMET
€ 59.00
20
0910605008
ref: 20
BOLT 5X25
€ 2.00
21
4630044401
ref: 21
OPT
CARRIER
€ 95.50
