TURN SIGNAL LAMP (E18, E22, E26)

GSX250E 1983 (D) GENERAL EXPORT (E01)

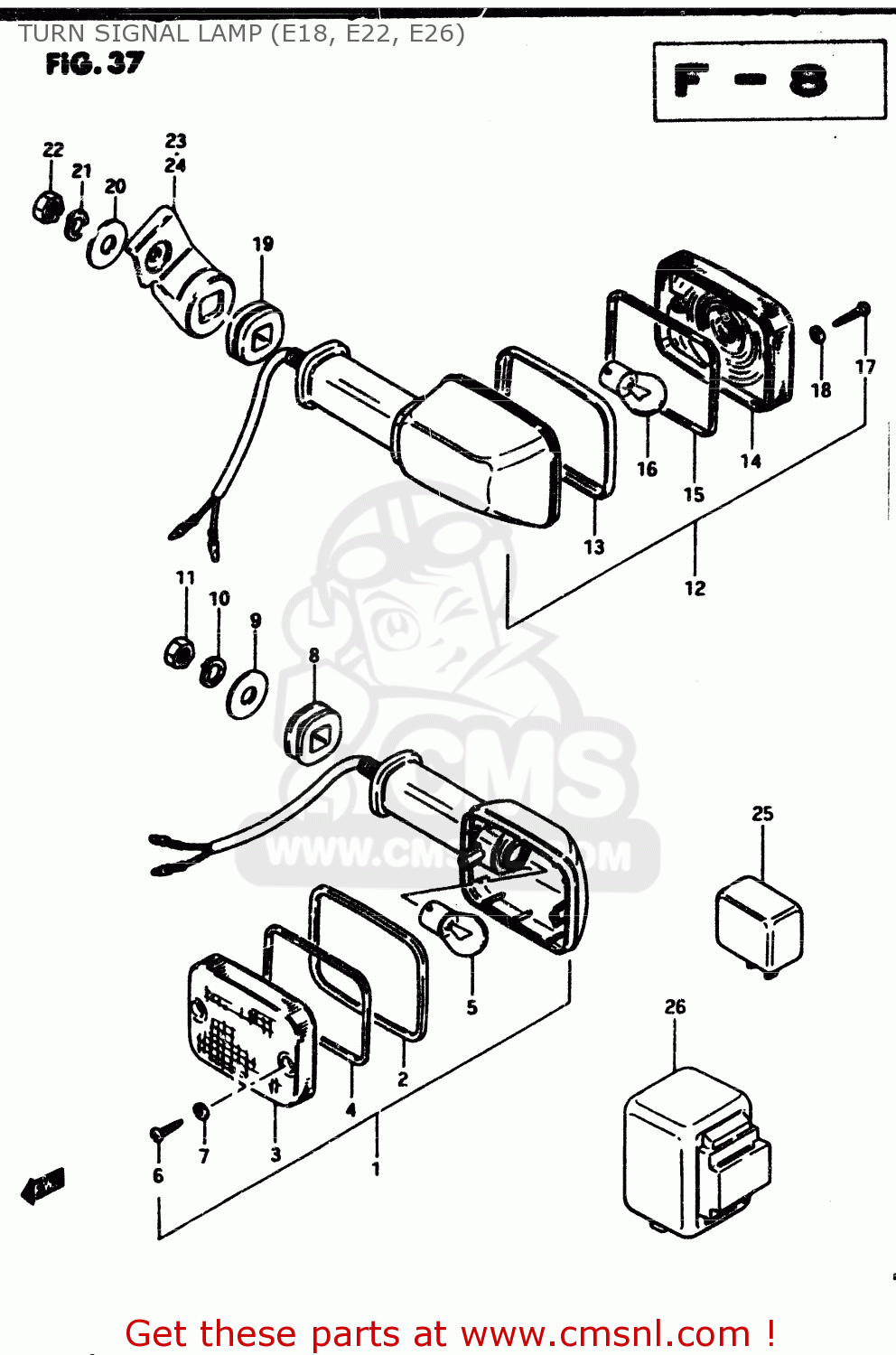

Turn signal lamp (e18, e22, e26) diagram GSX250E 1983 (D) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E18, E22, E26) GSX250E 1983 (D) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E18, E22, E26) GSX250E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

3560145581
ref: 1-1
GSX250EZ/ED

LAMP ASSY,FR T

€ 83.00

1-2

3560145521
ref: 1-2
GSX250ESD

LAMP ASSY,FR T

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112045
ref: 5
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8-1

0932015002
ref: 8-1
GSX250EZ/ED

CUSHION

€ 4.50

8-2

0932015004
ref: 8-2
GSX250ESD

CUSHION

€ 5.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560345581
ref: 12

LAMP ASSY,RR T

€ 68.50

13

3561149230
ref: 13

RIM

€ 11.00

14

3565244182
ref: 14

LENS

€ 13.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562111500
ref: 23

BRACKET,REAR TURN SIGNAL

€ 66.50

24

3564111500
ref: 24

BRACKET,REAR TURN SIGNAL

€ 43.50

25

3861045031
ref: 25
E18,E26

RELAY,TURN SIGNAL

€ 54.50

26

3861045090
ref: 26
E22

RELAY, TURN SIGNAL

€ 67.50
