CYLINDER

GSX250E 1983 (D) GENERAL EXPORT (E01)

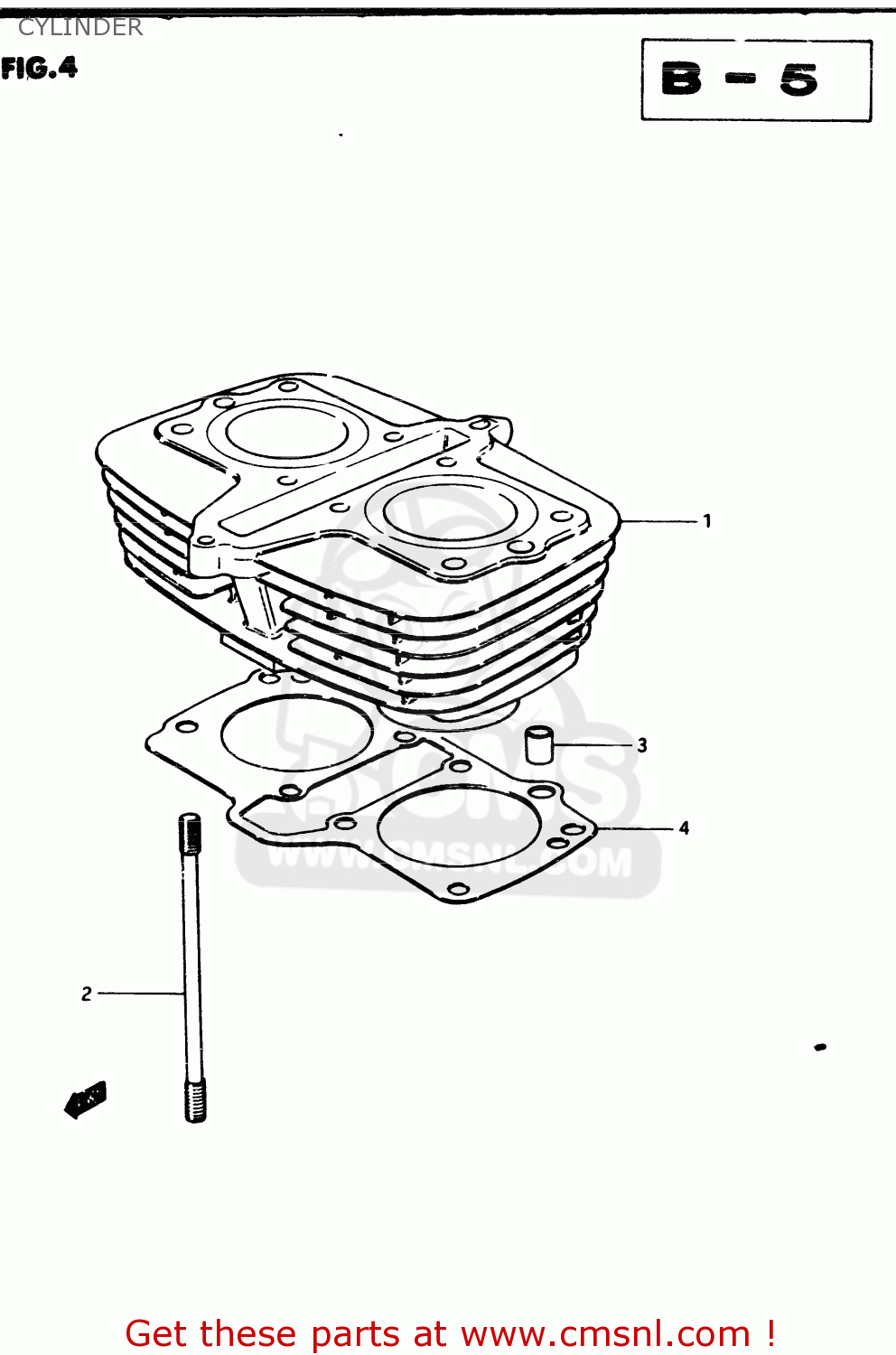

Cylinder diagram GSX250E 1983 (D) GENERAL EXPORT (E01)

CYLINDER GSX250E 1983 (D) GENERAL EXPORT (E01)
CYLINDER GSX250E 1983 (D) GENERAL EXPORT (E01)
CYLINDER GSX250E 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
1121011401
ref: 1-1
MODEL Z
CYLINDER
€ 514.50
1-2
1121011430
ref: 1-2
MODEL D
CYLINDER
€ 514.50
1-3
1121011420
ref: 1-3
GSX250EZ E4
CYLINDER
€ 0.00
1-4
1121011440
ref: 1-4
GSX250ED E4
CYLINDER
€ 0.00
2
0910808116
ref: 2
STUD
€ 8.50
3
0421111189
ref: 3
PIN
0421111189
€ 2.00
4-1
1124111400
ref: 4-1
GASKET,CYLINDER (MCA)
1124111400
€ 9.00
4-2
1124111410
ref: 4-2
E22
GASKET (T:1.0) (MCA)
€ 9.00
