CAM SHAFT - VALVE

GSX250ES 1983 (D) GENERAL EXPORT (E01)

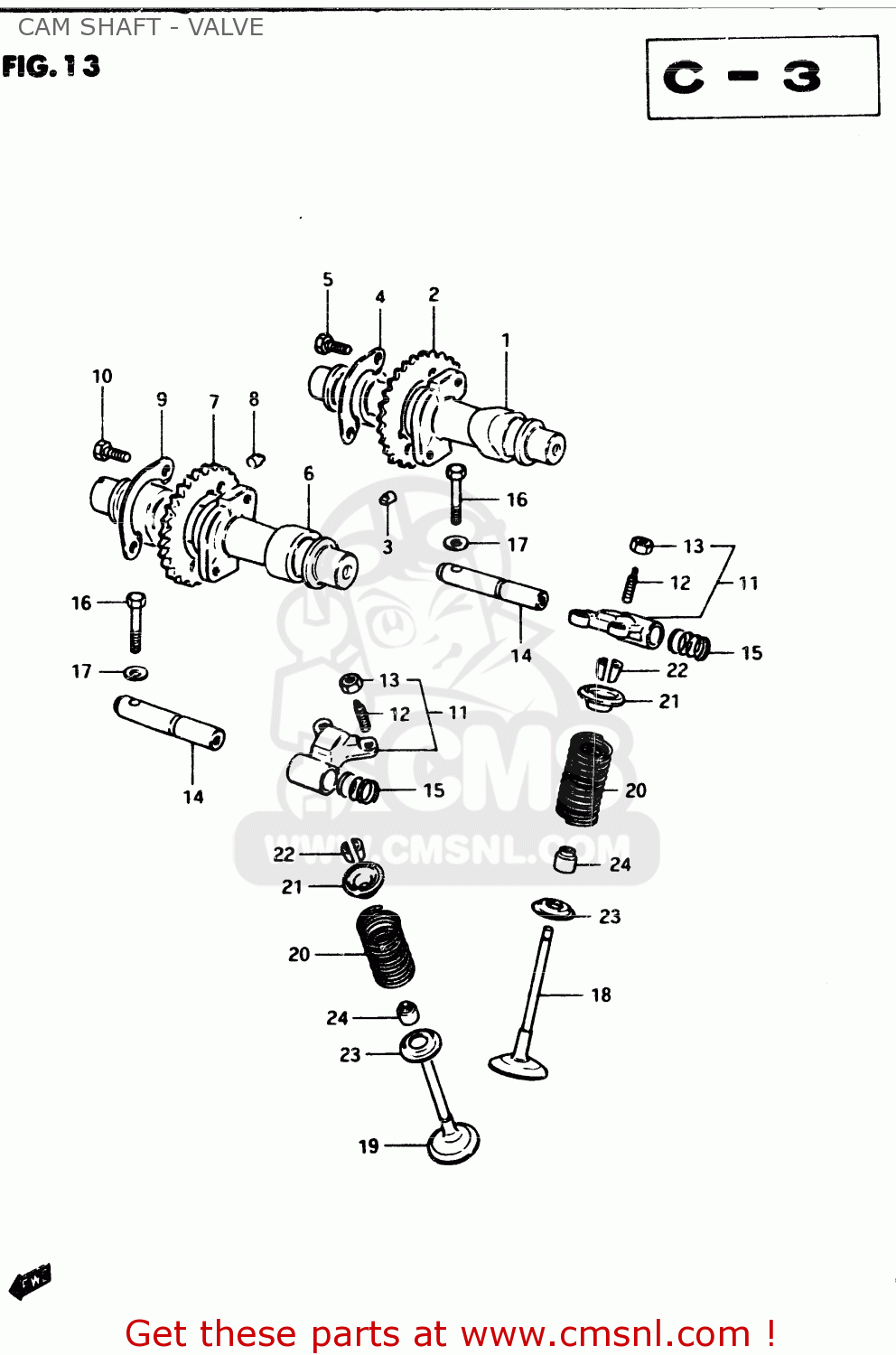

Cam shaft - valve diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX250ES 1983 (D) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GSX250ES 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1271111401
ref: 1-1

CAMSHAFT,INTAKE

€ 124.50

1-2

1271111900
ref: 1-2
E18

CAMSHAFT

€ 124.50

1-3

1271111411
ref: 1-3
E22

CAM SHAFT, INTAKE

€ 138.00

2

1274111401
ref: 2

SPROCKET,INTAKE CAMSHAFT

€ 33.50

3

1274844000
ref: 3

PIN,SPROCKET

€ 4.50

4

1274744000
ref: 4

WASHER,CAM CHAIN SPROCKET

€ 2.00

5

0911106027
ref: 5

BOLT(6X12.5)

€ 1.50

6-1

1272111401
ref: 6-1

CAMSHAFT,EXHAUST

€ 126.00

6-2

1272111900
ref: 6-2
E18

CAMSHAFT,EXHAUST

€ 126.00

6-3

1272111411
ref: 6-3
E22

CAM SHAFT, EXHAUST

€ 207.00

7

1275111401
ref: 7

SPROCKET,EXHAUST CAMSHAFT

€ 33.00

8

1274844000
ref: 8

PIN,SPROCKET

€ 4.50

9

1274744000
ref: 9

WASHER,CAM CHAIN SPROCKET

€ 2.00

10

0911106027
ref: 10

BOLT(6X12.5)

€ 1.50

11

1284011400
ref: 11

ARM,VALVE ROCKER

€ 62.00

12

1284249210
ref: 12

SCREW,TAPPET ADJUSTING

€ 5.50

13

1284349210
ref: 13

NUT,ADJUSTING

€ 3.00

14

1286044200
ref: 14

SHAFT,VALVE ROCKER ARM

€ 18.00

15

0944013014
ref: 15

SPRING

€ 2.50

16

0110706308
ref: 16

BOLT

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

1291111410
ref: 18

VALVE,INTAKE

€ 23.50

19

1291211410
ref: 19

VALVE,EXHAUST

€ 36.00

20

1292111410
ref: 20

SPRING,VALVE

€ 7.00

21

1293149200
ref: 21

RETAINER,VALVE SPRING

€ 5.50

22

1293249200
ref: 22

COTTER VALVE

€ 2.50

23

1293338200
ref: 23

SEAT,VALVE SPRING

€ 5.50

24

0928905003
ref: 24

OIL SEAL

€ 6.50
