TURN SIGNAL LAMP

GSX250ES 1983 (D) GENERAL EXPORT (E01)

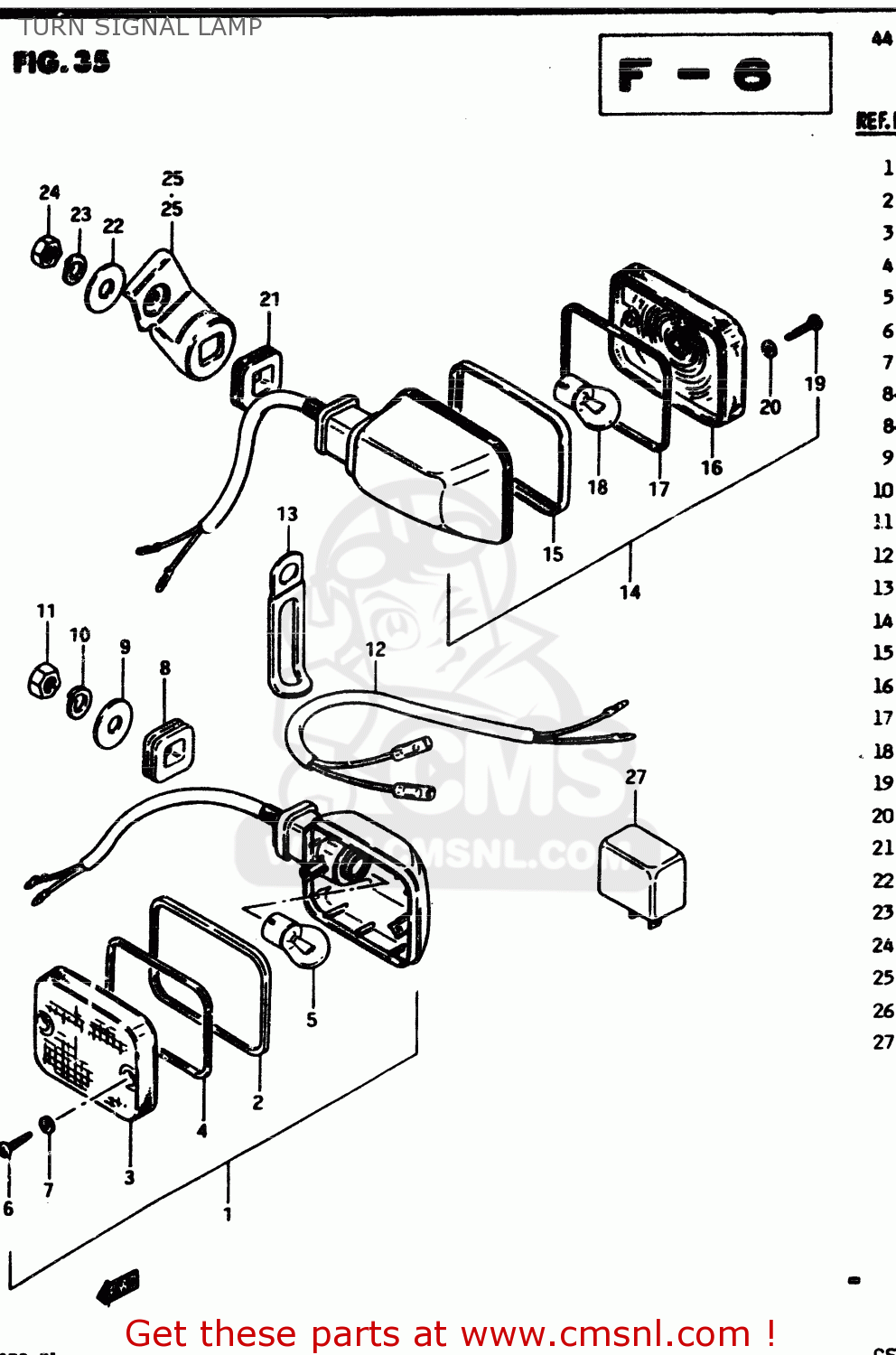

Turn signal lamp diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)

TURN SIGNAL LAMP GSX250ES 1983 (D) GENERAL EXPORT (E01)

TURN SIGNAL LAMP GSX250ES 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3560145510
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112006
ref: 5

BULB(12V23W,STANLEY,A4577A)

€ 4.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8-1

0932015002
ref: 8-1
GSX250Z/EZ/D/ED

CUSHION

€ 4.50

8-2

0932015004
ref: 8-2
GSX250SZ/ESZ/ESD

CUSHION

€ 5.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3685244400
ref: 12
GSX250SZ/ESZ

LEAD WIRE, TURN SIGNAL LAMP

€ 0.00

13

0940410403
ref: 13
GSX250SZ/ESZ/ESD

CLAMP

€ 2.50

14

3560145510
ref: 14

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 70.00

15

3561149230
ref: 15

RIM

€ 11.00

16

3561249231
ref: 16

LENS

€ 13.00

17

3561349230
ref: 17

GASKET (NAS)

€ 5.00

18

0947112006
ref: 18

BULB(12V23W,STANLEY,A4577A)

€ 4.00

19

0321104208
ref: 19

SCREW

€ 1.50

20

3562743010
ref: 20

GASKET (NAS)

€ 2.00

21

0932015004
ref: 21

CUSHION

€ 5.00

22

0916010006
ref: 22

WASHER (10.5X30X2.3)

€ 2.50

23

0832121108
ref: 23

LOCK WASHER

€ 2.00

24

0831012108
ref: 24

NUT

€ 2.50

25

3562111500
ref: 25

BRACKET,REAR TURN SIGNAL

€ 66.50

26

3564111500
ref: 26

BRACKET,REAR TURN SIGNAL

€ 43.50

27

3861045031
ref: 27

RELAY,TURN SIGNAL

€ 54.50
