REAR COMBINATION LAMP (E34)

GSX250ES 1983 (D) GENERAL EXPORT (E01)

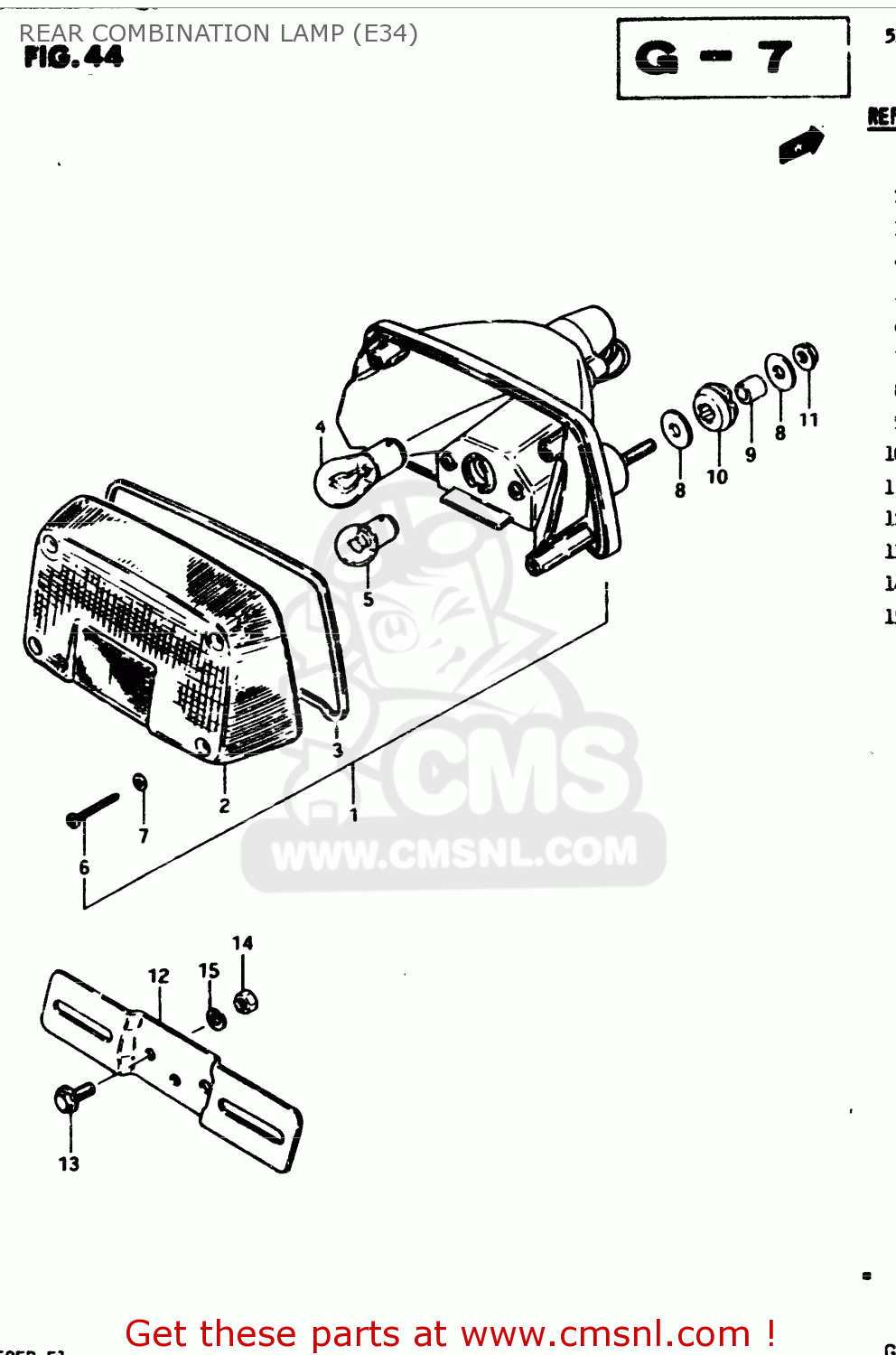

Rear combination lamp (e34) diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (E34) GSX250ES 1983 (D) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (E34) GSX250ES 1983 (D) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (E34) GSX250ES 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571011561
ref: 1
LAMP ASSY, REAR COMBINATION
€ 0.00
2
3571211591
ref: 2
LENS,REAR COMBINATION LAMP
3571211591
€ 59.50
3
3571311520
ref: 3
GASKET
3571311520
€ 5.50
4
0947112046
ref: 4
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
5
0947112059
ref: 5
EXECUTED LOCALLY
BULB
€ 4.00
6
0321104308
ref: 6
SCREW
0321104308
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0916006060
ref: 8
WASHER
0916006060
€ 2.00
9
0918006006
ref: 9
SPACER (6.8X10X11.5)
0918006006
€ 3.00
10
0932009010
ref: 10
CUSHION
0932009010
€ 2.50
11
0831626068
ref: 11
NUT 6MM
0831626068
€ 2.00
12
3592733200
ref: 12
BRACKET, LICENSE PLATE
€ 10.00
13
0151706168
ref: 13
BOLT
€ 1.50
14
0831011068
ref: 14
NUT
0831011068
€ 2.50
15
0832121068
ref: 15
LOCK WASHER
0832121068
€ 2.50
