FRAME COVER (MODEL D)

GSX250ES 1983 (D) GENERAL EXPORT (E01)

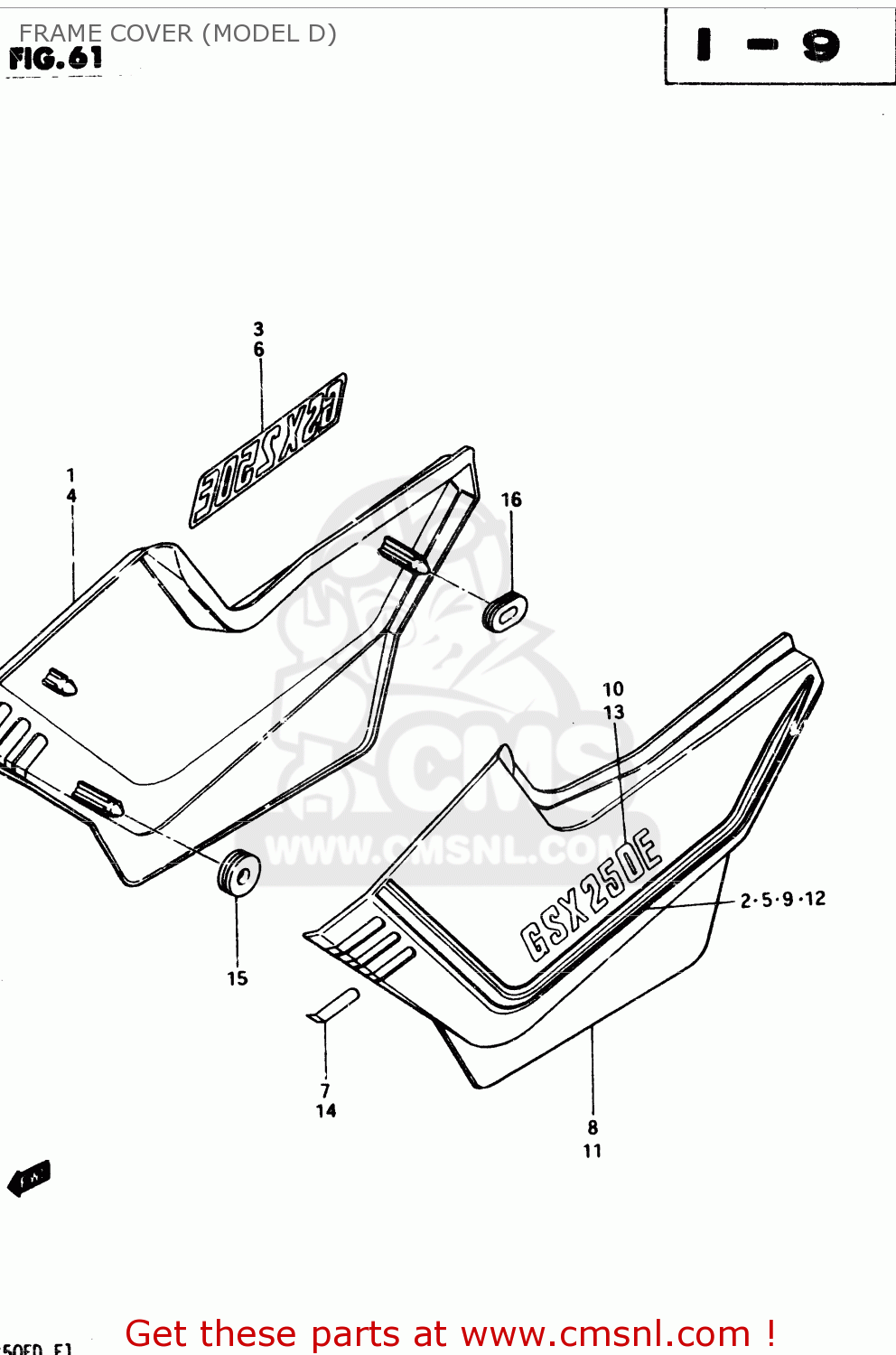

Frame cover (model d) diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)

FRAME COVER (MODEL D) GSX250ES 1983 (D) GENERAL EXPORT (E01)

FRAME COVER (MODEL D) GSX250ES 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

471104440000J
ref: 1

COVER, FRAME RH (RED)

€ 60.00

2

681304440070B
ref: 2

TAPE SET, FRAME COVER RH

€ 0.00

3

681311151060D
ref: 3

EMBLEM, LH

€ 4.50

4

4711044400737
ref: 4

COVER, FRAME RH (SILVER)

€ 60.00

5

681304440090S
ref: 5

TAPE SET, FRAME COVER RH

€ 15.00

6

681311151065H
ref: 6

EMBLEM

€ 4.50

7

6813444400
ref: 7

LABEL,FRAME COVER DENT

€ 2.50

8

472104440000J
ref: 8

COVER,FRAME,L

€ 68.50

9

681404440070B
ref: 9

TAPE SET, FRAME COVER LH

€ 14.50

10

681311151060D
ref: 10

EMBLEM, LH

€ 4.50

11

4721044400737
ref: 11

COVER, FRAME LH (SILVER)

€ 68.50

12

681404440090S
ref: 12

TAPE SET, FRAME COVER LH

€ 13.50

13

681311151065H
ref: 13

EMBLEM

€ 4.50

14

6814444400
ref: 14

LABEL,FRAME COVER

€ 2.00

15

0932008018
ref: 15

CUSHION

€ 4.00

16

0932908003
ref: 16

CUSHION

€ 3.50
