HEADLAMP
GSX250ES 1983 (D) GENERAL EXPORT (E01)

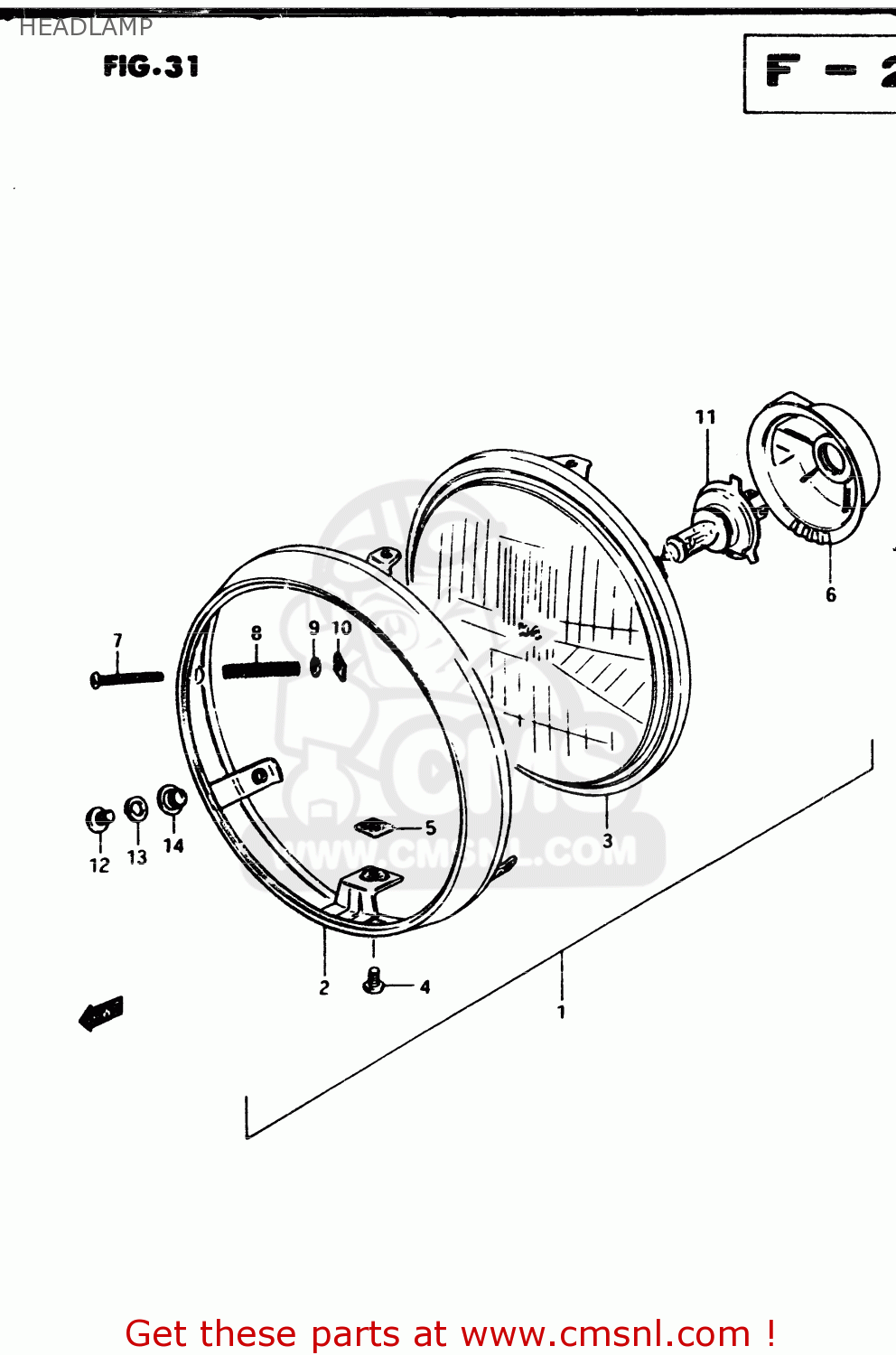

Headlamp diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)
HEADLAMP GSX250ES 1983 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510033230999
ref: 1
HEADLAMP ASSEMBLY
€ 0.00
2
3511133240
ref: 2
RIM
€ 40.50
3
3512133230
ref: 3
LAMP UNIT
€ 108.00
4
0211205088
ref: 4
SCREW
€ 2.00
5
3513512610
ref: 5
NUT,ADJUSTING
€ 2.00
6
3517345200
ref: 6
COVER,SOCKET
€ 14.00
7
3515133240
ref: 7
SCREW,HEADLAMP ADJUST
€ 3.50
8
3515448510
ref: 8
SPRING
€ 2.50
9
3515727630
ref: 9
WASHER
€ 2.50
10
3515248510
ref: 10
NUT,HEADLAMP ADJUSTER
€ 3.00
11
0947112060
ref: 11
EXECUTED LOCALLY
BULB(12V60/55W,H4)
€ 8.00
12
0912505022
ref: 12
SCREW
€ 3.50
13
0916205003
ref: 13
WASHER,LOCK
€ 2.00
14
0916906021
ref: 14
WASHER
€ 2.50
