CRANKCASE COVER (MODEL D)

GSX250ES 1983 (D) GENERAL EXPORT (E01)

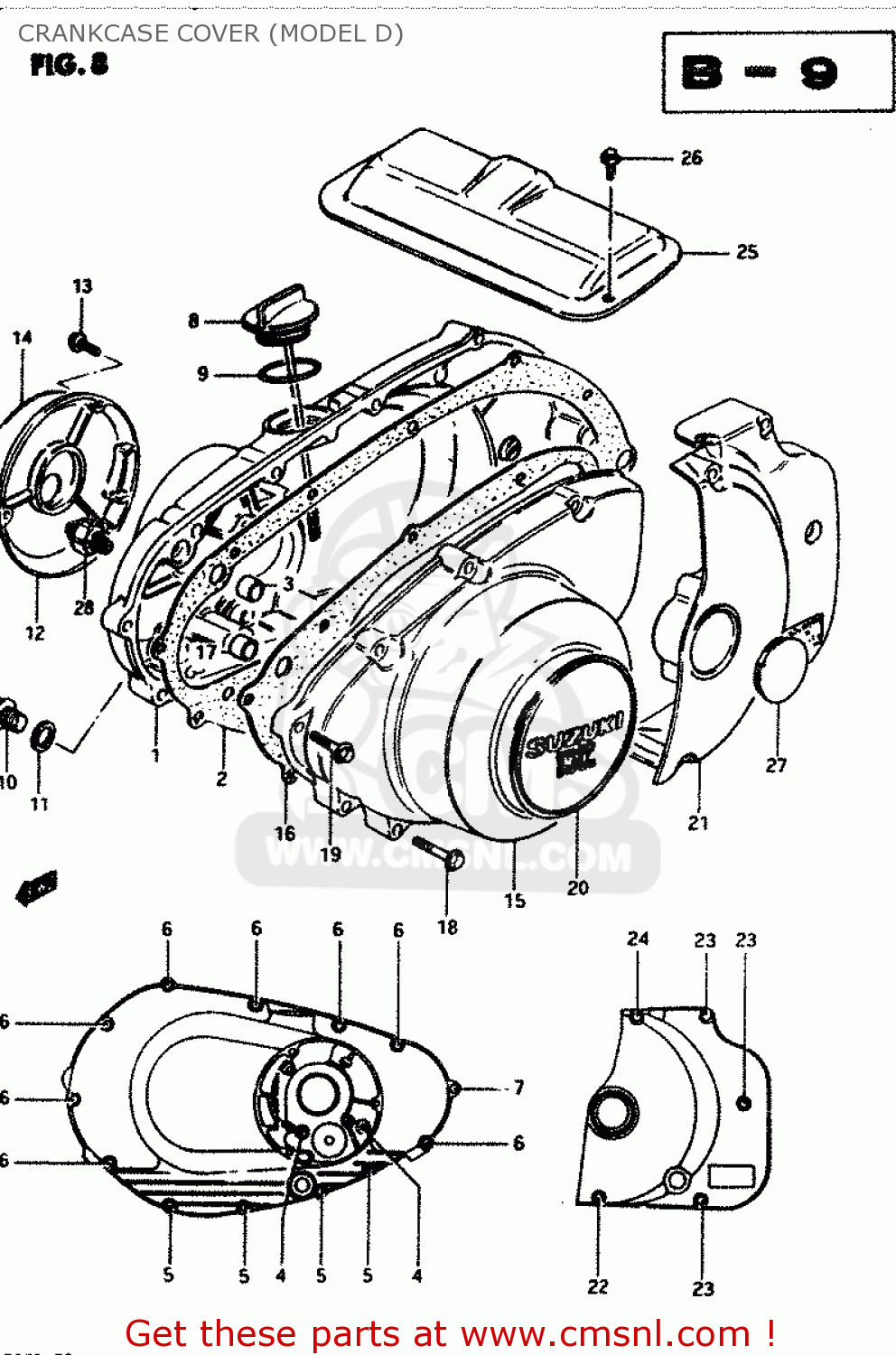

Crankcase cover (model d) diagram GSX250ES 1983 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL D) GSX250ES 1983 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL D) GSX250ES 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1134111411
ref: 1

COVER, CLUTCH

€ 103.00

2

1148211400
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 19.00

3

0920613001
ref: 3

PIN

€ 2.50

4

0154706505
ref: 4

BOLT 6X50

€ 3.50

5

0154706454
ref: 5

BOLT

€ 3.00

6

0154706354
ref: 6

BOLT 6X35

€ 3.00

7

0154706254
ref: 7

BOLT 6X25

€ 2.50

8

1197011410
ref: 8

GAUGE, OIL LEVEL

€ 10.50

9

0928027002
ref: 9

O-RING

€ 3.00

10

0924714012
ref: 10

PLUG (14X12)

€ 3.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12

1138111410
ref: 12

COVER, CONTACT BREAKER

€ 38.00

13

0154705205
ref: 13

BOLT

€ 0.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

1135111412
ref: 15

COVER, GENERATOR

€ 94.00

16

1148311400
ref: 16

GASKET,MAGNETO COVER (MCA)

€ 13.00

17

0920613001
ref: 17

PIN

€ 2.50

18

0154706304
ref: 18

BOLT 6X30

€ 2.50

19

0154706254
ref: 19

BOLT 6X25

€ 2.50

20

6823549500
ref: 20

EMBLEM

€ 21.50

21

1136111412
ref: 21

COVER, ENGINE SPROCKET

€ 62.00

22

0154706605
ref: 22

BOLT (6X60)

€ 3.50

23

0154706404
ref: 23

BOLT 6X40

€ 3.00

24

0154706304
ref: 24

BOLT 6X30

€ 2.50

25

1138211910
ref: 25

COVER,STARTER MOTOR

€ 22.50

26

0154705084
ref: 26

BOLT

€ 2.50

27

0925030003
ref: 27

CAP(OD:36)

€ 4.00

28

3782033200
ref: 28

SWITCH ASSEMBLY

€ 29.00
