BATTERY

GSX400S 1985 (F) GENERAL EXPORT (E01)

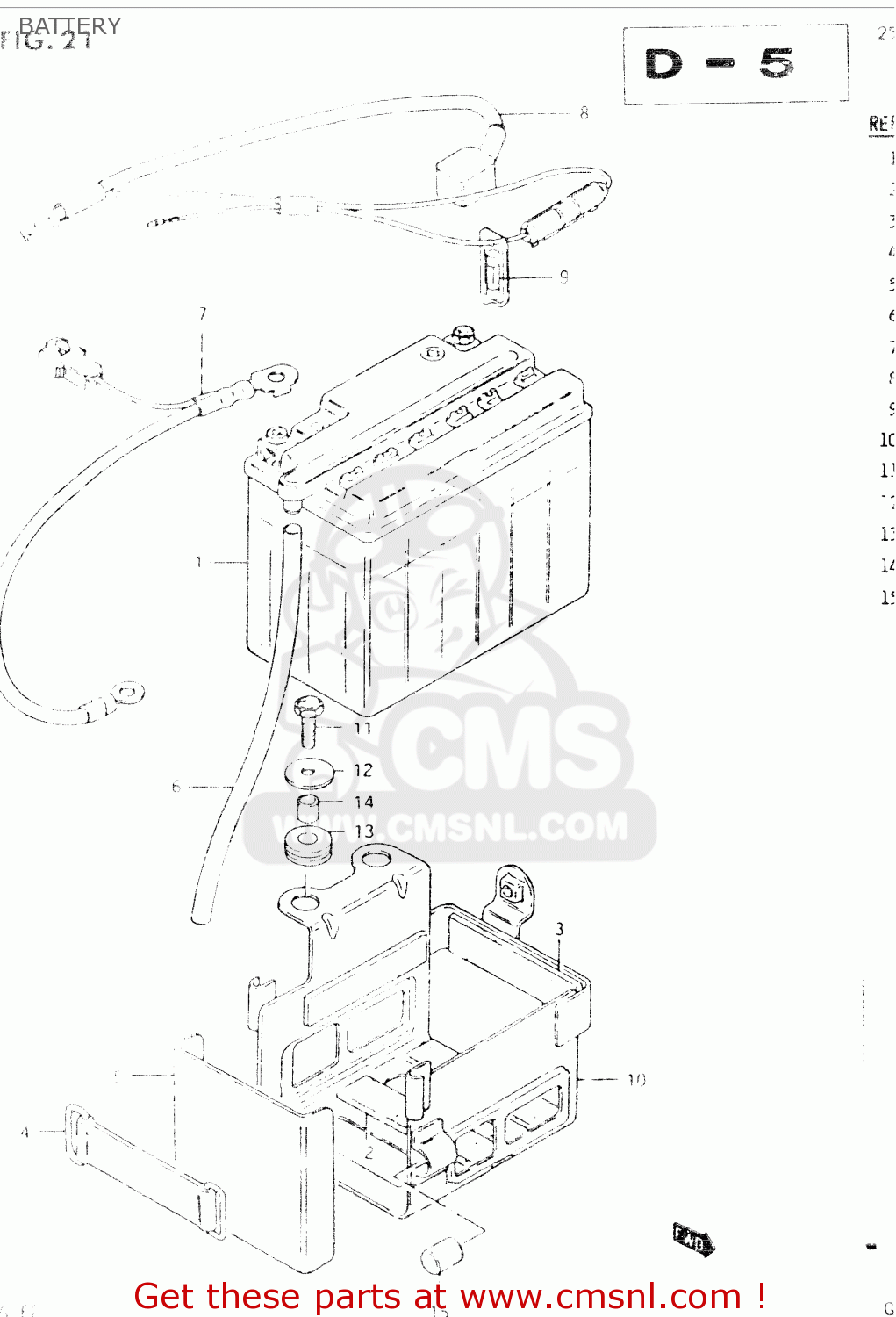

Battery diagram GSX400S 1985 (F) GENERAL EXPORT (E01)

BATTERY GSX400S 1985 (F) GENERAL EXPORT (E01)

BATTERY GSX400S 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3361011010
ref: 1

BATTERY(YB12B-B2,12V11.6A)

€ 93.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

4

0946200008
ref: 4

BAND

€ 4.50

5

3366144101
ref: 5

COVER,BATTERY

€ 4.50

6

3368031003
ref: 6

HOSE,BATTERY EXHAUST

€ 4.50

7

3386044500
ref: 7

WIRE,BATTERY MINUS

€ 13.50

8

3674044501
ref: 8
FROM 36740-44500

CASE ASSY,FUSE (WITH CABLE)

€ 19.00

9

0948115001
ref: 9

FUSE(15A)

€ 3.00

10

4154011500
ref: 10

HOLDER,BATTERY

€ 31.00

11

0110706206
ref: 11

BOLT,M6X1X20

€ 2.00

12

0916006057
ref: 12

WASHER

€ 2.00

13

0932008001
ref: 13

CUSHION

€ 3.50

14

0918006038
ref: 14

SPACER(6.1X9X7.5)

€ 2.00

15

0932905006
ref: 15

CUSHION

€ 2.00
