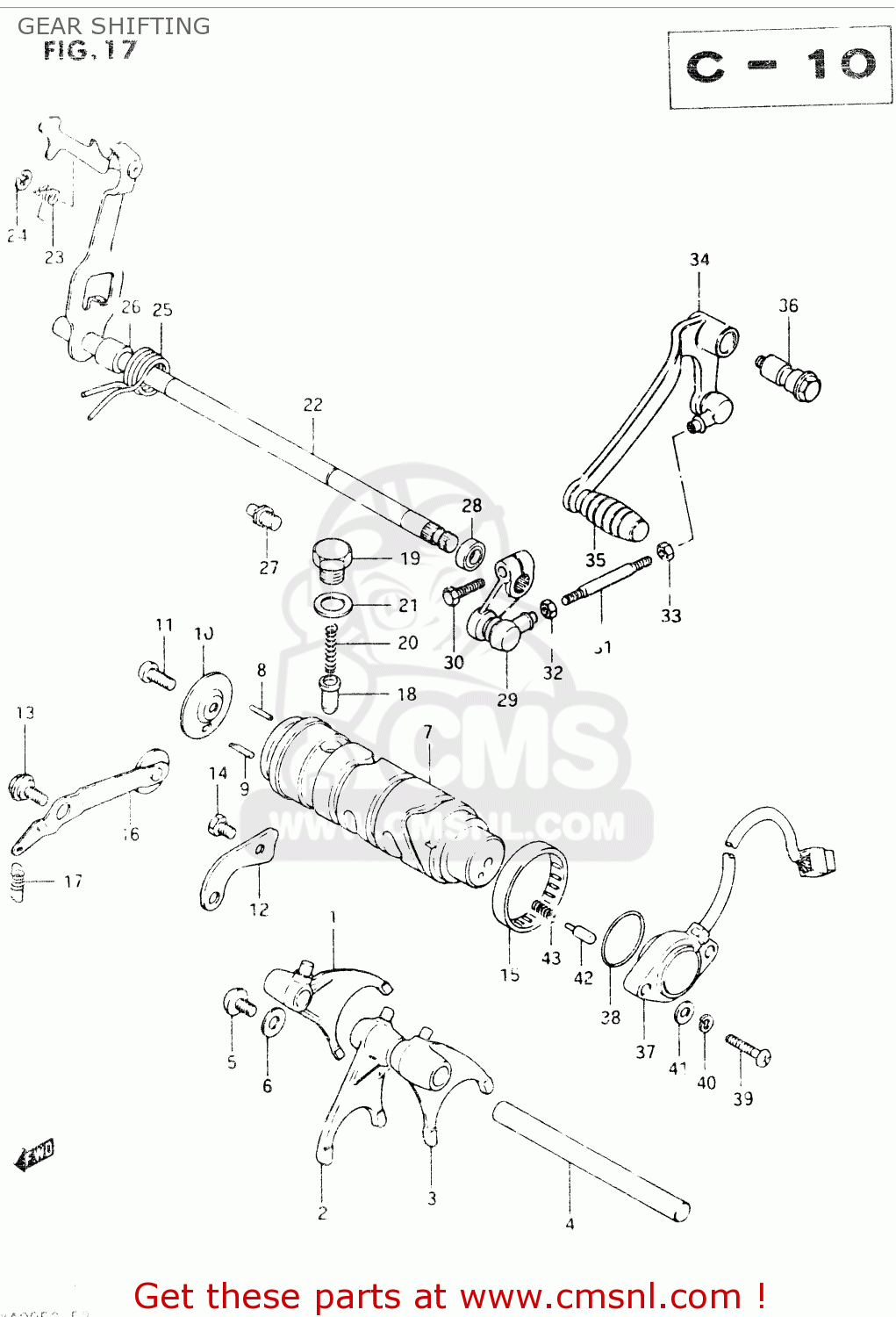

GEAR SHIFTING

ref

part #

description

quantity

1

2521144001
ref: 1

FORK,GEAR SHIFT NO.1

€ 70.00

2

2522144001
ref: 2

FORK,GEAR SHIFT NO.2

€ 74.50

3

2523144000
ref: 3

FORK,GEAR SHIFT NO.2

€ 74.50

4-1

2541131000
ref: 4-1
MODEL E

SHAFT,GEAR SHIFT FORK

€ 14.50

4-2

2541131301
ref: 4-2
MODEL F/G

SHAFT,GEAR SHIFT FORK

€ 14.50

5

0214206108
ref: 5

SCREW

€ 2.00

6

0821106141
ref: 6

WASHER

€ 2.50

7

2531147001
ref: 7

CAM,GEAR SHIFT

€ 68.50

8

0926104001
ref: 8

PIN(4X18.5)

€ 1.50

9

0920904013
ref: 9

PIN

€ 5.00

10

2532244000
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

11

0211206168
ref: 11

SCREW

€ 2.50

12

2534133300
ref: 12
FROM 25341-44000

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0911106019
ref: 13

BOLT

€ 1.50

14

0110706168
ref: 14

BOLT, UPPER

€ 3.00

15

0926340001
ref: 15

BEARING(40X47X12)

€ 21.00

16

2535044000
ref: 16

STOPPER,GEAR SHIFT CAM NO.1

€ 10.50

17

0944309007
ref: 17

SPRING

€ 14.50

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006020
ref: 20

SPRING

€ 14.00

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2551044100
ref: 22

SHAFT,GEAR SHIFT

€ 83.50

23

0944813008
ref: 23

SPRING

€ 7.00

24

0833211078
ref: 24

E RING

€ 2.00

25

0944426012
ref: 25

SPRING

€ 3.50

26

0918012068
ref: 26

SPACER(12X20X15.3)

€ 3.00

27

2567101000
ref: 27

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0928512002
ref: 28

OIL SEAL

€ 7.00

29

2552047020
ref: 29

ARM,GEAR SHIFT LINK

€ 53.50

30

0110706208
ref: 30

BOLT

€ 2.00

31

2552533200
ref: 31

ROD,GEAR SHIFT LINK

€ 6.00

32

0831011068
ref: 32

NUT

€ 2.50

33

0914006011
ref: 33

NUT

€ 1.50

34

2560033210
ref: 34

LEVER ASSY,GEAR SHIFT

€ 57.00

35

2565216500
ref: 35

RUBBER,GEAR SHIFT PEDAL

€ 4.00

36

2561744101
ref: 36

SHAFT,GEAR SHIFT LEVER

€ 9.00

37

3772033200
ref: 37

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

38

0928026003
ref: 38

O-RING (D:2.4 ID:26.2)

€ 2.50

39

0211205206
ref: 39

SCREW

€ 2.50

40

0832121056
ref: 40

LOCK WASHER

€ 3.00

41

0832221056
ref: 41

WASHER

€ 2.50

42

0920905011
ref: 42

PIN(5X15.5)

€ 2.00

43

0944004010
ref: 43

SPRING

€ 1.50

all assemblies
